Operating Temperature (-40 to 80°C)
Relative Humidity (5 to 95% non-condensing).png)

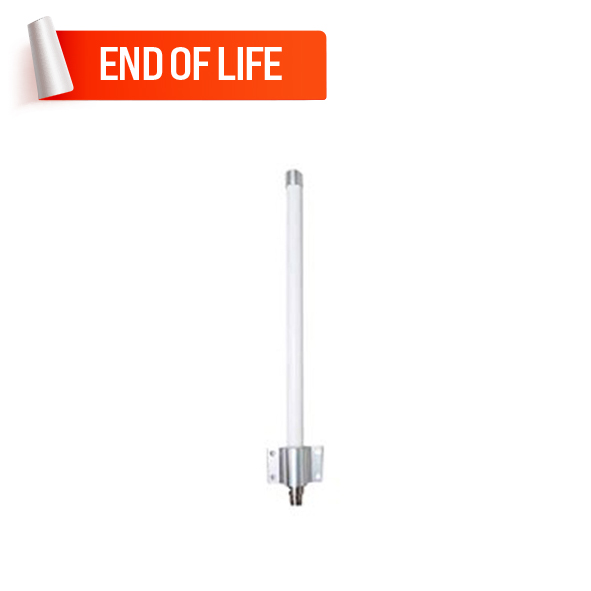

IP protection (IP65)The ANT-WSB5-ANF-12 is an omnidirectional lightweight compact high-gain antenna that comes with an N-type (female) connector. The antenna provides a gain of 12 dBi at 5 GHz. A wide operating temperature range of -40 to 80°C, IP65-rated housing, and pole-mounting support make it suitable for outdoor use.
End of Life Product - Replacement Available
Please note that the ANT-WSB5-ANF-12 Series has been phased
out, and replaced by the ANT-WDB-ONF-0709 Series.
Inquire about the MOXA ANT-WSB5-ANF-12 WLAN Antenna, designed for industrial automation solutions. Feel free and get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
| Antenna : Antenna Characteristics | |
| Frequency | 5.1 to 5.9 GHz |
| Antenna Type | Omni-directional |
| Antenna Gain | 12 dBi |
| Connector | N-type (female) |
| Impedance | 50 ohms |
| HPBW/Horizontal | 360° |
| HPBW/Vertical | 6° |
| Polarization | Linear |
| Power Handling | 10 W (max.) |
| V.S.W.R. | 1:1.3 max. |
| Antenna : Physical Characteristics | |
| Dimensions | - |
| Operating Temperature | -40 to 80°C (-40 to 176°F) |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Length | 420 mm (16.53 in) |
| Cable Length | - |
| Weight | 430 g (0.95 lb) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| Housing | Fiberglass |
| Installation | Pole mount |
| IP Rating | IP65 |
