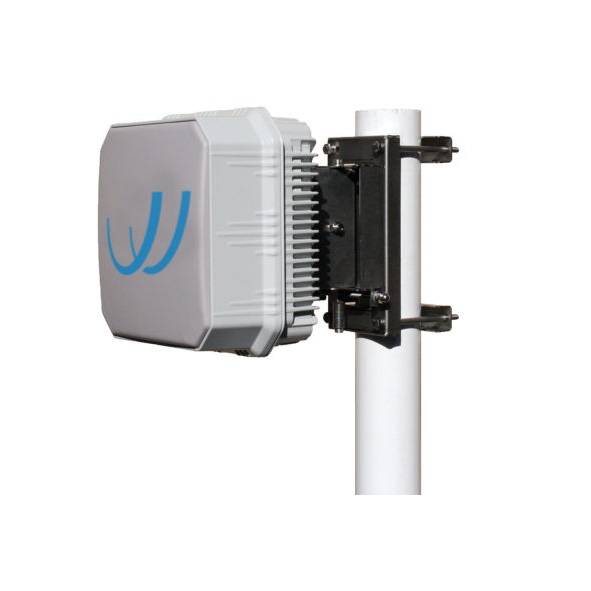

Name: Bridgewave Flex4G-1000 (ETSI) 80GHz Millimeter Wave Radio
Brand: BRIDGEWAVE
Availability: InStock

Bridgewave Flex4G-1000 (ETSI) 80GHz Millimeter Wave Radio

Spectrum efficient using 64QAM in 250, 500, and 750MHz wide channels
Full-duplex providing up to 1Gbps upstream and downstream
Hitless adaptive rate and modulation
QPSK/8PSK/16/32/64QAM modulation support
Highest system gain
Internal carrier grade L2 switch
SyncE and IEEE1588v2 compliant
Power over Ethernet
Compact integrated 20cm antenna available (38 dBi) for ETSI deployments
Extreme ranges supported with optional 30cm (43.8dBi), 60cm (51dBi), and 90cm (54dBi) external slip-fit antennas
Small form factor and lightweight
Quick and simple deployment

Brand: BRIDGEWAVE
Model: Flex4G-1000 (ETSI)

0 reviews • Write a review

Datasheet

Operating Temperature (-50 to 60°C)
IP protection (IP67)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

The BridgeWave Flex4G-1000 is an ultra-low-cost 70/80GHz millimeter wave system delivering 1Gbps full-duplex data throughput per radio and the highest system gain of any 80GHz radio on the market. Available in both ANSI and ETSI versions, the Flex4G-1000 is ideal for wireless internet service providers (ISPs) and others seeking gigabit connectivity with carrier-class features and ease of installation at industry-leading price points.

Lightweight and ultra-compact to minimize installation and connectivity costs, the Flex4G-1000 features carrier-grade Ethernet switch functionality, hitless adaptive rate modulation, and ultra-low power consumption with support for both POE and direct DC power feed.

You can place an order for the Bridgewave Flex4G-1000 (ETSI) 80GHz Millimeter Wave Radio online via one of our Middle East branches (Dubai/Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Millimeter Wave Radio : Interface
Ethernet	2 x 1GbE SFPs + 4 x RJ45 10/100/1000Base-T
Millimeter Wave Radio : Ethernet
Max Packet Size	9600 bytes (Jumbo Frame Compatible)
Ethernet Timing and Synchronization	SyncE (G.8261), IEEE 1588v2 (Transparent Clock)
Features	IPv6, IPv4 L2- 8192 MAC Address 4096 VLAN (IEEE 802.1Q) VLAN tag translation on ingress or egress Provider Bridging (IEEE 802.1ad, Q-in-Q) RSTP / MSTP
Classification	8 QoS queues per port with SP or DWRR scheduling TCAM classification and remarking DSCP translation, ingress, and egress Per Queues and Per Port policing and shaping Full Duplex Flow control
Protection	ITU-T G.8032 Ring
OAM	ITU-T Y.1731
Millimeter Wave Radio : General
Data Throughput Rate	Up to 1000Mbps per 1+0 terminal, Up to 2000Mbps per 2+0 terminal
Configurations	1+0 Non-Protected; 2+0 Dual Path Transmission utilizing Orthogonal Mode Transducer, OMT
Frequency Range	71-76GHz / 81-86GHz
Air Interface	Full Duplex FDD
RF Channel Tuning	Frequency Agile in 125MHz steps
Channel Bandwidths	250, 500, and 750MHz
Management	In-Band
Latency	<50µs @ 64QAM with 1024byte packets
Modulation	QPSK/8PSK/32QAM/64QAM Hitless Adaptive Code and Modulation
Antennas	Integrated 20 cm, 38 dBi gain, 0.8˚ beamwidth External 30 cm, 43.8dBi gain, 0.9˚ beamwidth External 60 cm, 51 dBi gain, 0.4˚ beamwidth External 90 cm, 54 dBi gain, 0.3˚ beamwidth
Security	Inherently secure ultra-narrow beamwidth antennas for low probability of detection and interception Option: FIPS-197 compliant 256-bit AES Encryption (export controlled)
Link Budget	Up to 203dB with 90cm/36inch antenna Up to 197dB with 60cm/24inch antenna Up to 182.6dB with 30cm/12inch antenna
Millimeter Wave Radio : Physical Characteristics
Input Power Requirements	-48VDC, PoE, 30W typical (32W Max) power consumption
Weight	2.9kg / 6.4lb (with integrated antenna)
Temperature Range	-50°C to +60°C (-58° to +140° F)
IP Rating	IP67 / All Weather
Safety	IEC 60950-1, -22
Regulatory RF Certification	US FCC Part 101, FCC Part 15B; ETSI EN 302 217-3
