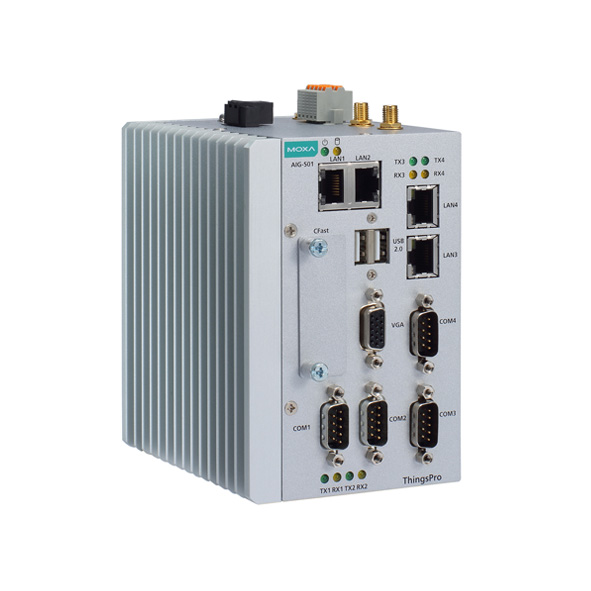

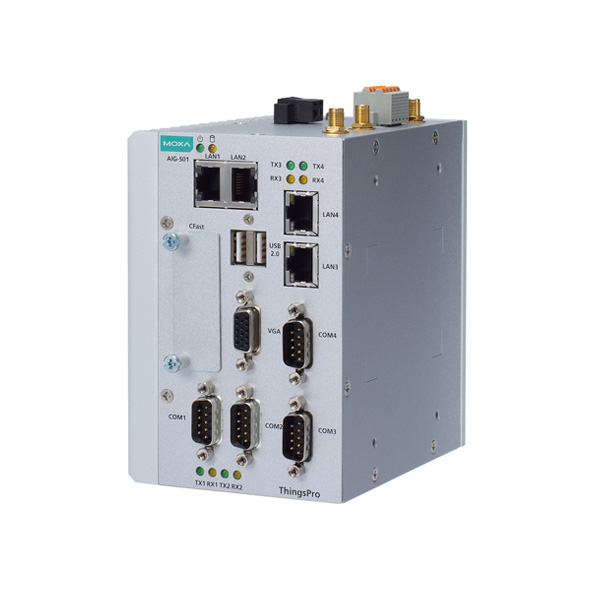

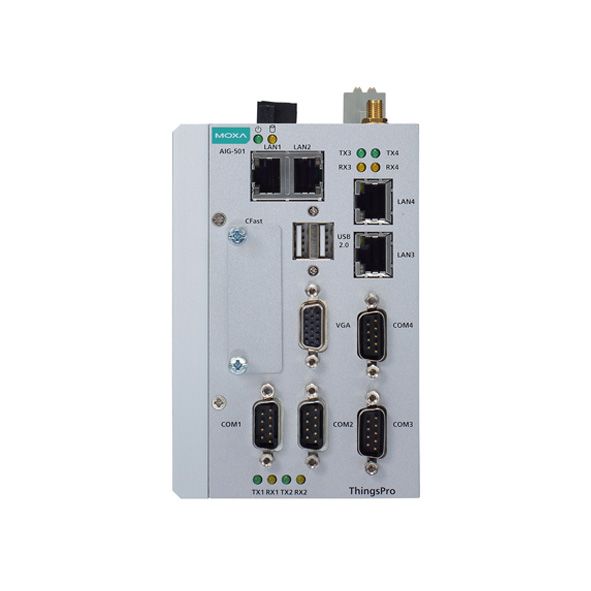

MOXA AIG-501-T-US-AZU-LX Advanced IIoT Gateway

MOXA AIG-501-T-US-AZU-LX Advanced IIoT Gateway
MOXA AIG-501-T-US-AZU-LX Advanced IIoT Gateway
MOXA AIG-501-T-US-AZU-LX Advanced IIoT Gateway
MOXA AIG-501-T-US-AZU-LX Advanced IIoT Gateway
MOXA AIG-501-T-US-AZU-LX Advanced IIoT Gateway
MOXA AIG-501-T-US-AZU-LX Advanced IIoT Gateway
MOXA AIG-501-T-US-AZU-LX Advanced IIoT Gateway

  • Pre-installed US region LTE module
  • CPU: Intel Atom® Processor E3845
  • Pre-installed Linux Debian 9 Kernel 4.9
  • 4 x 10/100/1000 Mbps Ethernet ports
  • 4 x RS-232/422/485 Serial ports
  • IP20-rated Metal body design
  • DIN-rail and Wall mounting
  • 12 to 48 VDC input power range
  • -40 to 70°C operating temperature range

  • Brand: MOXA
  • Model: AIG-501-T-US-AZU-LX
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-64)
  • IP protection (IP20)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Innovaphone IP111 Desktop IP phones
Quickview
Innovaphone IP111 Desktop IP phones
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Innovaphone IP112 Desktop IP phones
Quickview
Innovaphone IP112 Desktop IP phones
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Innovaphone IP1202 IP DECT Gateway
Quickview
Innovaphone IP1202 IP DECT Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Computing , Arm-Based Computers , Industrial Computers , IIoT Gateways , Programmable IIoT Gateways , IIoT , Gateways , Computers , Compact/Fanless Computers , Industrial Computing Solutions , Oil & Gas , Oil & Gas Products , MOXA AIG-501 Series

AIG-501 Series advanced IIoT gateways are designed for Industrial IoT applications, especially for distributed and unmanned sites in harsh operating environments. The gateways implement Modbus RTU/TCP master/client protocols which can help you to effortlessly collect data from Modbus devices. Moreover, Azure IoT Edge software is preloaded and seamlessly integrated with the AIG-501 to enable easy, reliable, yet secure sensor-to-cloud connectivity for data acquisition and device management using the Azure Cloud solution. With the use of the ThingsPro Proxy utility, the device provisioning process is easier than ever. Thanks to the robust OTA function, you never have to worry about system failure during software upgrades. With the Secure Boot function enabled, you can prevent malicious software injection attacks, especially during the boot-up process.



You can also find the AIG-501-T-EU-AZU-LX, AIG-501-T-AP-AZU-LX, and AIG-501-T-AZU-LX models in the Compact/Fanless Computers.


Inquire about the MOXA AIG-501-T-US-AZU-LX Advanced IIoT Gateway, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).


IIOT GATEWAYS : COMPUTER
CPUIntel Atom® Processor E3845 (2M Cache, 1.91 GHz)
DRAM4 GB DDR3L
Storage Slot32 GB CFast eMMC
Operating SystemMoxa Industrial Linux (Debian 9, Kernel 4.9)
Graphics ControllerIntel® HD Graphics
IIOT GATEWAYS : COMPUTER INTERFACE
Expansion Slots-
TPMTPM v2.0
CAN Ports-
Digital Input/Output Channels4 x Digital inputs, 4 x Digital outputs (Spring-type Euroblock terminal connector)
USBUSB 2.0 hosts x 2, type-A connectors
Wi-Fi Antenna-
Cellular Antenna2 x SMA
GPS Antenna1 x SMA
SIM Slot1 x mini slot
ButtonsReboot, Reset to factory default
IIOT GATEWAYS : ETHERNET INTERFACE
Magnetic Isolation Protection1.5 kV (built-in)
Ethernet Ports4 x 10/100/1000 Mbps ports (RJ45 connector)
IIOT GATEWAYS : SERIAL INTERFACE
Number of Ports4 x RS-232/422/485 Ports (DB9 male connector)
Console Port1 x 4-pin header DB9 female
Baudrate300 bps to 921.6 kbps
Data Bits7, 8
Flow ControlADDC (automatic data direction control) for RS-485
ParityEven, Odd, Space, Mark, None
Isolation None
Stop Bits1, 2
Serial SignalsRS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND), RS-422 (Tx+, Tx-, Rx+, Rx-, GND), RS-485-2w (Data+, Data-, GND), RS-485-4w (Tx+, Tx-, Rx+, Rx-, GND)
IIOT GATEWAYS : INDUSTRIAL PROTOCLS
ProtocolsEthernet: Modbus TCP Client (Master), Generic MQTT, Azure IoT Device, AWS IoT Core, Azure IoT Edge, OPC UA Server, Sparkplug B Client; Serial: Modbus RTU/ASCII Master; Azure: MQTT, MQTT over WebSockets, AMQP, AMQP over WebSockets
IIOT GATEWAYS : CELLULAR INTERFACE
Cellular StandardsLTE Cat. 4
Band Options (US)LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz)/ LTE Band 71 (600 MHz)1 UMTS/HSPA Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) Carrier Approval: Verizon, AT&T
Band Options (EU)-
Band Option (APAC)-
IIOT GATEWAYS : GPS INTERFACE
Receiver TypesGPS/GLONASS/BeiDou/Galileo/QZSS
Accuracy0.8 m
Acquisition-147 dBm
SensitivityCold starts: -145 dBm, Tracking: -160 dBm
IIOT GATEWAYS : LED INDICATORS
LAN2 per port (10/100/1000 Mbps)
SystemPower x 1, Storage x 1
Serial2 per port (Tx, Rx)
Wireless Signal Strength-
IIOT GATEWAYS : POWER PARAMETERS
Input Voltage12 to 36 VDC
Power Consumption30 W (max.)
Input Current2.5 A @ 12 VDC
Power ConnectorScrew-fastened Euroblock terminal
IIOT GATEWAYS : PHYSICAL CHARACTERISTICS
HousingMetal
InstallationDIN-rail mounting (with optional kit), Wall mounting (with optional kit)
Ambient Relative Humidity5 to 95% (non-condensing)
Dimensions132 x 122 x 87 mm (5.2 x 4.81 x 3.43 in)
Operating Temperature-40 to 70°C (-40 to 158°F)
Weight1,340 g (2.95 lb)
MTBF441,032 hrs
Storage Temperature-40 to 75°C (-40 to 167°F)
Standards and CertificationsEMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; RED: EN 300 328, EN 301 893, EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1, EN 303 413, EN 62311; Safety: UL 62368-1, EN 62368-1; Carrier Approvals: AT&T, Verizon; Green Product: RoHS, CRoHS, WEEE; Hazardous Locations: Class I Division 2, ATEX; IP20; Telcordia (Bellcore) Standard TR/SR
