Operating Temperature (0 to 45°C)
Relative Humidity (10% to 90%, non-condensing)

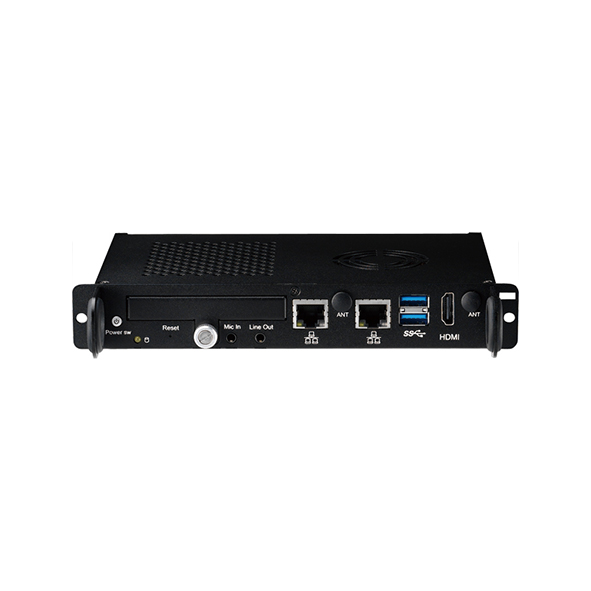

Factory AutomationNDiS M532 is an OPS-compliant media player powered by 3rd generation Intel® Core™ processors. Following the open pluggable standards, NDiS M532 can perfectly fit into a myriad of OPS panels and is compact in size. Yet, NDiS M532 has high scalability, allowing for easy storage capacity expansion through pluggable 2.5" storage units and effortless functional extension through Mini Card expansion modules. Changing system memory is also made simple. In addition, NDiS M532 leverages the 3rd generation Intel® Core™ processors to deliver outstanding graphics whilst limiting power usage. The superb but power-efficient NDiS M532 can therefore maximize visual impacts for digital signage applications.
You can place an order for the Nexcom NDiS M532 OPS Embedded Computer, which is applicable in the Factory Automation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| Fanless Computer : General | |
| CPU Support | 3rd generation Intel® Core™ rPGA socket type processor |
| Main Memory | 1 x 204 pin SO-DIMM socket, support DDR3 1600 MHz with un-buffered and non-ECC SDRAM up to 8GB |
| Display Option | - |
| Storage Device | 1 x 2.5" SATA storage bay for HDD/ SSD |
| Expansion Slot | 1 x Mini-PCIe for optional WLAN/TV tuner module |
| Fanless Computer : Interface | |
| I/O Interface-Front | 1 x Power button, 1 x Reset button, 1 x HDD LED, 2 x USB 3.0, 1 x HDMI, 1 x Audio Mic-in, 1 x Audio Line-out, 2 x RJ45 with LEDs for Gigabit LAN, 1 x 2.5" HDD slot, 2 x Antenna hole |
| I/O Interface-Rear | 1 x TMDS, 1 x DP, 1 x UART, 1 x Audio out L/R, 2 x USB 2.0, 1 x USB 3.0, DC input +12V~+19V, Control signals (PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN) |
| Fanless Computer : Power Requirements | |
| Power Requirements | DC power input +12V~19V |
| Fanless Computer : Physical Characteristics | |
| Dimensions | 200mm (W) x 119mm (D) x 30mm (H) (7.8" x 4.7" x 1.1") |
| Housing | - |
| Operating temperature | ambient with air flow from 0°C to 45°C |
| Storage temperature | -20°C to 80°C |
| Humidity | 10 to 90% (non-condensing) |
| Shock Protection | No |
| Vibration Protection | No |
| Standards and Certifications | CE approval, FCC Class A |
| Fanless Computer : Compatible Operating Systems | |
| OS Support List | Win7/Win8/XP/WES7/WE8S/WES2009/Linux |
