NEXCOM introduces a new series of 3D cameras based on time-of-flight (ToF) technology for various business intelligence applications. The 3D ToF camera is a cost-effective, mechanically compact depth imaging solution designed to capture clear and consistent images in environments with varying illumination. The quick response time (signal between sensor and subject travels at speed of light) of the BIC series 3D cameras can provide accurate data for various intelligent applications such as retail analytics, people counting, cargo dimension scanning and many more.
Retail Store
3D ToF camera can count visitors as soon as they enter the store. It can also provide information on which shopping aisle has the most in-store traffic, offering retail owners accurate data to benchmark sales performance. In addition, with Wi-Fi (beacon) support, retail owners can send promotional messages to visitor’s cell phone to engage them on a personal level and increase purchase intent.
People counting
3D ToF camera can count all the visitors entering and staying in buildings, such as retail analytics and queue/ building management. It can also be used in security applications for retail, shopping malls, hospital, banking, and airport.
Industrial safety for factory operation
If a person or object nears or enters restricted area within a production facility, 3D ToF camera can detect and feedback data to stop robotic or other production equipment immediately. 3D ToFcamera is a cost-effective solution to ensure a safer working environment.

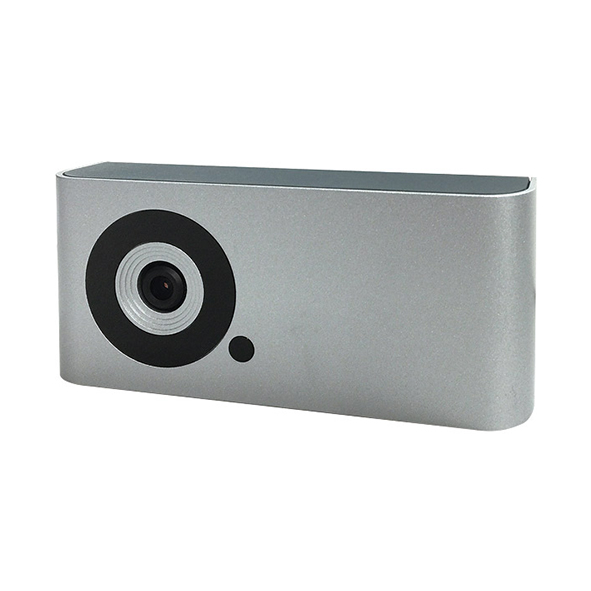

You can place an order for the Nexcom BIC-253 3D Camera online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| Nexcom Camera : General | |
| Sensor array | 1/3” 3D Sensor |
| Lens | 3.6mm F1.2 |
| Field of View | 77° |
| Lighting | IR-LED |
| Depth range | Up to 4M |
| Dimension | 155 mm(L) x 68 mm(W) x 35 mm(H) |
| Weight | 310g |
| Operating Temperature | 0°C ~ +40°C |
| Humidity | 10% ~ 90% |
| Application | SDK available for application development |
| Nexcom Camera : Imaging | |
| Resolution | 320 x 240 (QVGA) @ 30 fps |
| Video Data | 12 bit video RAW data for Depth ( Phase/ Amplitude ) |
| Nexcom Camera : I/O | |
| USB | USB (for ODM request only) |
| Power Indicator | LED (RED when power is ON) |
| Power | DC12V/2A |
| Power consumption | 8 W Typ |
| Default | Default setting button |
| Nexcom Camera : Network | |
| Interface | None |
| WiFi (optional) | None |
| Protocol | None |
