Operating Temperature (0 to 40°C)
Relative Humidity (10%~90% relative humidity, non-condensing)

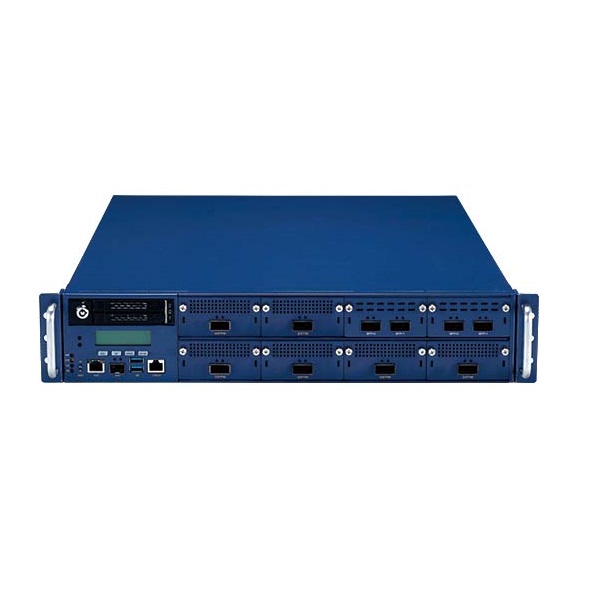

Factory AutomationNEXCOM’s NSA 7160 is a 2U rackmount high-performance networking appliance intended for networking security and 5G network applications. Based on the 4th Gen Intel® Xeon® product family (formerly: Eagle Stream), NSA 7160 features enhancements in multi-core computing performance, high memory capacity, high-speed I/O interface, and Intel® QAT hardware acceleration with DPDK to support NEXCOM propriety and standard OCP 4C+ interface LAN modules for both enterprise and telecommunication applications.
| Industrial Computer : Computer | |
| Storage Slot | 2 x 2.5” swappable SSD/HDD 1 x M.2 2280 (Key B+M) socket |
| Industrial Computer : Interface | |
| Interface External | Button: Power & reset & NMI LED: PWR/STBY/HDD/ERR 2 x 2.5” swappable SSD/HDD bays 2 x USB 3.0 ports 1 x RJ45 type console 8 x PCIe5 LAN module slots (OCP 4C+ interface) 2 x Management ports (1 x RJ45 & 1 x SFP) 1 x VGA port (for models with BMC installed only) 3 x Swappable smart fans 2 x Power inlets 1 x LCM module |
| Interface Internal | 1 x RunBMC module connector 1 x PCIe4 x16 slot with CXL1.1 for FHFL card |
| Industrial Computer : Power Requirements | |
| Power | 1300W 1+1 CRPS redundant power supply |
| Industrial Computer : General | |
| Main Board | Dual Intel® 4th Gen Xeon® Scalable processor, socket LGA 4677 PCH: Intel® Emmitsburg (C741) Supports 4 x UPI between CPUs TPM 2.0 onboard |
| Memory | 16 (8+8) DDR5 memory DIMMs, up to 1024GB per RDIMM |
| Industrial Computer : Physical Characteristics | |
| Dimensions | Chassis dimension: 438 mm x 800 mm x 88 mm Carton dimension: 1015 x 688 x 285 mm |
| Operating temperature | 0°C~40°C |
| Storage Temperature | -20°C~75°C |
| Relative humidity | 10%~90% non-condensing |
| Standards and Certifications | CE/FCC Class A UL |
| Weight | Without packing: 21.9 Kg With a packing: 30.58 Kg |
