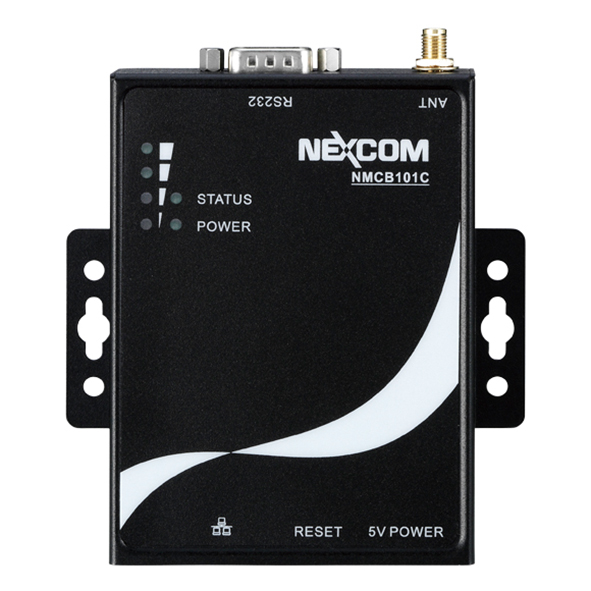

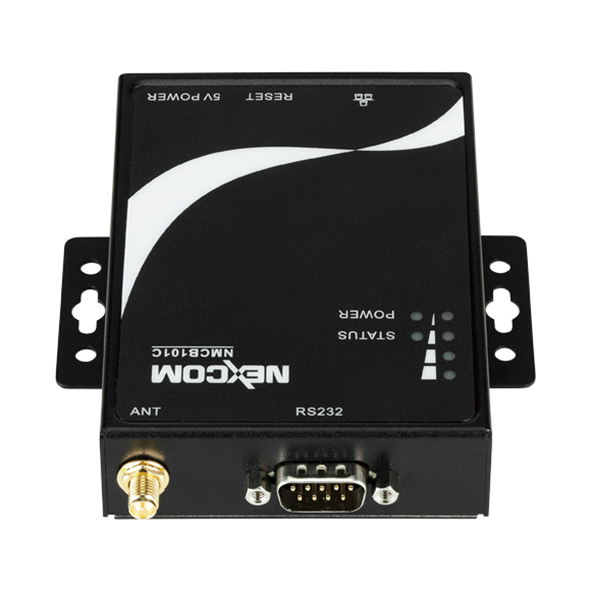

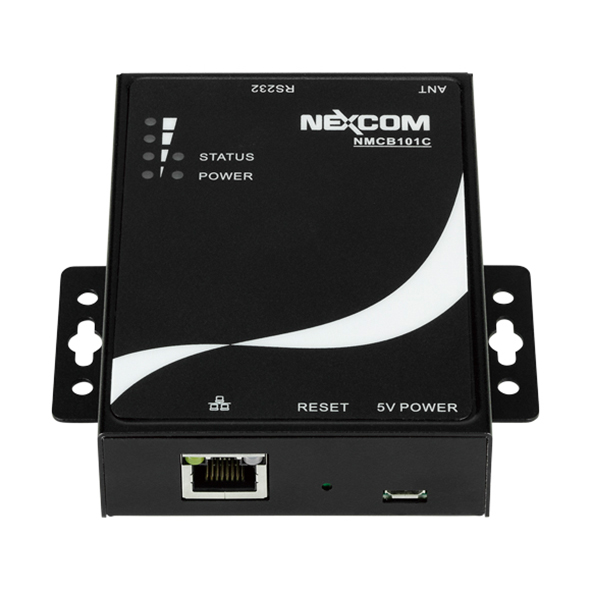

Factory AutomationNMCB101C is designed for RS232 devices in industrial machines, such as medical equipment, PLC, electricity meter, and sensors. For medical equipment, we used 2.5Kv of the single isolate to make sure the single was correct and independent. The function, to convert RS232 signal into Wi-Fi or Ethernet through the NMCB101C, which achieves the purpose of application in IoT and Industry 4.0.
You can place an order for the Nexcom NMCB101C IoT Gateway, which is applicable in the Factory Automation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| serial-to-ethernet : Interface | |
| 10/100Mb RJ45 (Megabit) Ports | Yes : 1 |
| 10Mbps RJ-45 Ports | No |
| RS-232 Ports | Yes : 1 |
| RS-422/485 Ports | No |
| RS-232/422/485 Ports | No |
| serial-to-ethernet : Communication details | |
| Wireless Standards | 802.11 b/g/n x 1 |
| serial-to-ethernet : General | |
| Management | Web GUI for configuration |
| MTBF | - |
| serial-to-ethernet : Power Requirements | |
| Power Consumption (Output Adapter) | DC 5V with Micro USB connector |
| serial-to-ethernet : Features and capabilities | |
| The automatic restart (reset) | 1 X Reset/restore to default push button |
| Alarm feature | - |
| serial-to-ethernet : Standards and protocols | |
| Network protocol | SNTP client (real IP, static) |
| serial-to-ethernet : Physical Characteristics | |
| EMC | EN 301 489-1/17, FCC Part 15 Subpart B, EN 55022/55024 |
| EMI | FCC, CE Class B, SRRC |
| Operating Temperature | 0°C~70°C |
| Storage Temperature | -40°C~85°C |
| Operation Humidity | 5%~95%, non-condensing |
