Factory AutomationA wireless-ready system, Utilizing 32nm Intel® Core™ i7/i5 processor, NISE 3520 series feature Intel® Turbo Boost and Intel® Hyper-Threading technologies (2 cores, 4 threads), as well as on-processor graphics and two DDRIII 800/1066 memory modules up to 4GB. In addition, NISE 3520 provides a wide variety of display I/O configurations and rich I/O interfaces including two Intel® GbE Ethernet ports, 5 x COM ports, 6 x USB,
8 x GPIO, 1 x Mini-PCIe socket, 1 x SIM card holder, 1 x HDMI, 2 x GSM audio, 2 x PCI slot. NISE 3520 is designed for a broad range of applications that demand intense graphics performance, these include medical diagnostic equipment, medical imaging, data storage, industrial automation, public infotainment, and surveillance security applications.
You can place an order for the Nexcom NISE 3520P2/P2E Fanless Computer, which is applicable in the Factory Automation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| Fanless Computer : General | |
| Main Memory | 2x 240-pin memory DIMM, up to 4GB DDR3 800/1066MHz SDRAM, unbuffered and non-ECC |
| Device | 1x 2.5” HDD driver bay |
| Expansion | 2 x PCI expansion (NISE 3520P2 only, 10W max./per slot), 1 x PCI & 1 x PCIe x1 expansion (NISE 3520P2E only, 10W max./per slot, Add-on card length: 169mm max, 1 x Mini-PCIe socket, - Default: support optional 3.5G module, - Option: support optional Wi-Fi module, |
| Main Board | NISB3520, On board Mobile Intel® QM57 Platform Controller Hub, Support Intel® Core™ i7-620M PGA Processor (2.66GHz, 4M Cache), Support Intel® Core™ i5-520M PGA Processor (2.4GHz, 3M Cache), Support Intel® P4500 PGA Processor (1.86GHz, 2M Cache) |
| Fanless Computer : Interface | |

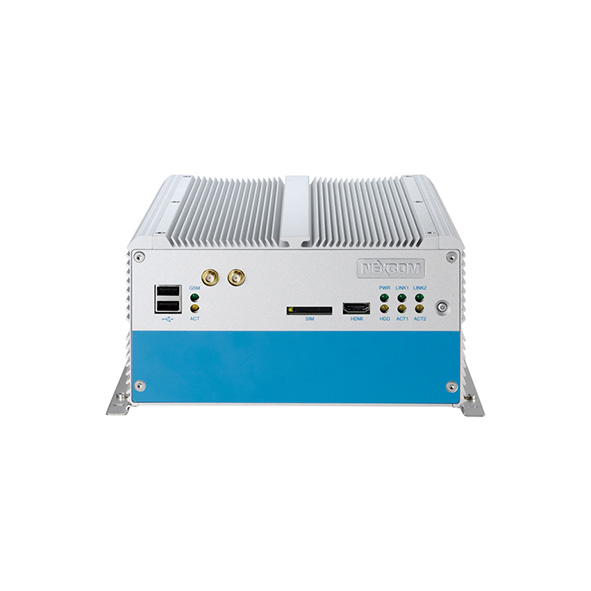

| I/O Interface-Front | ATX power on/off switch, HDD Access/Power status LEDs, Wireless Active LEDs, 2 x Antenna holes, 2 x USB2.0 ports, 1 x Line-out and 1x Mic-in, 1 x HDMI, 1 x External SIM card holder |

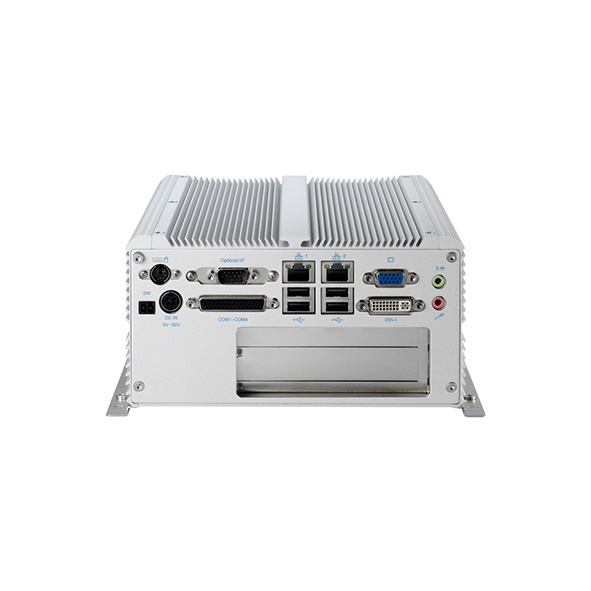

| I/O Interface-Rear | 2-pin Remote Power on/off switch, 9~30V DC input, 1 x PS/2 for Keyboard / Mouse, 1 x DB15 male connector for GPIO (4x input and 4x output), 1 x DB44 Serial Port for 4x RS232 (COM2: RS232/422/485 with auto flow control), 2x GbE LAN ports, 4 x USB2.0 ports, 1 x DB15 VGA port, 1 x DVI-I port, 1 x Speaker-out and 1x Mic-in |
| Fanless Computer : Power Requirements | |
| Power Requirements | ATX power mode, On-board DC to DC power support from 9V to 30V DC, Optional power adapter |
| Fanless Computer : Physical Characteristics | |
| Dimensions | 195mm (W) x 268 mm (D) x 101mm (H) (7.7” x 10.5” x 3.98”) |
| Housing | Aluminum Chassis with fan-less design |
| Operating temperature | Ambient with air flow: -5°C ~ 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| Storage temperature | -20°C ~ 80°C |
| Humidity | 10% to 93% (Non-Condensing) |
| Shock Protection | 20G, half sine, 11ms, IEC60068-2-27 |
| Vibration Protection | Random: 0.5Grms @5~500 Hz according to IEC68-2-64, Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-6, |
| Standards and Certifications | CE, FCC Class B |
| Fanless Computer : Compatible Operating Systems | |
| OS Support List | Windows XP 32bits and 64bits, Windows 7 32bits and 64bits |
