Operating Temperature (-20 to 70°C)
Relative Humidity (5 to 95% non-condensing).png)

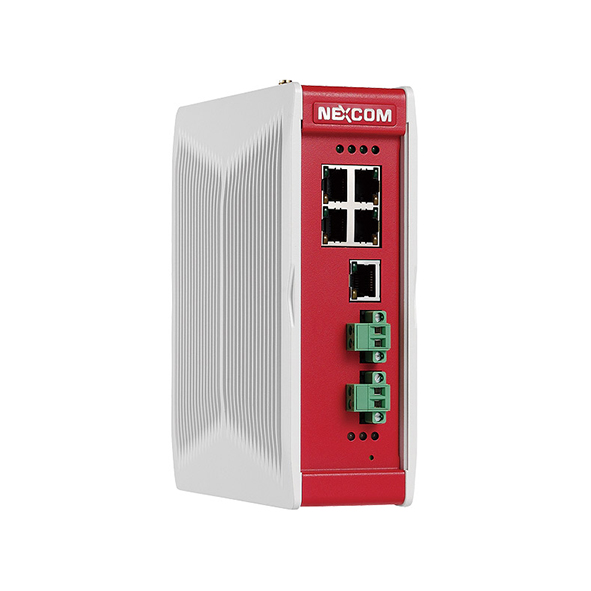

IP protection (IP30)The CoreFort™ industry firewall series is a fully integrated industry multi-port firewall router with VPN function. The fully equipped, broadband-capable firewall router offers a stateful packet inspection firewall, denial-of-service(DoS)/distributed denial-of-service(DDoS) protection and intrusion prevention, portscan detection, and real-time alerts. It gives additional protection for machinery and equipment installed on the secure side of the firewall. Equipped with SSL VPN functions, the CoreFort™ industry firewall provides a remote access infrastructure to secure connections, and helps machine builder/system integrator to design easily maintained systems. Furthermore, its tough fully-rugged design is ideal for harsh environment application. With wide temperature range up to to 70°C (158°F) degree, it offers reliable communication network in extreme temperature conditions.
Pairing VPN capabilities, the CoreFort™ industry firewall series is an ideal endpoint connectivity and security solution for industrial automation, process control, energy and medical instrument remote management application.
You can place an order for the Nexcom IFA 3610 Industry Firewall online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| Firewall solution : General | |

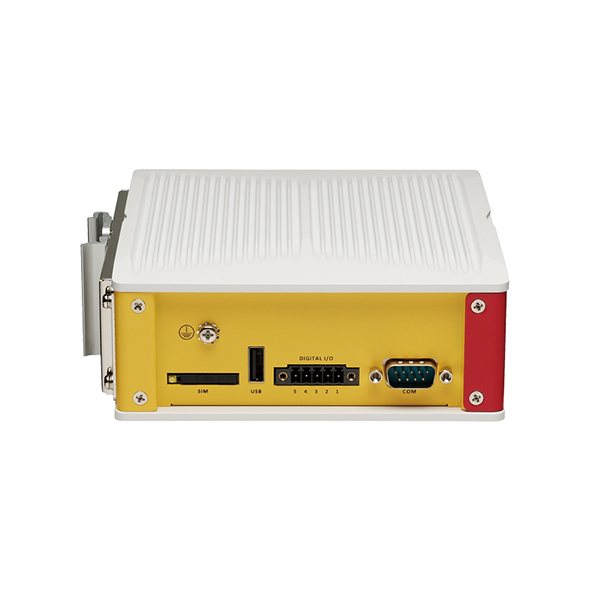

| Hardware Specification | 1 x 10/100/1000 Base-T Ethernet WAN, 4 x 10/100/1000 Base-T Ethernet LAN, 1 x USB, 1 x DI/DO, RS-232/422/485, microSD 4GB |
| Management | Easy web-based administration (SSL), Secure remote SSH/SCP access, Centralized management (via SSL) |
| High Availability | Hot Standby (active/passive), Node Data/Configuration Synchronization |
| Power Requirements | Dual power input 24VDC |
| User Authentication | Active Directory /NTLM, LDAP, Local |
| Multi-WAN/Failover | Supports multiple Uplinks/WANs: Ethernet (Static/DHCP), PPPoE, Automatic WAN Uplink Failover, Monitoring of WAN Uplinks |
| IP Protection | IP30 |
| Fanless | Yes |
| Firewall solution : Physical Characteristics | |
| Weight | 1.90Kg |
| Dimensions | 167mm x 59mm x 140mm |
| Operating temperature | -20°C ~ 70°C/-4°F ~ 158°F |
| Storage temperature | -40°C ~ 80°C/-40°F ~ 176°F |
| Humidity | 5% ~ 95%, non-condensing |
| Standards and Certifications | Safety: UL 508, F CC/CE/RoHS |
| Mounting | DIN rail/wall mount (optional) |
| Firewall solution : Security | |
| Network Security | Stateful packet firewall, Intrusion detection/prevention (IDS/IPS), Multiple public IPs, SNMP support (V1/V2/V3), VoIP/SIP support, Portscan detection, SYN/ICMP flood protection, DNS proxy/routing |
| Firewall solution : Network | |
| Traffic Shaping | Bandwidth Management |
| Network Address Translation | Destination NAT, Incoming Routed Traffic, O ne-to-One NAT, Source NAT (SNAT), IPSec NAT Traversal |
| Bridging | Firewall Stealth Mode, OSI-layer 2 firewall-function, Spanning tree, Unlimited bridges, Unlimited interfaces per bridge |
| Routing | Static Routes, Source-based Routing, Destination-based Routing, Policy-based Routing (based on interface, MAC, protocol, or port) |
| VPN (Virtual Private Network) | IPsec, - Encryption: 3DES, AES 128/256-bit,MD5, SHA1, - Diffie Hellman (2, 5, 14, 15, 16,17,18), - Authentication: Pre-Shared Key, RSA Keys X.509-certificates IKEv1, L2TP, - DPD (Dead Peer Detection), - NAT-Taversal, - Compression, - PFS (perfect forward secrecy), - VPN: site-to-site, - VPN: client-to-site (road warrior) , - Integrated certificate authority, True SSL/TLS VPN (OpenVPN), - Encryption: DES, 3DES, AES 128/192/256-bit, CAST5, Blowfish, - Authentication: Pre-shared key, X.509-certificates , certification authority, and local, - Support for VPN over HTTPS proxy (OpenVPN), - PPTP passthrough, - VPN: site-to-site, - VPN: client-to-site (road warrior) , - VPN: client for Microsoft Windows, Mac OS X and Linux, - Multiple logins per user, - VPN failover |
| Services | Event notification & handling, NTP (network time protocol), DHCP server, SNMP server, DynDNS |
| Logs and Reports | Customizable real-time dashboard, Live Log Viewer (AJAX based), Detailed user based web access report, Network/system/performance statistics, Rule-based logging settings (firewall rules), Syslog: local or remote, OpenTSA trusted time stamping |
| Firewall solution : Package Checklist | |
| Package Contents | IFA 3610 x 1, QIG x 1, Power Input 5.08mm Terminal Block x 2, DI/DO Termina Block x 1 |
| Firewall solution : Features and capabilities | |
| Updates and Backup | Centralized updates through CoreFort™ network, Network, Scheduled backup, Encrypted backups via e-mail, Instant recovery/backup to USB stick |
