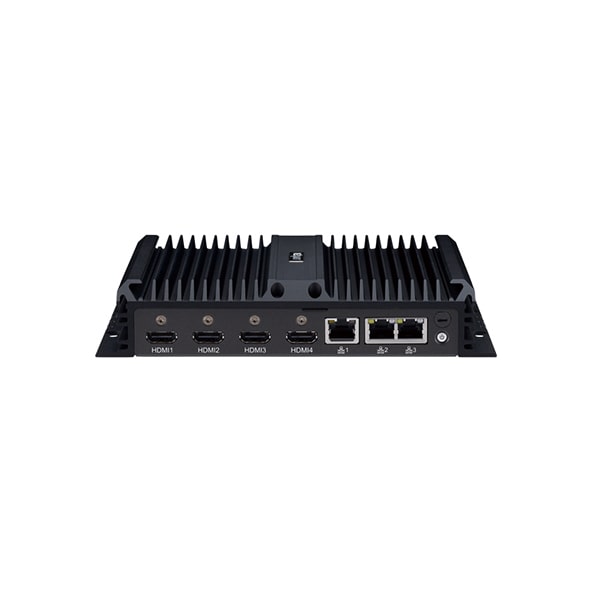

Nexcom NISE 70 Fanless Computer

Nexcom NISE 70 Fanless Computer
Nexcom NISE 70 Fanless Computer

  • Onboard Intel® Celeron® 6305E Processor
  • 4 x HDMI
  • 3 x USB 3.0, 1 x USB 2.0
  • 1 x RS232/422/485, 1 x RS232
  • 3 x GbE LAN ports; support WoL, teaming and PXE
  • Onboard TPM 2.0 chip
  • 1 x M.2 socket for storage/4G LTE/5G modules
  • 1 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE module
  • Support operating temperature from-5 to 55 Celsius degree
  • Support+12V to 24VDC input; support ATX power mode

0 reviews • Write a review
Datasheet
  • Operating Temperature (-5 to 55°C)
  • Relative Humidity (10% to 95% non-Condensing)
  • shock (50G, half sine, 11ms, IEC60068-2-27)
  • Vibration (2g @5~500 Hz)
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Nexcom NISE 105-E3845 Fanless Computer
Quickview
Nexcom NISE 105-E3845 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 103 Fanless Computer
Quickview
Nexcom NISE 103 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 104 Fanless Computer
Quickview
Nexcom NISE 104 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 105/105A Fanless Computer
Quickview
Nexcom NISE 105/105A Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 106-N3160 Fanless Computer
Quickview
Nexcom NISE 106-N3160 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 106-N3710 Fanless Computer
Quickview
Nexcom NISE 106-N3710 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 108 Fanless Computer
Quickview
Nexcom NISE 108 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 50 Fanless Computer
Quickview
Nexcom NISE 50 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

 Powered by the latest generation of Intel® Celeron® processor (formerly codenamed "Tiger Lake-UP3"), NISE 70 is a fanless PC designed for industrial applications which demand low power consumption and abundant I/O interfaces but with limited installation space.

NISE 70 supports a wide range of operating temperatures from -5~55 Celsius degrees and a wide range of DC power input from 12V to 24V. NISE 70 is also the first system in the slim NISE 50 series to support 4 independent displays and DDR4 3200MHz memory up to 32GB. The NISE 70 have strong connectivity - An ethernet-based LAN port and traditional Serial port, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there are 1 x mini-PCIe socket and 1 x M.2 socket which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 4G LTE, and 5G modules as well as a storage module. NISE 70 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.


You can place an order for the Nexcom NISE 70 Fanless Computer, which is applicable in the Factory Automation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Fanless Computer : General
CPU SupportOnboard Intel® Celeron® processor 6305E Support Intel® Core™ i7/i5 Tiger Lake-UP3 processors with different SKUs
Main Memory1 x DDR4 3200 SO-DIMM socket, support up to 32GB
Display Option4 x HDMI ports, support 4K@30Hz
Expansion Slot1 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE/mSATA 1 x M.2, support Key B & B+M module for optional 4G LTE/5G/SATA storage (SATA/PCIe/USB, 2242/3042)
Fanless Computer : Interface
I/O Interface-FrontATX power on/off switch 4 x HDMI port, support 4K@30Hz 2 x 2 x Intel® I211 and 1 x Intel® WGI219LM GbE LAN ports; support WoL, Teaming and PXE 1 x Antenna hole
I/O Interface-Rear3 x USB 3.0 ports (900mA per each) 1 x USB 2.0 (500mA per each) 2 x DB9 for COM1 & COM2 - COM1: RS232/422/485 auto flow control - COM2: full RS232 signal 1 x 2-pin remote power on/off switch 2 x Antenna hole Support+12V to 24V DC input
Fanless Computer : Power Requirements
Power RequirementsPower input: +12 to +24V DC 1 x Optional 24V, 60W power adapter
Fanless Computer : Physical Characteristics
Dimensions198.8mm (W) x 150.4mm (D) x 37.7mm (H) with wall mount bracket
HousingAluminum and metal chassis with fanless design
Operating temperatureAmbient with air flow: -5°C to 55°C (Celeron), 0°C to 50°C (Core i5/i7)(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature-20°C to 80°C
Humidity10% to 95% (non-condensing)
Shock ProtectionM.2/mSATA: 50G, half sine, 11ms, IEC60068-2-27
Vibration ProtectionRandom: 2Grms@5~500 Hz, IEC60068-2-64 Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6
Standards and CertificationsCE FCC Class A
Fanless Computer : Compatible Operating Systems
OS Support ListWindows 10 64-bit Linux Kernal
