Nexcom NISE 50C Fanless Computer

Nexcom NISE 50C Fanless Computer
Nexcom NISE 50C Fanless Computer
Nexcom NISE 50C Fanless Computer
Nexcom NISE 50C Fanless Computer
Nexcom NISE 50C Fanless Computer
  • 1 x HDMI Display
  • 1 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
  • 4 x USB 2.0
  • 3 x COM ports with RS232, each port only have Tx/Rx/GND
  • 3 x Optional Interface for optional WiFi/3.5G/LTE modules
0 reviews • Write a review
Datasheet
  • Operating Temperature (-5 to 55°C)
  • Relative Humidity (10% to 95% non-Condensing)
  • shock (EMMC: 50G, half sine, 11ms, IEC60068-27)
  • Vibration (Random: 2Grms @ 5~500 Hz, IEC60068-2-64, - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6)
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Nexcom NISE 105-E3845 Fanless Computer
Quickview
Nexcom NISE 105-E3845 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 103 Fanless Computer
Quickview
Nexcom NISE 103 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 104 Fanless Computer
Quickview
Nexcom NISE 104 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 105/105A Fanless Computer
Quickview
Nexcom NISE 105/105A Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 106-N3160 Fanless Computer
Quickview
Nexcom NISE 106-N3160 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 106-N3710 Fanless Computer
Quickview
Nexcom NISE 106-N3710 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 108 Fanless Computer
Quickview
Nexcom NISE 108 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 50 Fanless Computer
Quickview
Nexcom NISE 50 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

Powered by the latest generation of Intel® Atom™ processor E3826 (formerly codenamed "Bay Trail-I"), NISE 50C presents an intelligent PC-based controller and IoT gateway for factory automation. Up to 2G onboard DDR3L memory, The NISE 50C supports operating temperatures from -5 up to 55 degrees C with typical DC input 12V. The NISE 50C has high integration ability with an optional mini-PCIe module and 3 x COM ports which makes it a reliable connection with devices in factory automation applications, IoT applications (with optional Wi-Fi, 3.5G/4G LTE module), and communication applications (with optional GPIO, RS232). NISE 50C is definitely the top choice for M2M intelligent system as a factory automation controller and gateway.


You can place an order for the Nexcom NISE 50C Fanless Computer, which is applicable in the Factory Automation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Fanless Computer : General
CPU SupportOnboard Intel® Atom™ processor E3826 Dual Core, 1.46GHz, Support Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs
Main MemoryOn board DDR3L 1066/1333 2GB RAM, un-buffered and non-ECC,max up to 2GB
Display Option1 x HDMI display
Storage Deviceon Board 16GB EMMC
Expansion Slot3 x Mini-PCIe socket for optional WiFi/3.5G modules
Fanless Computer : Interface

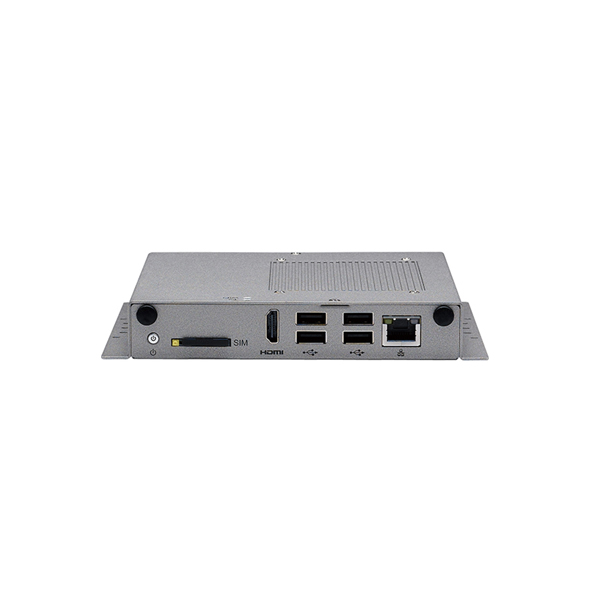

I/O Interface-FrontATX power on/off switch, 1 x Wifi/1 x GSM LEDs, 1 x SIM Card holder, 1 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE, 1 x HDMI Display Output, 4 x USB 2.0 (500mA per each), 2 x Antenna Holes for optional WiFi/3.5G antenna

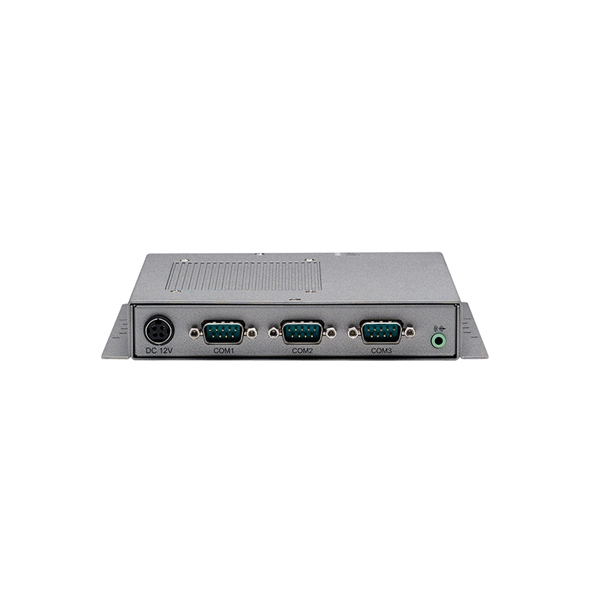

I/O Interface-Rear3 x DB9, only support RS232 Tx/Rx/GND single, 1 x Line-out, Support 12V DC INPUT
I/O Interface - Internal4 x GPI and 4 x GPO (5V, TTL Type), 1 x DB9, only support RS232, Tx/Rx/GND single
Fanless Computer : Power Requirements
Power RequirementsPower input: 12Vdc, 1 x optional 12V, 60W power adapter
Fanless Computer : Physical Characteristics
Dimensions146mm(W) x 26mm(H) x 150mm(D)without wall-mount bracket
HousingAluminum and Metal Chassis with fanless design
Operating temperatureAmbient with air flow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature-20°C to 75°C
Humidity10% to 95% (non-Condensing)
Shock Protection- EMMC: 50G, half sine, 11ms, IEC60068-27
Vibration Protection- Random: 2Grms @ 5~500 Hz, IEC60068-2-64, - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Standards and CertificationsCE, FCC Class A
Fanless Computer : Compatible Operating Systems
OS Support ListWindows 8.1, Windows Embedded Standard 8, Windows 10 IoT core, Android 4.4
