Nexcom NISE 105/105A Fanless Computer

Nexcom NISE 105/105A Fanless Computer
Nexcom NISE 105/105A Fanless Computer
Nexcom NISE 105/105A Fanless Computer
Nexcom NISE 105/105A Fanless Computer
Nexcom NISE 105/105A Fanless Computer
  • Dual Independent Display from DVI-I and HDMI
  • 2 x Intel® I120IT LAN ports support WoL, Teaming and PXE
  • 2 x USB2.0 & 1 x USB3.0
  • 4 x COM ports (COM1&COM2 with RS232/422/485, jumper-free setting)
  • 1 x Optional Interface for optional Wi-Fi/3.5G modules
  • Brand: NEXCOM
  • Model: NISE 105/105A
0 reviews • Write a review
Datasheet
  • Operating Temperature (-20 to 70°C)
  • Relative Humidity (10% to 95% non-Condensing)
  • Shock (HDD: 20G, half sine, 11ms, IEC60068-2-27, - CFast: 50G, half sine, 11ms, IEC60068-2-27)
  • Vibration (Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64, - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6, - Random: 2Grms @ 5~500 Hz, IEC60068-2-64, - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6)
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Nexcom NISE 105-E3845 Fanless Computer
Quickview
Nexcom NISE 105-E3845 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 103 Fanless Computer
Quickview
Nexcom NISE 103 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 104 Fanless Computer
Quickview
Nexcom NISE 104 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 106-N3160 Fanless Computer
Quickview
Nexcom NISE 106-N3160 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 106-N3710 Fanless Computer
Quickview
Nexcom NISE 106-N3710 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 108 Fanless Computer
Quickview
Nexcom NISE 108 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 50 Fanless Computer
Quickview
Nexcom NISE 50 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom NISE 505 Fanless Computer
Quickview
Nexcom NISE 505 Fanless Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

Powered by the latest generation of Intel Atom® processor E3826 (formerly codenamed "Bay Trail-I"), the NISE 105 provides outstanding performance not only on computing but also on graphics, and it presents a brand new opportunity for both intelligent and industrial computing solutions. NISE105 supports ACP ThinManager which offers management solutions for the modern factory by simplifying management and also supports Indusoft for HMI and SCADA. Up to 4G DDR3L memory, NISE 105 has several options on storage devices like CFast, HDD, and SSD. The NISE 105 is also the 1st system in the compact NISE 100 series to support extended operating temperatures from -20 to 70 degrees Celsius with a wide DC input range from 9-30VDC. In addition to no cable connection on the NISE 105, it brings NISE 105 the sustainability to work in a harsh environment both with temperature and vibration concerns.

The NISE 105 has high integration ability with an optional mini-PCIe module and 4 x COM ports, which makes it a real intelligent system for various applications such as factory automation applications (with optional PROFIBUS®, PROFINET®, DeviceNET®, EtherCAT®, EtherNet/IP™ Master module), network applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 105 is definitely the top choice for M2M intelligent systems and factory automation platforms.


You can place an order for the Nexcom NISE 105/105A Fanless Computer, which is applicable in the Factory Automation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Fanless Computer : General
CPU SupportOnboard Intel® Atom™ processor E3826 Dual Core, 1.46GHz, Support Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs
Main Memory1 x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 4GB RAM max., un-buffered and non-ECC
Display OptionDual Independent Display, - HDMI and DVI-D, - HDMI and VGA (via DVI-I to VGA converter)
Storage Device1 x CFast (SATA2.0), 1 x 2.5" HDD (SATA2.0), 1Mb NVRAM(on NISE105A Only)
Expansion Slot1 x Mini-PCIe socket for optional Wi-Fi/ 3.5G modules
Fanless Computer : Interface

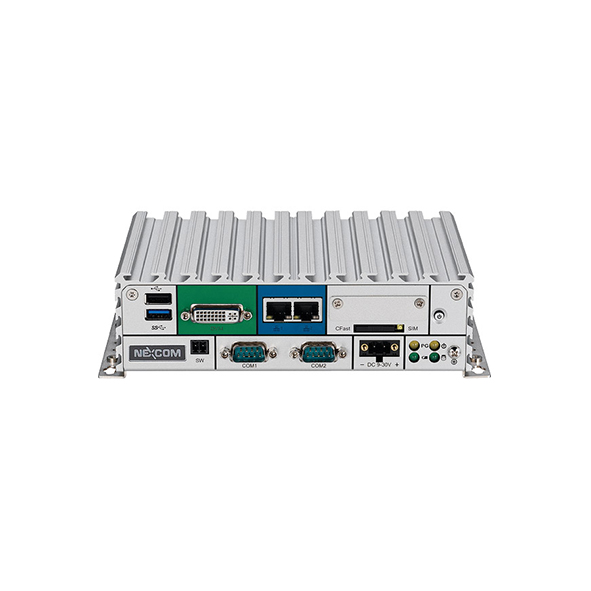

I/O Interface-FrontATX power on/off switch, 1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs, 1 x External CFast socket, 1 x SIM Card holder, 2 x Intel® I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE, 1 x DVI-I Display Output, 1 x USB3.0 (900mA per each), 1 x USB2.0 (500mA per each), 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control, - Jumper-free setting on RS232/422/485, - Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only), 1 x Remote Power ON/OFF Switch, 1 x 2-pin DC input, support +9 to 30VDC input

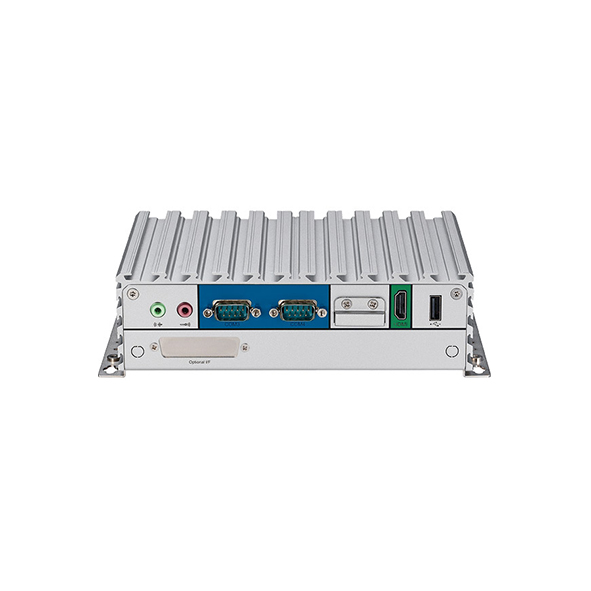

I/O Interface-Rear1 x USB2.0, 1 x HDMI, 1 x RTC Battery, 2 x DB9 for COM3 & COM4, - NISE 105 : support RS232 only, - NISE 105A: support RS232/422/485 with auto flow control, 1 x Mic-in & 1 x Line-out, 2 x Antenna Holes for optional Wi-Fi/3.5G antenna, 1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G modules
I/O Interface - Internal4 x GPI and 4 GPO (5V, TTL Type)
Fanless Computer : Power Requirements
Power RequirementsPower input: +9VDC to +30VDC, 1 x optional 24V, 60W power adapter
Fanless Computer : Physical Characteristics
Dimensions185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
HousingAluminum and Metal Chassis with fanless design
Operating temperatureAmbient with air flow: -20°C to 70°C with industrial grade device (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature-30°C to 85°C
Humidity10% to 95% (non-Condensing)
Shock Protection- HDD: 20G, half sine, 11ms, IEC60068-2-27, - CFast: 50G, half sine, 11ms, IEC60068-2-27
Vibration Protection- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64, - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6, - Random: 2Grms @ 5~500 Hz, IEC60068-2-64, - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Standards and CertificationsCE, FCC Class A, UL/ cUL
Fanless Computer : Compatible Operating Systems
OS Support ListWindows 8, 32bit/64bit, Windows Embedded Standard 8, 32-bit/64-bit, Windows 7, 32-bit/64-bit, Windows Embedded Standard 7, 32-bit/64-bit, Windows Embedded Compact 7, 32-bit, Linux Kernel version 3.8.0
