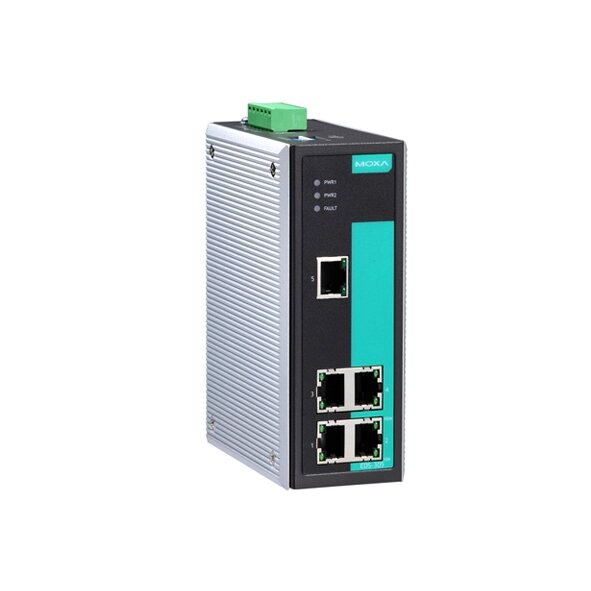

MOXA EDS-305 Unmanaged Ethernet Switches

MOXA EDS-305 Unmanaged Ethernet Switches
MOXA EDS-305 Unmanaged Ethernet Switches
MOXA EDS-305 Unmanaged Ethernet Switches
MOXA EDS-305 Unmanaged Ethernet Switches
MOXA EDS-305 Unmanaged Ethernet Switches
  • 5 x 10/100Mbps T(x) ports (RJ45 connector)
  • DIN-rail and Wall mounting
  • IP30-rated metal housing
  • 24 VDC Redundant dual power inputs
  • 0 to 60°C operating temperature
  • Brand: MOXA
  • Model: EDS-305
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (0 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Factory Automation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO AP-9100 Wireless LAN Access Point
Quickview
Proxim ORiNOCO AP-9100 Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO AP-9100R Wireless LAN Access Point
Quickview
Proxim ORiNOCO AP-9100R Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO QB-9100 Wireless LAN Access Point
Quickview
Proxim ORiNOCO QB-9100 Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL COMPACT-4BT Serial Radio Modem
Quickview
SATEL COMPACT-4BT Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL EASY-PROOF Serial Radio Modem
Quickview
SATEL EASY-PROOF Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Factory Automation Products , Marine Products , Oil & Gas Products , Switches , MOXA EDS-305 Series

The EDS-305 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 5-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards. The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of 0 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-305 switches can be installed easily on a DIN rail or in a distribution box.


You can also find the EDS-305-M-SC, EDS-305-M-ST, EDS-305-S-SC, and EDS-305-T models in the DIN-Rail Ethernet Switches.


You can explore our range of products and enquire about the MOXA EDS-305 Unmanaged Ethernet Switches for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in  Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

switch and hub : Interface
Number of ports5 Ports
10/100Mb RJ45 (Megabit) PortsYes : 5 Ports
10/100/1000Mb RJ45 (Gigabit) PortsNo
100Mb Fiber optic multi mode (Megabit) PortsNo
100Mb Fiber optic single mode (Megabit) PortsNo
100Mb SFP Fiber optic (Megabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsNo
10/100Mb (Megabit) POE PortsNo
10/100/1000Mb (Gigabit) POE PortsNo
Other portsYes : 1 x Alarm Contact Channel
switch and hub : Features and capabilities
BackupNo
switch and hub : LED Indicators
LED Per PortYes
switch and hub : Power Requirements
Input Current0.11 A @ 24 VDC
Power Input Plugin ( Redundant )Yes
Input Voltage24 VDC
Operating Voltage12 to 48 VDC
Power Consumption-
switch and hub : General
Fan / FanlessFanless
MTBF422,742 hrs
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 1
Switch typeUnManaged
Port AggregationNo
switch and hub : Physical Characteristics
Dimensions53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
HousingMetal
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature0 to 60°C (32 to 140°F)
Operation Humidity5 to 95% (non-condensing)
Standards and CertificationsHazardous Locations: ATEX, Class I Division 2; EMI: CISPR 32, FCC Part 15B Class A; EMC: EN 55032/24; Vibration: IEC 60068-2-6; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Safety: UL 508, UL 60950-1, CSA C22.2 No. 60950-1; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Maritime: DNV; IP30; MIL-HDBK-217F
Storage Temperature-40 to 85°C (-40 to 185°F)
Weight790 g (1.75 lb)
switch and hub : Standards and protocols
Protocols and work standards-
Protocols and management standards-
switch and hub : Package Checklist
Hardware installation guideYes
Power adapterNo
Power cableNo
