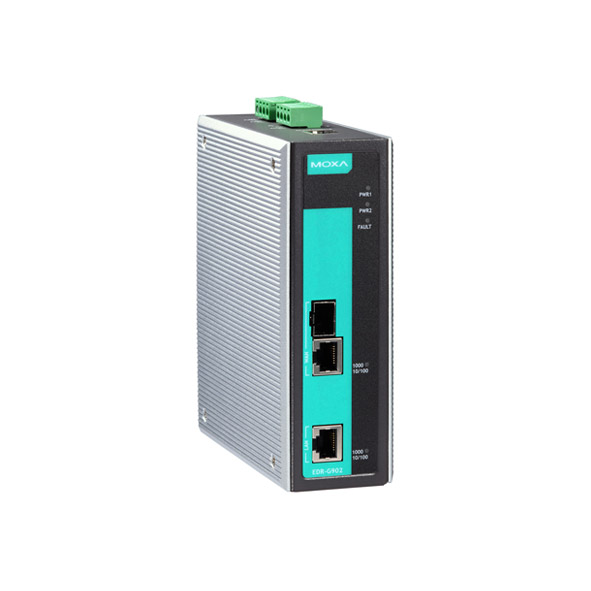

MOXA EDR-G902-T Industrial Secure Router

MOXA EDR-G902-T Industrial Secure Router
MOXA EDR-G902-T Industrial Secure Router
MOXA EDR-G902-T Industrial Secure Router
MOXA EDR-G902-T Industrial Secure Router
MOXA EDR-G902-T Industrial Secure Router

  • Firewall/NAT/VPN/Router all-in-one
  • 1 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 1 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
  • 12/24/48 VDC input power range
  • IP30-rated Metal body design
  • DIN-rail and Wall mounting
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: EDR-G902-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Freefall (IEC 60068-2-32)
  • IP protection (IP30)
  • Oil & Gas
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO AP-9100 Wireless LAN Access Point
Quickview
Proxim ORiNOCO AP-9100 Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO AP-9100R Wireless LAN Access Point
Quickview
Proxim ORiNOCO AP-9100R Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO QB-9100 Wireless LAN Access Point
Quickview
Proxim ORiNOCO QB-9100 Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL COMPACT-4BT Serial Radio Modem
Quickview
SATEL COMPACT-4BT Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL EASY-PROOF Serial Radio Modem
Quickview
SATEL EASY-PROOF Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Data Communications , Industrial Routers and Firewalls , Secure Routers , Industrial Routers , Routers , Oil & Gas Products , Marine Products , Industrial Secure Routers , MOXA EDR-G902 Series

The EDR-G902 is a high-performance, industrial VPN server with a firewall/NAT all-in-one secure router. It is designed for Ethernet-based security applications on critical remote control or monitoring networks, and it provides an Electronic Security Perimeter for the protection of critical cyber assets including pumping stations, DCS, PLC systems on oil rigs, and water treatment systems.

The EDR-G902 Series includes the following cybersecurity features:

• Virtual Private Network (VPN): VPNs are designed to provide users with secure communication links when accessing a private network from the public Internet. They use IPsec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.

• Firewall: Controls network traffic between different trust zones. Network Address Translation (NAT), which shields the internal LAN from unauthorized activity from outside hosts. The EDR-G902’s Quick Automation Profile function supports the most common Fieldbus protocols, including EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus TCP, and PROFINET. Users can easily create a secure Ethernet Fieldbus network from a user-friendly web UI with a single click. In addition, Moxa’s PacketGuard technology (Deep Packet Inspection) helps to filter Modbus TCP commands at OSI layer 7. The wide-temperature range models that are available operate reliably in hazardous, -40 to 75°C environments.


You can also find the EDR-G902 model in the Industrial Secure Routers.


Experience the convenient way to purchase the MOXA EDR-G902-T Industrial Secure Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

ROUTER : INTERFACE
Ethernet Ports1 x 10/100/1000BaseT(X) Port, RJ45 connector (LAN); 1 x Combo Port (10/100/1000BaseT(X) or 100/1000BaseSFP+), RJ45/Fiber connector (WAN)
Serial Ports1 x RS-232 Console Port
Input/Output Channels1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
Alarm Contact Channels1 relay output with current carrying capacity of 1 A @ 24 VDC
ROUTER : SOFTWARE SPECIFICATIONS
ManagementBack Pressure Flow Control, DDNS, DHCP Server/Client, HTTP, LLDP, QoS/CoS/ToS, SMTP, SNMPv1/v2c/v3, Telnet, TFTP, QoS, PPPOE, Traffic prioritization
Routing RedundancyVRRP
SecurityHTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS
Time ManagementNTP Server/Client, SNTP
EncryptionIPsec VPN: 3DES, AES-128, AES-192, AES-256, DES; OpenVPN: AES-128/192/256 CBC, Blowfish CBC, DES CBC, DES-EDE3 CBC
AuthenticationIPsec VPN: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate; OpenVPN: User password by MD5 and SHA1
ROUTER : LED INTERFACE
LED Indicators-
ROUTER : GENERAL
Supported ProtocolsIPsec, L2TP (server), PPTP (client), OpenVPN (client and server), UDP, and TCP, Tunnel mode (routing) and TAP mode (bridge), EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus TCP, and PROFINET, Modbus UDP
MTBF981,233 hrs
ROUTER : POWER REQUIREMENTS
Input Voltage12/24/48 VDC
Input Current0.45 A @ 24 VDC
Operating Voltage-
Overload Current ProtectionSupported
Reverse Polarity ProtectionSupported
Power ConnectorRemovable terminal block
ROUTER : PHYSICAL CHARACTERISTICS
HousingMetal
Dimensions51 x 152 x 131.1 mm (2.01 x 5.98 x 5.16 in)
Weight1250 g (2.82 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
Standards and CertificationsFreefall: IEC 60068-2-32; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Maritime: DNV-GL; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
