MarineThe Wave II Multitouch series has passed the demanding IEC 60945 approval, allowing it to be mounted on the bridge as part of mission-critical systems. Suitable for any marine application such as digital route planning, radar, ECDIS, conning, etc. The full glass front with PCAP multitouch and bonding option enables seamless operation and a clear view in all lighting conditions.
Enjoy the ease of online inquiries for

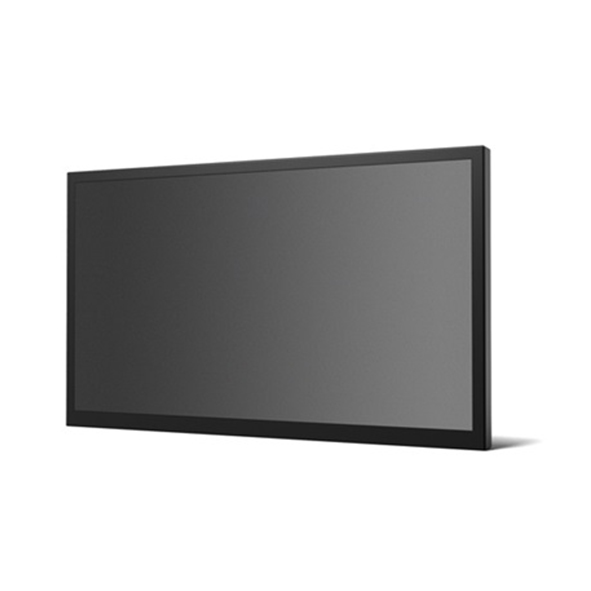

the Beijer Wave II 27" (16:9) Multitouch Monitor. You can submit your inquiry on our website and get the most friendly
communication with our experts to choose high-quality industrial automation
products at a reasonable price from our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
| X2 extreme : Communication serial | |
| Number of serial ports | 3 Ports |
| Serial port 1 | RS 232 |
| Serial port 2 | RS422/RS485 terminal block |
| Serial port 3 | RS422/RS485 terminal block |
| X2 extreme : Ethernet communication | |
| Number of ethernet ports | 1 port |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Ethernet port 2 | No |
| X2 extreme : Expansion interface | |
| SD card | micro SD |
| USB | 2xUSB 2.0 / 1 x USB Type B (touch only) |
| Input fuse | - |
| X2 extreme : Power Requirements | |
| Input voltage | 90-264 VAC (IEC inlet) |
| Power consumption (max) | 50W |
| Storage temperature | -15°C to +70°C |
| X2 extreme : Display | |
| Size diagonal | 27" diagonal |
| Resolution | 1920 x 1080 pixels |
| Backlight | LED backlight |
| Backlight life time | 50000 hours |
| Backlight brightness | 300 cd/m2 |
| Backlight dimming | Marine optimized dimming, 0 - 100% |
| Display type | TFT-LCD with LED backlight |
| X2 extreme : Physical Characteristics | |
| Mechanical size | 631 (W) x 377,6 (H) x78 (D) mm |
| Mounting | Flush mount |
| Number of touches | - |
| Touch type | 10 Point PCAP multitouch |
| Cut-out size | Depends on selected mounting option, see datasheets |
| Weightt | 8.5 kg |
| Housing | RAL 9005 fine structure |
| Operating temperaturee | -15°C to +70°C |
| Shock | No |
| Vibration | 0,7g, according to IEC 60068-2-6, Test Fc |
| Sealing front | IP42 |
| Sealing back | - |
| Humidity | - |
| Standards and Certifications | CE, Marine : DNV GL; IEC 60945; IEC 61174 (ECDIS); IEC 60936 (radar) |
| Marine | DNV GL; IEC 60945; IEC 61174 (ECDIS); IEC 60936 (radar) |
