MarineThe Wave II Multitouch series has passed the demanding IEC 60945 approval, allowing it to be mounted on the bridge as part of mission-critical systems. Suitable for any marine application such as digital route planning, radar, ECDIS, conning, etc. The full glass front with PCAP multitouch and bonding option enables seamless operation and a perfectly clear view in all lighting conditions.

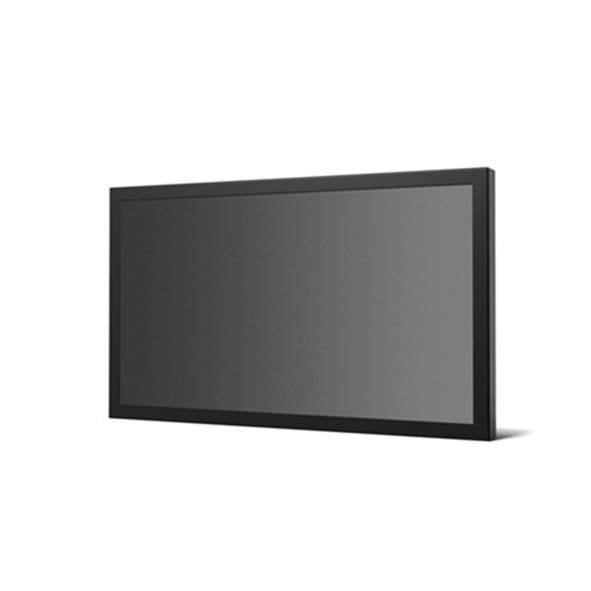

Inquire about the Beijer Wave II 24" (16:9) Multitouch Monitor, designed for
industrial automation solutions. Feel free to get in touch with our sales team
to give you the best solutions at the best global price in the Middle East (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
| X2 extreme : Communication serial | |
| Number of serial ports | 3 Ports |
| Serial port 1 | RS 232 |
| Serial port 2 | RS422/RS485 terminal block |
| Serial port 3 | RS422/RS485 terminal block |
| X2 extreme : Ethernet communication | |
| Number of ethernet ports | 1 port |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Ethernet port 2 | No |
| X2 extreme : Expansion interface | |
| SD card | micro SD |
| USB | 2xUSB 2.0 / 1 x USB Type B (touch only) |
| Input fuse | - |
| X2 extreme : Power Requirements | |
| Input voltage | 90-264 VAC (IEC inlet) |
| Power consumption (max) | 42W |
| Storage temperature | -15°C to +70°C |
| X2 extreme : Display | |
| Size diagonal | 24" diagonal |
| Resolution | 1920 x 1080 pixels |
| Backlight | LED backlight |
| Backlight life time | 50000 hours |
| Backlight brightness | 300 cd/m2 |
| Backlight dimming | Marine optimized dimming, 0 - 100% |
| Display type | TFT-LCD with LED backlight |
| X2 extreme : Physical Characteristics | |
| Mechanical size | 574 (W) x 341 (H) x78 (D) mm |
| Mounting | Flush mount |
| Number of touches | - |
| Touch type | 10 Point PCAP multitouch |
| Cut-out size | Depends on selected mounting option, see datasheets |
| Weightt | 7.5 kg |
| Housing | RAL 9005 fine structure |
| Operating temperaturee | -15°C to +70°C |
| Shock | No |
| Vibration | 0,7g, according to IEC 60068-2-6, Test Fc |
| Sealing front | IP42 |
| Sealing back | - |
| Humidity | - |
| Standards and Certifications | CE, Marine : DNV GL, IEC 60945, IEC 61174 (ECDIS), IEC 60936 (radar) |
| Marine | DNV GL; IEC 60945; IEC 61174 (ECDIS); IEC 60936 (radar) |
