Name: MOXA UC-8112-ME-T-LX1 Wide Temperature Computer
Brand: MOXA
Availability: OutOfStock

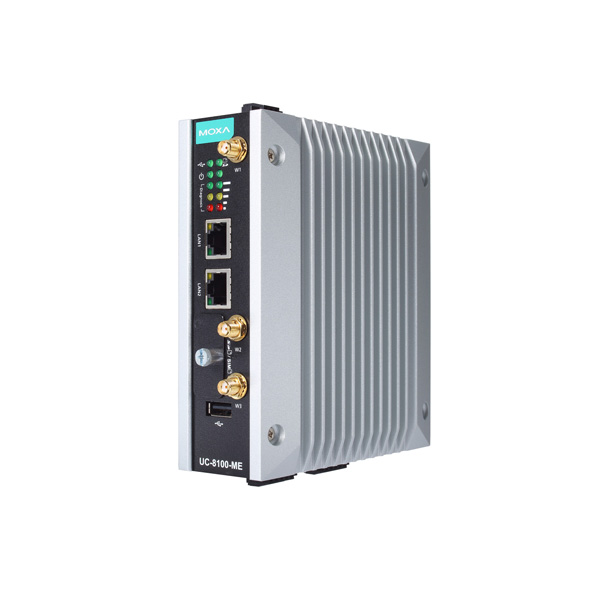

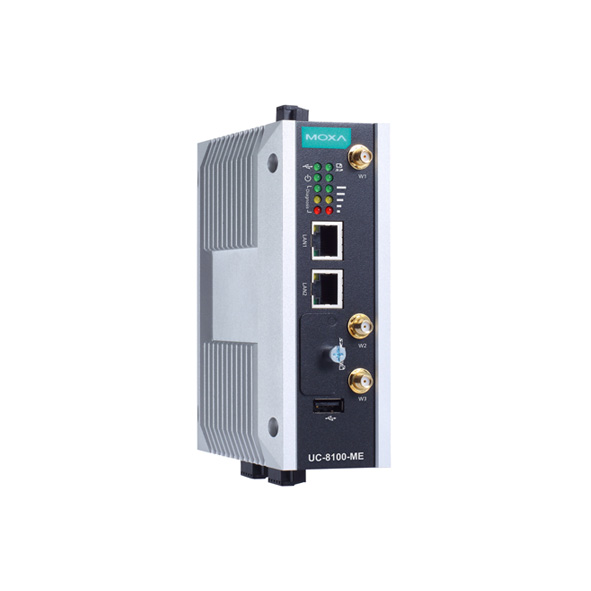

MOXA UC-8112-ME-T-LX1 Wide Temperature Computer

CPU Armv7 Cortex-A8 1000 MHz processor
Pre-installed Linux Debian 9 kernel 4.4
2 x RS-232/422/485 Serial ports
2 x 10/100 Mbps Ethernet ports
DIN-rail and Wall Mounting
12 to 36 VDC input power range
Metal body design
-40 to 85°C operating temperature

Brand: MOXA
Model: UC-8112-ME-T-LX1

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing)
Vibration (2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis)
Shock (IEC 60068-2-27)
Hazardous Location (UL Class 1 Division 2)

Oil & Gas

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA UC-1222A Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2101-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2102-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2104-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2111-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2112-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2112-T-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2114-T-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Computing , Industrial Computers , Arm-Based Computers , Industrial Computing Solutions , System Software , IIoT Gateways , Software , IIoT , Rcore Software , Solar Computers , Wide Temperature Computers , Wireless Computers , WLAN Computers , Oil & Gas Products , Cellular Computers , Computers , MOXA UC-8100-ME-T Series

The UC-8100-ME-T computing platform is designed for embedded data acquisition applications. The computer comes with two RS-232/422/485 serial ports, dual 10/100 Mbps Ethernet LAN ports, and a mini PCIe slot to support cellular modules. These versatile capabilities let users efficiently adapt the UC-8100-ME-T to various complex communications solutions.

The UC-8100-ME-T is built around a Cortex-A8 RISC processor that has been optimized for use in energy monitoring systems but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.

You can also find the UC-8112-ME-T-LX model in the Wide Temperature Computers.

Inquire about the MOXA UC-8112-ME-T-LX1 Wide Temperature Computer, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Industrial Computer : Computer
CPU	ARMv7 Cortex-A8 1000 MHz
Supported OS	Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL
OS (pre-installed)	Linux Debian 9 kernel 4.4
System Memory	1 GB DDR3
Graphics Controller	-
Storage Slot	-
Industrial Computer : Interface
LAN	2 x Auto-sensing 10/100 Mbps ports (RJ45 connector)
Magnetic Isolation Protection	1.5 kV built-in
Digital Input/Output Channels	-
Serial Ports	2 x RS-232/422/485 ports, software selectable (RJ45)
USB	1 x USB 2.0 host, type-A connectors
Expansion Slot	-
Industrial Computer : Serial Communication Parameters
Baudrate	300 bps to 921.6 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Industrial Computer : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	-
RS-485-2w	Data+, Data-, GND
Industrial Computer : LED Indicators
System	Power x 1, SD slots x 1, Programmable x 4
LAN	-
Serial	-
Industrial Computer : Power Requirements
Input Voltage	12 to 36
Input Current	500 mA @ 12 VDC
Power Consumption	6 W
Industrial Computer : General
Alert Tools	External RTC (real-time clock)
Automatic Reboot Trigger	External WDT (watchdog timer)
MTBF	535,916 hrs
Industrial Computer : Physical Characteristics
Dimensions	141 x 125.6 x 54.8 mm (5.55 x 4.94 x 2.15 in)
Housing	Metal
Operating temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 60950-1; Hazardous Locations: Class I Division 2; Green Product: RoHS, CRoHS, WEEE; Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached); Shock: IEC 60068-2-27; Telcordia (Bellcore) Standard
Weight	550 g (1.22 lb)
Mounting	DIN-rail mounting, Wall mounting (with optional kit)

Datasheet

MOXA UC-8112-ME-T-LX1 Wide Temperature Computer
