Name: MOXA UC-8112A-ME-T-LX Industrial Computer
Brand: MOXA
Availability: InStock

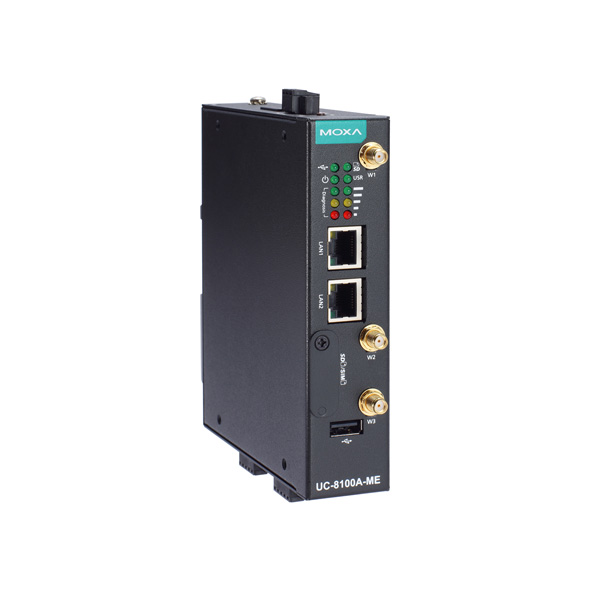

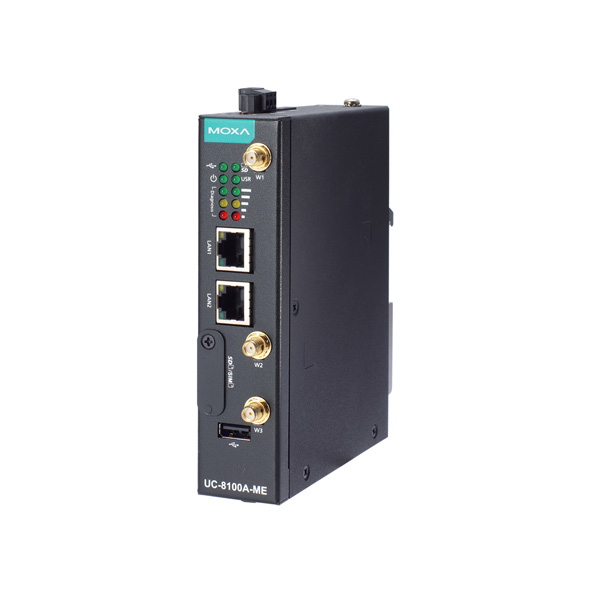

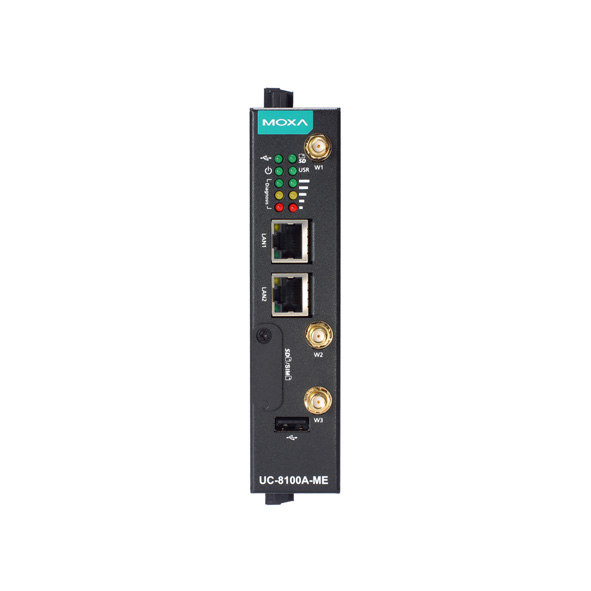

MOXA UC-8112A-ME-T-LX Industrial Computer

CPU: Armv7 Cortex-A8 1 GHz
Pre-installed Linux Debian 9 Kernel 4.4
2 x 10/100 Mbps ports (RJ45 connector)
2 x RS-232/422/485 Serial ports (TB connector)
12 to 36 VDC input power range
Metal body design
DIN-rail and Wall mounting
-40 to 85°C operating temperature

Brand: MOXA
Model: UC-8112A-ME-T-LX

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Vibration (2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Oil & Gas

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA UC-1222A Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2101-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2102-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2104-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2111-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2112-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2112-T-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA UC-2114-T-LX Industrial Embedded Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Computing , Arm-Based Computers , Industrial Computing Solutions , Industrial Computers , Wide Temperature Computers , Wireless Computers , WLAN Computers , Oil & Gas Products , Cellular Computers , Computers , MOXA UC-8100A-ME-T Series

The UC-8100A-ME-T computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports and dual 10/100 Mbps Ethernet ports, as well as a Mini PCIe socket to support cellular modules. These versatile capabilities let users efficiently adapt the UC-8100A-ME-T to a variety of complex communications solutions.

The UC-8100A-ME-T is built around a Cortex-A8 processor that has been optimized for use in energy monitoring systems but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.

Wide-temperature and LTE-enabled models are available. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.

You can also find the UC-8112-ME-T-LX and UC-8112-ME-T-LX1 models in the Wireless Computers.

Easy World Automation offers the easiest way to buy the MOXA UC-8112A-ME-T-LX Industrial Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Industrial Computer : Computer
CPU	Armv7 Cortex-A8 1 GHz
Supported OS	Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL
OS (pre-installed)	Linux Debian 9 Kernel 4.4
System Memory	1 GB DDR3
Graphics Controller	-
Storage Slot	SD slots x 1
Industrial Computer : Interface
LAN	2 x Auto-sensing 10/100 Mbps ports (RJ45 connector)
Magnetic Isolation Protection	1.5 kV (built-in)
Digital Input/Output Channels	-
Serial Ports	2 x RS-232/422/485 ports, software selectable (terminal block)
USB	1 x USB 2.0 host, type-A connectors
Expansion Slot	mPCIe slots x 1
Industrial Computer : Serial Communication Parameters
Baudrate	300 bps to 921.6 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Industrial Computer : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	-
RS-485-2w	Data+, Data-, GND
Industrial Computer : LED Indicators
System	Power x 1, Programmable x 1, SD slots x 1, USB x 1, Diagnostic x 3
LAN	-
Serial	-
Industrial Computer : Power Requirements
Input Voltage	12 to 36 VDC
Input Current	500 mA @ 12 VDC
Power Consumption	6 W
Industrial Computer : General
Alert Tools	External RTC (real-time clock)
Automatic Reboot Trigger	External WDT (watchdog timer)
MTBF	868,326 hrs
Industrial Computer : Physical Characteristics
Dimensions	141 x 125.6 x 33 mm (5.55 x 4.94 x 1.3 in)
Housing	Metal
Operating temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 5 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-8 PFMF; Safety: UL 62368-1, EN 62368-1; Hazardous Locations: Class I Division 2, ATEX, IECEx; Carrier Approvals: AT&T, Verizon; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
Weight	550 g (1.22 lb)
Mounting	DIN-rail mounting, Wall mounting (with optional kit)

Datasheet
