Operating Temperature (-10 to 60°C)
Relative Humidity (5 to 95% non-condensing)
Vibration (IEC 60068-2-6)
MarineThe UC-7101/UC-7110/UC-7112 mini-arm-based communication platforms are ideal for embedded applications. The computers come with 1 or 2 RS-232/422/485 serial ports and single or dual 10/100 Mbps Ethernet LAN ports to provide users with a versatile communication platform.
The UC-7101/UC-7110/UC-7112 platforms use the Arm9 CPU. The architecture and modern semiconductor technology used in the Arm9 CPU are designed to provide the CPU with a powerful computing engine and many useful communication functions, without generating too much heat. The built-in 8 or 16 MB NOR Flash ROM and 16 or 32 MB SDRAM provide plenty of storage, and the SD slot (UC-7101 and UC-7112 only) provides users with flexible storage expansion to run applications that generate a lot of data.
The dual or single LAN ports built into the Arm9 make the UC-7101/7110/UC-7112 computers ideal communication platforms for data acquisition and protocol conversion applications, and the 1 or 2 RS-232/422/485 serial ports allow you to connect a variety of serial devices.
The preinstalled μClinux or Linux operating system provides an open platform for software development. This means that software written for desktop PCs can be easily ported to a UC-7101, UC-7110, or UC-7112 embedded computer with a GNU cross compiler, eliminating the need to spend time modifying existing code. The operating system, device drivers, and your own software can all be stored in the UC-7101/UC-7110/UC7112’s flash memory.

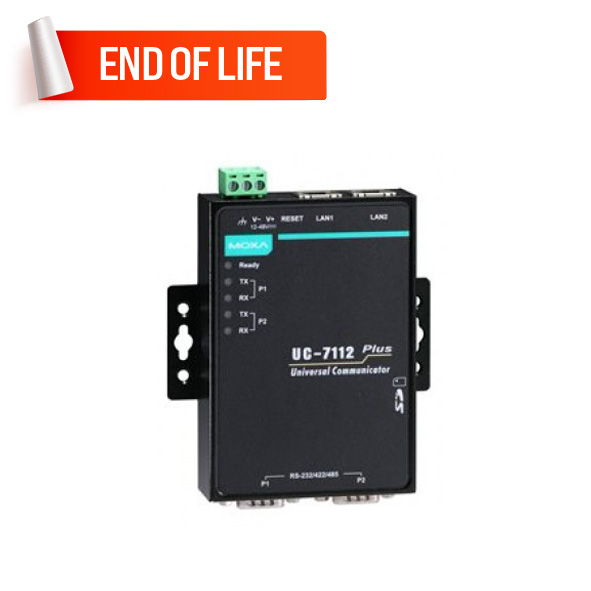

End of Life Product - Replacement Available
Please note that the UC-7100 Series has been phased out and replaced by the UC-2100 Series.
Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA UC-7112-LX Plus Industrial Embedded Computer through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
| Industrial Computer : Computer | |
| CPU | MOXA ART Arm9, 192 MHz |
| Supported OS | Linux kernel 2.6 |
| OS (pre-installed) | Linux kernel 2.6 |
| System Memory | Flash: 16 MB, SDRAM: 32 MB |
| Graphics Controller | - |
| Storage Slot | 1 x SD slot |
| Industrial Computer : Interface | |
| LAN | 2 x Auto-sensing 10/100 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV built-in |
| Digital Input/Output Channels | No |
| Serial Ports | 2 x RS-232/422/485 software-selectable (DB9 male) |
| USB | No |
| Expansion Slot | No |
| Industrial Computer : Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Industrial Computer : Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Industrial Computer : LED Indicators | |
| System | 1 x Ready, 1 x SD |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Industrial Computer : Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 170 mA @ 24 VDC, 340 mA @ 12 VDC |
| Power Consumption | 4.5 W (max.) |
| Industrial Computer : General | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | - |
| MTBF | 148,980 hrs |
| Industrial Computer : Physical Characteristics | |
| Dimensions | 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in) |
| Housing | Metal |
| Operating temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 80°C (-4 to 176°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24, EN 61000-6-2/-6-4, EN 61000-3-2 Class A, EN 61000-3-3; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-11 DIPs, IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, DNV 2.0, IEC 60068-2-2, DNV 2.0, IEC 60068-2-30, DNV 2.0; Safety: EN 60950-1, IEC 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; MIL-HDBK-217F; Telcordia SR332 |
| Weight | 190 g (0.42 lb) |
| Mounting | DIN-rail mounting (with optional kit), Wall mounting, Wall mounting (standard) |
