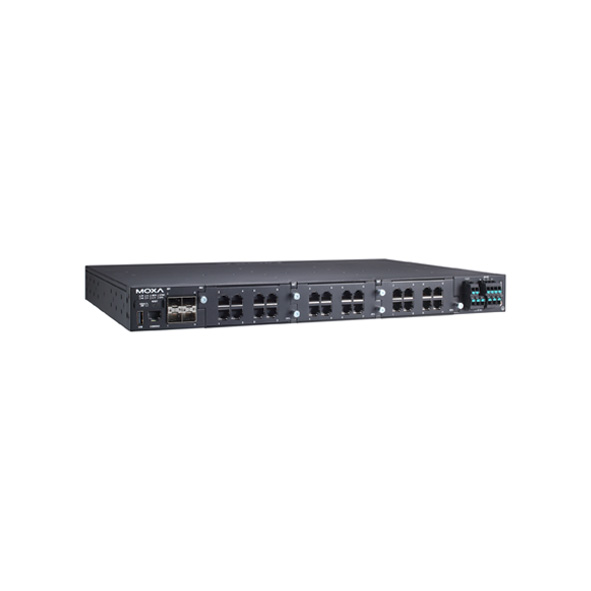

Name: MOXA RKS-G4028-4GS-2LV-T Rackmount Ethernet Switch
Brand: MOXA
Availability: InStock

MOXA RKS-G4028-4GS-2LV-T Rackmount Ethernet Switch

Modular Managed Ethernet Switch
4 x 100/1000BaseSFP Slots
3 x Module slots for any 8-port or 6-port FE/GE modules
24/48 VDC Redundant dual power inputs
Rackmount installation design
-40 to 75°C Operating Temperature

Brand: MOXA
Model: RKS-G4028-4GS-2LV-T

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Freefall (IEC 60068-2-32)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)

Factory Automation
Power Utility
Railway Transportation
Road Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Ethernet Switches , Industrial Data Communications , Managed Ethernet Switches , Layer 2 Managed Switches , Layer 3 Managed Switches , Layer 2 Switches , Layer 3 Switches , PoE Switches , Managed Switches , Rackmount Switches , Rackmount Ethernet Switches , Industrial Ethernet Switches , Factory Automation Products , Power Utility Products , Road Transportation Products , Railway Transportation Products , Switches , MOXA RKS-G4028 Series

The RKS-G4028 Series is designed to meet the rigorous demands of mission-critical applications for industry and business, such as power substation automation systems (IEC 61850-3, IEEE 1613), railway applications (EN 50121-4), and factory automation systems. The RKS-G4028 Series’ Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on wiring costs.

The modular design of the RKS-G4028 Series also makes network planning easy and allows greater flexibility by letting you install up to 28 Gigabit ports with various connector types.

You can also find the RKS-G4028-4GS-2HV-T, RKS-G4028-4GS-HV-T, and RKS-G4028-4GS-LV-T models in the Rackmount Ethernet Switches.

Enjoy the ease of online inquiries for the MOXA RKS-G4028-4GS-2LV-T Rackmount Ethernet Switch. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports	28 Ports
10/100Mb RJ45 (Megabit) Ports	Up to 24 ports
10/100/1000Mb RJ45 (Gigabit) Ports	Up to 24 ports
100Mb Fiber optic multi mode (Megabit) Ports	Up to 24 ports
100Mb Fiber optic single mode (Megabit) Ports	Up to 24 ports
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	Yes : 4 Slots (Up to 24 slots)
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 3 x Module slots for any 8-port or 6-port FE/GE modules, 1 x Alarm Contact Channel, 1 x USB Port (Type A connector), 1 x MicroSD card, 1 x RS-232 Console port (RJ45 connector)
switch and hub : Features and capabilities
Backup	Yes : ABC-02
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	Max. 2.53 A @ 24 VDC, Max. 1.25 A @ 48 VDC
Power Input Plugin ( Redundant )	Yes
Input Voltage	24/48 VDC
Operating Voltage	18 to 72 VDC
Power Consumption	Max. 60.72 W @ 24 VDC, Max. 60 W @ 48 VDC
switch and hub : General
Fan / Fanless	Fanless
MTBF	449,160 hours
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 2
Switch type	Managed
Port Aggregation	Yes
switch and hub : Physical Characteristics
Dimensions	440 x 44 x 300 mm (17.32 x 1.37 x 11.81 in)
Housing	-
Installation	Rack mounting
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: EN 62368-1, UL 62368-1, UL 61010; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; Traffic Control: NEMA TS2; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIP; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	5200 g (11.46 lb)
switch and hub : Standards and protocols
Protocols and work standards	STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, MRP, Link Aggregation, Network Loop Protection, MSTP, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, EtherNet/IP, Modbus TCP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog, PTP
Protocols and management standards	IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Fiber check, DHCP Relay Agent (Option 82), Port Mirroring (SPAN, RSPAN), GMRP, GVRP, GARP, 802.1Q, IGMP Snooping v1/v2/v3, IGMP Querier
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
