Relative Humidity (5 to 95% non-condensing)

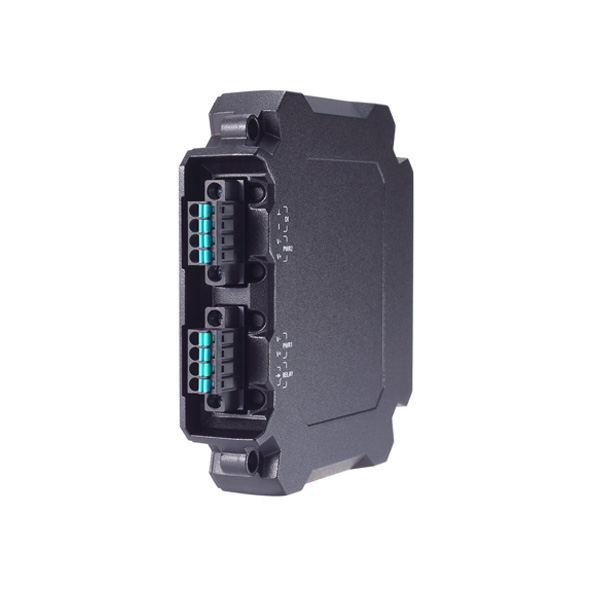

Vibration (ISTA 1A)The PWR-100 Power Module Series is designed for Moxa’s
EDS-4000/G4000 Series switches. The power modules allow supported switches to
use 12/24/48 VDC or 110/220 VDC/VAC.
You can also find the PWR-100-LV, PWR-101-LV-BP-I, and PWR-105-HV-I models in the Power supplies.
Explore our extensive range of industrial automation products such as MOXA PWR-103-LV-VB-I Power Module in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.
| Power supply : Power Requirements | |
| Operating Voltage | 12 to 57 VDC (> 52 VDC for PoE+ output recommended) |
| Output | - |
| Over-voltage Protection | - |
| Reverse Polarity Protection | Supported |
| Power supply : Physical Characteristics | |
| Dimensions | 103 x 98 x 39.9 mm (4.06 x 3.86 x 1.57 in) |
| Housing | - |
| Weight | 244 g (0.54 lb) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | The operating temperature is dependent on the EDS-4000/G4000 switch the module is installed in. Please refer to the respective EDS-4000/G4000 Series datasheet for more information. |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Installation | Rotatable design for versatile installation |
| Standards and Certifications | Safety: EN 62368-1 (LVD); EMI: FCC Part 15 Subpart B Class A; EMC: EN 55032/35, EN 61000-6-2/-6-4; EMS: EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 4; Vibration: ISTA 1A |
| MTBF | - |
| Power supply : Supported Series | |
| Supported Series | EDS-4008 Series, EDS-4012 Series, EDS-G4012 Series (Determined for the -LVB/-LVB-T models, PoE support) |
| video server : Power Requirements | |
| Input | 12/24/48 VDC |
