Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing).png)
IP protection (IP30)
Factory Automation
Railway Transportation

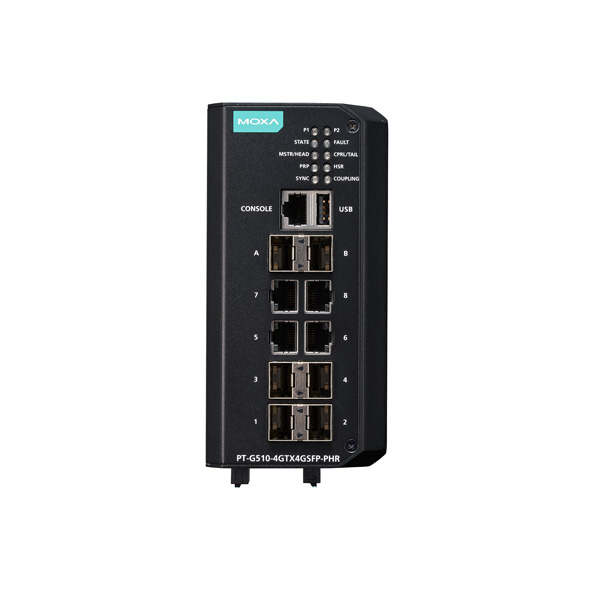

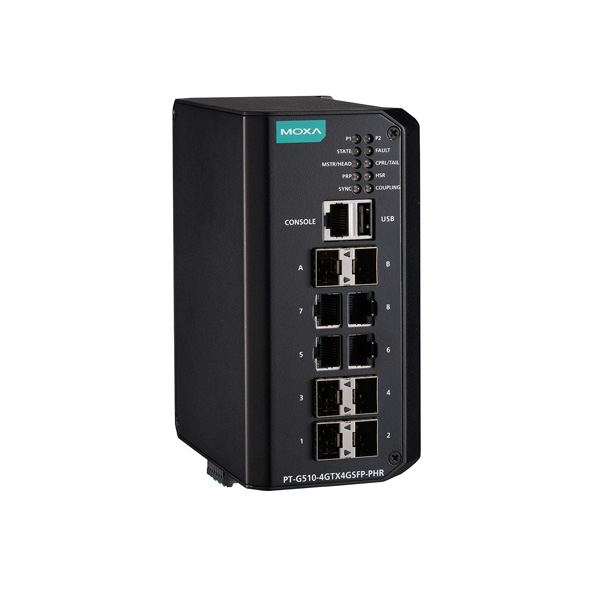

Power UtilityThe PT-G510 Series is designed to deliver the highest level
of system availability and data integrity for mission-critical applications in
digital substations that demand zero-recovery-time redundancy. The PT-G510
Series supports PRP/HSR to achieve seamless redundancy for substations and
process automation systems. Hardware-based IEEE 1588v2 PTP is also supported
for time-critical applications. Featuring a highly durable design, the PT-G510
Series is certified for IEC 61850-3 Edition 2 Class 2 to fulfill demanding
requirements in substation applications.
The PT-G510 Series comes with eight 100/1000BaseT(X)
Ethernet ports or 100/1000BaseSFP slots with two dedicated 100/1000BaseSFP
PRP/HSR ports combined with support for a complete redundancy protocol suite
including PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability.
The PT-G510 Series further supports GOOSE Check to efficiently monitor GOOSE
packets and features a built-in MMS server based on IEC 61850-90-4 switch data
modeling for power SCADA systems.
You can also find the PT-G510-4GTX4GSFP-PHR-HV-CT, PT-G510-4GTX4GSFP-PHR-WV, and PT-G510-4GTX4GSFP-PHR-WV-CT models in the DIN-Rail Ethernet Switches.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the MOXA PT-G510-4GTX4GSFP-PHR-HV Managed Ethernet Switch through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
| switch and hub : Interface | |
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | No |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Yes : 4 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | No |
| 100Mb Fiber optic single mode (Megabit) Ports | No |
| 100Mb SFP Fiber optic (Megabit) Ports | No |
| 1000Mb SFP Fiber optic (Gigabit) Ports | Yes : 6 Ports |
| 10/100Mb (Megabit) POE Ports | No |
| 10/100/1000Mb (Gigabit) POE Ports | No |
| Other ports | Yes : 1 x RS-232 Console Port (RJ45 connector), 1 x USB Port (Type A connector) |
| switch and hub : Features and capabilities | |
| Backup | Yes : ABC-02 |
| switch and hub : LED Indicators | |
| LED Per Port | Yes |
| switch and hub : Power Requirements | |
| Input Current | 0.5 A @ 110-220 VAC, 0.3 A @ 110-220 VDC |
| Power Input Plugin ( Redundant ) | No |
| Input Voltage | 110-220 VAC, 110-220 VDC (88 to 300 VDC, 85 to 264 VAC), Dual power inputs |
| Operating Voltage | 110-220 VDC/VAC |
| Power Consumption | - |
| switch and hub : General | |
| Fan / Fanless | Fanless |
| MTBF | 688,584 hrs |
| switch and hub : Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | Yes |
| switch and hub : Physical Characteristics | |
| Dimensions | 74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in) |
| Housing | - |
| Installation | DIN-rail mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, EN 61000-4-11; Power Substation: IEC 61850-3 Edition 2.0 Class 2, IEEE 1613; Railway: EN 50121-4; Safety: IEC 62368-1, UL 62368-1; IP30; Telcordia (Bellcore) Standard TR/SR |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1476 g (3.25 lb) |
| switch and hub : Standards and protocols | |
| Protocols and work standards | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring, MRP, HSR, PRP, Coupling, RSTP grouping |
| Protocols and management standards | HTTPS, Dying Gasp, Back Pressure, Flow Control, DHCP Option 66/67/82, Fiber check, Flow control, LLDP, Port Mirror, SNMP, Inform, BOOTP, DHCP Server/Client, HTTP, IPv4/IPv6, RARP, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, IGMP v1/v2/v3, GMRP, GVRP, 802.1Q, QinQ VLAN |
| switch and hub : Package Checklist | |
| Hardware installation guide | Yes |
| Power adapter | No |
| Power cable | No |
