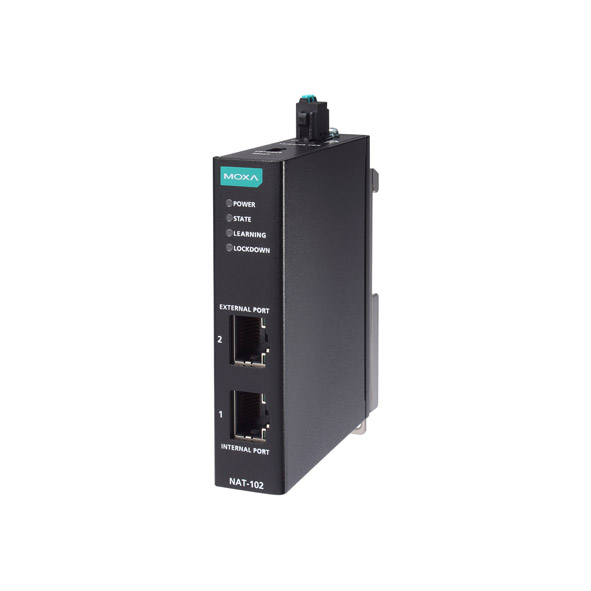

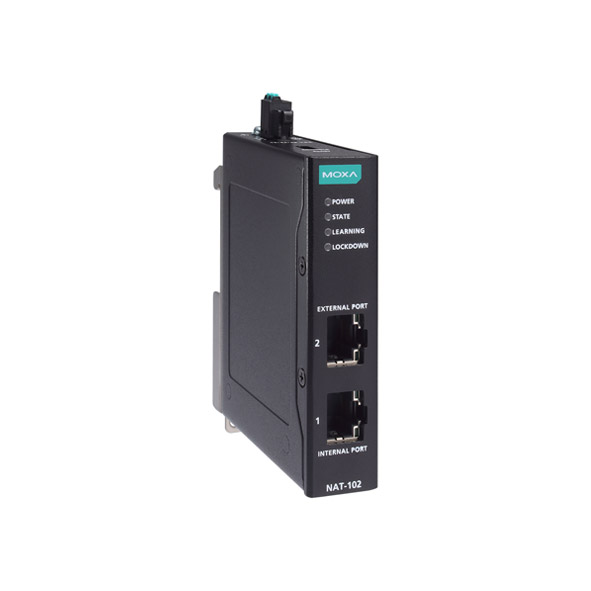

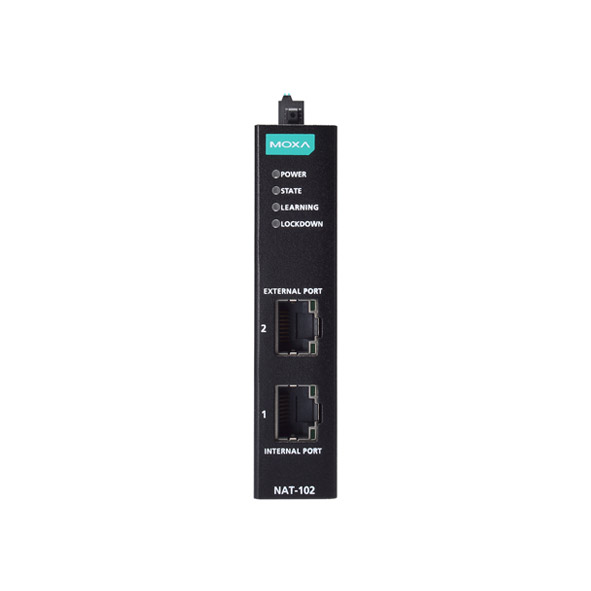

Name: MOXA NAT-102-T Industrial Secure Router
Brand: MOXA
Availability: OutOfStock

MOXA NAT-102-T Industrial Secure Router

2-Port Industrial Network Address Translation
2 x 10/100BaseT(X) Ports (RJ45 connector)
12/24/48 VDC input power range
Metal body design
DIN-rail and Wall mounting
-40 to 75°C operating temperature

Brand: MOXA
Model: NAT-102-T

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Railway Transportation
Road Transportation
Factory Automation
Oil & Gas

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Industrial Data Communications , Industrial Routers And Firewalls , Industrial Secure Routers , Secure Routers , Routers , Industrial Routers , Factory Automation Products , Road Transportation Products , Railway Transportation Products , Oil & Gas Products , MOXA NAT-102 Series

The NAT-102 Series is an industrial NAT device designed to simplify the IP configuration of machines in existing network infrastructure in factory automation environments. The NAT-102 Series provides complete NAT functionality to adapt your machines to specific network scenarios without complicated, costly, and time-consuming configurations. These devices also protect the internal network from unauthorized access by outside hosts.

Quick and User-friendly Access Control

The NAT-102 Series’ Auto Learning Lock feature automatically learns the IP and MAC address of locally connected devices and binds them to the access list. This feature helps you manage access control and makes device replacements much more efficient.

Industrial-grade and Ultra-compact Design

The NAT-102 Series’ rugged hardware makes these NAT devices ideal for deployment in harsh industrial environments, featuring wide-temperature models that are built to operate reliably in hazardous conditions and extreme temperatures of -40 up to 75°C. Moreover, the ultra-compact size allows the NAT-102 Series to be easily installed into cabinets.

You can also find the NAT-102 model in the Industrial Secure Routers.

Easy World Automation offers the easiest way to buy the MOXA NAT-102-T Industrial Secure Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

ROUTER : INTERFACE
Ethernet Ports	2 x 10/100BaseT(X) Ports (RJ45 connector)
Serial Ports	1 x RS-232 Console Port (USB Type-C connector)
Input/Output Channels	No
Alarm Contact Channels	No
ROUTER : SOFTWARE SPECIFICATIONS
Management	Web Console (HTTP/HTTPS), LLDP, Telnet, TFTP, HTTPS, SSH
Routing Redundancy	-
Security	Secure Boot, Trust access control
Time Management	NTP Server/Client
Encryption	-
Authentication	-
ROUTER : LED INTERFACE
LED Indicators	POWER, STATE, LEARNING, LOCKDOWN
ROUTER : GENERAL
Supported Protocols	-
MTBF	2,135,469 hrs
ROUTER : POWER REQUIREMENTS
Input Voltage	12/24/48 VDC
Input Current	0.196 A @ 12 VDC, 0.100 A @ 24 VDC, 0.056 A @ 48 VDC
Operating Voltage	9.6 to 60 VDC
Overload Current Protection	No
Reverse Polarity Protection	Supported
Power Connector	Removable terminal block
ROUTER : PHYSICAL CHARACTERISTICS
Housing	Metal
Dimensions	20 x 73 x 90 mm (0.79 x 2.87 x 3.54 in)
Weight	210 g (0.47 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: UL 62368-1; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Traffic Control: NEMA TS2; Railway: EN 50121-4; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Telcordia (Bellcore), GB
