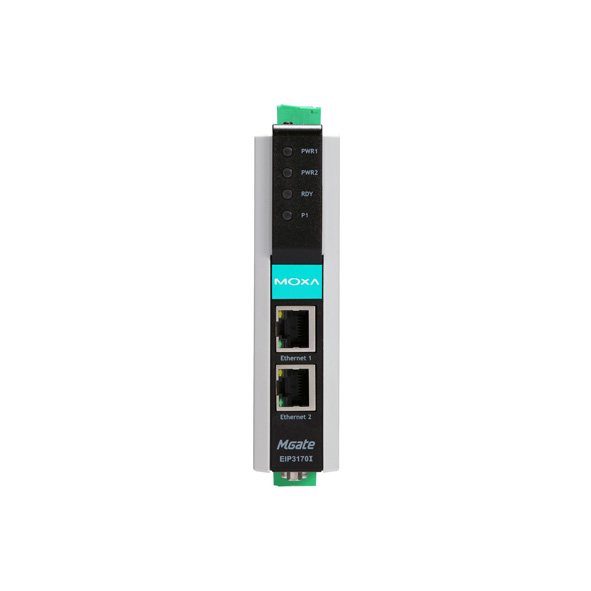

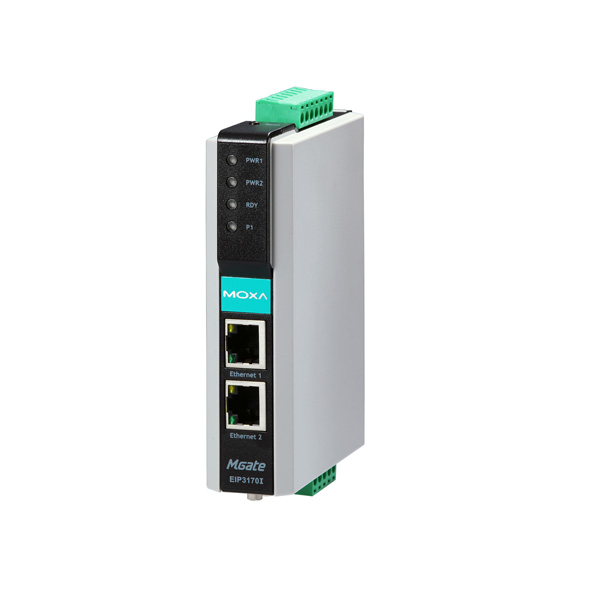

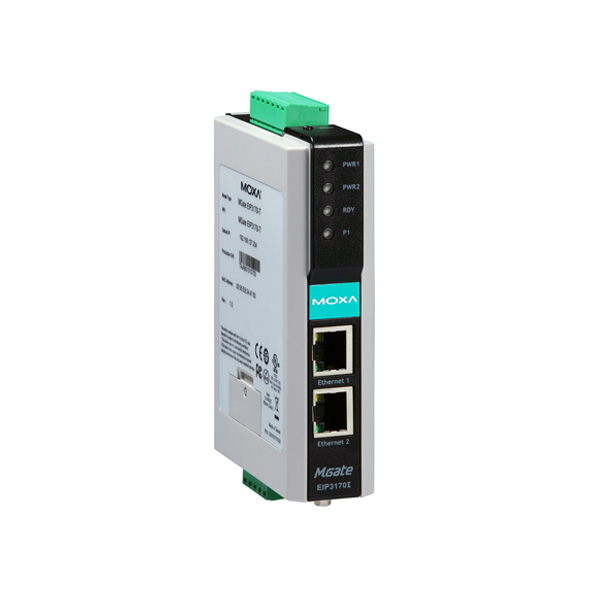

Name: MOXA MGate EIP3170-T Industrial Ethernet Gateway
Brand: MOXA
Availability: OutOfStock

MOXA MGate EIP3170-T Industrial Ethernet Gateway

Protocol conversion from EtherNet/IP to DF1
2 x 10/100BaseT(X) Ports (RJ45 connector)
1 x RS-232/422/485 Serial port (DB9 male, Terminal block)
12 to 48 VDC Redundant dual power inputs
IP30-rated Metal and Plastic body design
-40 to 75°C operating temperature range

Brand: MOXA
Model: MGate EIP3170-T

0 reviews • Write a review

Datasheet

Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)
IP protection (IP30)
Relative Humidity (5 to 95% non-condensing)
Operating Temperature (-40 to 75°C)
Vibration (IEC 60068-2-6, IEC 60068-2-64)

Oil & Gas
Marine

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101-MB-PBS-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101I-MB-PBS-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5101-PBM-MN Industrial Ethernet Gateways

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Protocol Gateways , Industrial Gateways , Industrial Ethernet Gateways , Ethernet Gateways , Industrial EtherNet/IP Gateways , EtherNet/IP Gateways , EtherNet/IP , Industrial Data Communications , Oil & Gas Products , Marine Products , Gateways , MOXA MGate EIP3170/MGate EIP3270 Series

MGate™ EIP3000 gateways provide Ethernet/IP-to-DF1 protocol conversion for users who need to connect Allen Bradley PLCs to an EtherNet/IP network. With several innovative functions, the MGate™ Series overcomes the difficulties of connecting legacy serial devices and SCADA software. Both 1 and 2-port gateways are available for use with different-sized control networks.

Protocol Conversion between DF1 and EtherNet/IP

By supporting PCCC objects on CIP, the MGate™ EIP3000 can communicate seamlessly with SCADA software such as RSLinx. For users who develop control software based on EtherNet/IP, the MGate EIP3000 offers the standard interface for connection.

Support for Multiple EtherNet/IP Connections

MGate™ EIP3000 gateways simultaneously support up to 16 EtherNet/IP clients and servers. Each client can send up to 16 requests at a time, and the multiple connection capability can help establish redundancy for more complex control systems.

Windows Utility for Easy Configuration and Traffic Monitoring

Moxa provides a user-friendly Windows utility with multi-language support. The utility supports a traffic monitoring function for EtherNet/IP and DF1 protocols, and not only logs events initiated by the gateway and records all commands and responses that pass through the gateway. The utility helps users determine the root cause of failures and performance bottlenecks.

You can also find the MGate EIP3170I, MGate EIP3270I, and MGate EIP3170I-T models in the Industrial Ethernet Gateways.

Inquire about the MOXA MGate EIP3170-T Industrial Ethernet Gateway, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

industrial gateway : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 2 Ports (Auto MDI/MDI-X connection)
Magnetic Isolation Protection	No
Other ports	No
Protocols	Ethernet: Ethernet/IP (PCCC); Serial: DF1
industrial gateway : Serial port specifications
Number of Ports	1 Port
Console Port	-
Connectors	DB9 male for RS-232, Terminal block for RS-422/485
Serial Standards	RS-232, RS-422
Isolation	No
industrial gateway : Serial Communication Parameters
Data Bits	8
Stop Bits	1, 2
Parity	None, Even, Odd
Flow Control	RTS/CTS, DTR/DSR (RS-232 only)
Baudrate	1200 bps to 921.6 kbps
industrial gateway : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	-
RS-485-4w Signals	-
industrial gateway : General
Management	ARP, DHCP Client, SNMPv1, TCP/IP, Telnet, UDP
MTBF	1,344,456 hrs
Industrial Gateway : Memory
microSD Slot	No
industrial gateway : Power Requirements
Input Current	435 mA @ 12 VDC
Input Voltage	12 to 48 VDC
Power Connector	-
industrial gateway : Security
Security	No
Authentication	No
Encryption	No
industrial gateway : Physical Characteristics
Dimensions	with ears: 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in), without ears: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: IEC 60950-1, UL 60950-1, EN 62368-1, UL 508; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; Maritime: DNV; IP30; Telcordia SR332
Housing	Plastic top cover, metal bottom plate
Operating Temperature	-40 to 75°C (-40 to 167°F)
Weight	360 g (0.79 lb)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Installation	-
