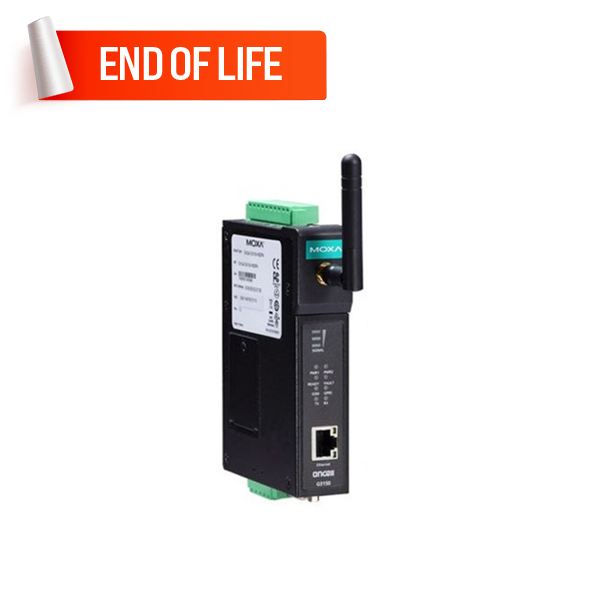

Name: MOXA OnCell G3150 Cellular Advanced IP Gateways
Brand: MOXA
Availability: OutOfStock

MOXA OnCell G3150 Cellular Advanced IP Gateways

Supports GSM/GPRS/EDGE Standards
1 x 10/100BaseT(X) Port (RJ45 connector)
1 x RS-232/422/485 Serial port (DB9-M and TB connectors)
12 to 48 VDC Redundant dual power inputs
IP30-rated Aluminum body design
DIN-rail mounting
-30 to 55°C operating temperature

Brand: MOXA
Model: OnCell G3150

0 reviews • Write a review

Datasheet User Guide

Operating Temperature (-30 to 55°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)

Road Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA CCG-1510-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-TW-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-US-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1520-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z2150 Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z2150-T Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z3150 Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z3150-T Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Cellular Gateways/ Routers/ Modems , Cellular Advanced IP Gateways , Cellular Advanced Gateways , Cellular IP Gateways , Cellular Gateways , Industrial Cellular Routers and Gateways , Industrial Cellular Gateways , Industrial Data Communications , Industrial Cellular Solutions , Gateways , Road Transportation Products , MOXA OnCell G3110/OnCell G3150 Series

The OnCell G3110 and G3150 industrial RS-232 and RS-232/422/485 GSM/GPRS/EDGE IP gateways are designed to transmit data transparently over GSM/GPRS/EDGE cellular networks. The OnCell G3110 and G3150 can transmit data from serial and Ethernet devices to a WAN interface, and come with private IP management software and VPN support for handling IP addresses on cellular networks. The products also have a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field. Two digital inputs also allow you to connect basic I/O devices, and OnCell’s redundant power inputs assure non-stop operation. The OnCell G3110/G3150 series also offers wide temperature models that can withstand extreme temperatures.

End of Life Product - No Replacement

Please note that the OnCell G3110/OnCell G3150 Series has been phased out. You can explore the OnCell 3120-LTE-1 Series in the Industrial Cellular Routers and Gateways.

Experience the convenient way to purchase the MOXA OnCell G3150 Cellular Advanced IP Gateways in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

3g modem : Interface
SIM card slot	Yes : 1 slot (3 V)
Ethernet Ports	Yes : 1 x 10/100BaseT(X) Port (RJ45 connector, auto MDI/MDIX)
USB	No
Digital Input and Output	Yes : 2 electrically isolated inputs (+13 to +30 V for state “1”, +3 to -30 V for state “0”)
Serial port	Yes : 1 x RS-232/422/485 serial port (DB9 male for RS-232 and terminal block for RS/422/485)
Alert Output	Yes : 1 relay output with current carrying capacity of 1 A @ 24 VDC
Band Options	Quad-band 850/900/1800/1900 MHz
Cellular Standards	GSM/GPRS/EDGE
Cellular Antenna Connectors	1 x SMA (female)
WLAN Standards	No
WLAN Antenna Connector	No
GPS Antenna Connector	No
3g modem : Radio specifications
Radio Connection type	GuaranLink
Maximum data transfer speed of 2G	EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 43Kbps
Maximum data transfer speed of 3G	-
Maximum data transfer speed of 4G	-
WiFi Radio Frequency	No
3g modem : Software Specifications
Routing Redundancy	No
VPN	-
Firewall	NAT, port forwarding, WAN IP filtering
Time Management	-
Management	Utilities: Wireless Search Utility; Configuration and Management Options: SNMP v1/v2c/v3, Web/Telnet/Serial Console, SSH, Remote SMS Control, Caller ID, Auto IP Report; Centralized Device Management, Monitoring and Private IP; Solution: OnCell Central Manager
3g modem : General
LED Indicators	-
MTBF	339,000 hrs
Operating mode	2G gateway
3g modem : Standards and protocols
Protocols	ARP, AT Commands (Virtual Modem), DDNS, DHCP/BOOTP, DNS Relay, HTTP, HTTPS, ICMP, IPSec, SMTP, SNTP, SSH, SSL, TCP/IP, Telnet, UDP
3g modem : Features and capabilities
Send and receive SMS	Yes
3g modem : Security
Security and Encryption	No
Authentication	Local username and password
3g modem : Power Requirements
Power Connector	-
Power Consumption (Output Adapter)	-
Input Voltage	12 to 48 VDC (Redundant dual power inputs)
POE Support	No
Input Current	0.9 A @ 12 VDC; 0.23 A @ 48 VDC
Reverse Polarity Protection	Supported
3g modem : Buttons
Power button	No
Reset	No
3g modem : Physical Characteristics
Installation	DIN-rail mounting
Dimensions	28 x 126 x 93 mm (1.1 x 4.94 x 3.64 in)
Housing	Aluminum, providing IP30 protection
Weight	0.44Kg
Operating Temperature	-30 to 55°C (-22 to 131°F)
Storage Humidity	5 to 95% (non-condensing)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Type of Use	Industrial environment
Standards and Certifications	Safety : UL 60950-1; EMC : FCC Part 15 Subpart B Class A, EN 55022 Class A, EN 55024; Radio : FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511, EN 301 908; IP30; Telcordia SR332

Datasheet User Guide
