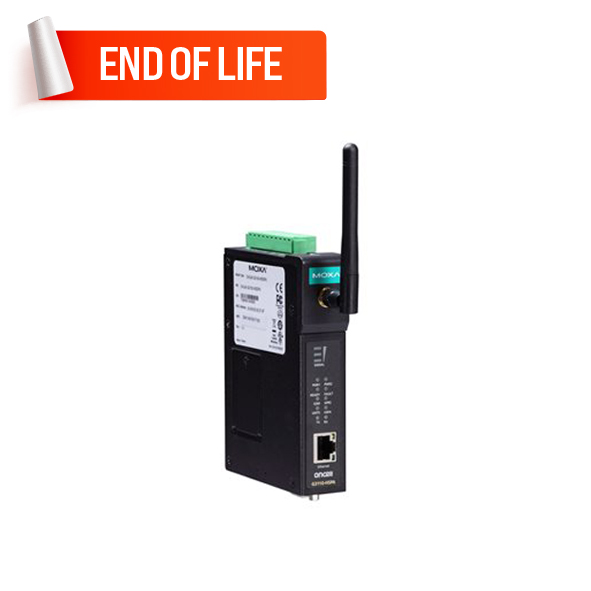

Name: MOXA OnCell G3110-HSPA-T Cellular Advanced IP Gateways
Brand: MOXA
Availability: OutOfStock

MOXA OnCell G3110-HSPA-T Cellular Advanced IP Gateways

Supports GSM, GPRS, EDGE, UMTS, HSPA Standards
1 x 10/100BaseT(X) Port (RJ45 connector)
1 x RS-232 Serial port (DB9 female connector)
IP30-rated Aluminum body design
12 to 48 VDC Redundant dual power inputs
DIN-rail mounting
-30 to 70°C operating temperature

Brand: MOXA
Model: OnCell G3110-HSPA-T

0 reviews • Write a review

Datasheet User Guide

Operating Temperature (-30 to 70°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Freefall (IEC 60068-2-31)

Road Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA CCG-1510-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-TW-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1510-US-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA CCG-1520-T Industrial Cellular Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z2150 Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z2150-T Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z3150 Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA NPort Z3150-T Serial to Zigbee Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Cellular Gateways/ Routers/ Modems , Cellular Advanced IP Gateways , Cellular Advanced Gateways , Cellular IP Gateways , Cellular Gateways , Industrial Cellular Routers and Gateways , Industrial Cellular Gateways , Industrial Data Communications , Industrial Cellular Solutions , Gateways , Road Transportation Products , MOXA OnCell G3100-HSPA Series

The OnCell G3110/G3150-HSPA Series of high-speed industrial-grade IP gateways are intelligent wireless communication platforms that connect your Ethernet and serial devices over a cellular TCP/IP network. The OnCell G3110/G3150-HSPA Series offers connectivity to all five HSPA/UMTS frequency bands and quad GSM/GPRS/EDGE frequency bands used in Europe and the United States, allowing the most flexible global deployment on the best available network.

The OnCell G3110/G3150-HSPA products come with private IP management software and support VPN for handling IP addresses on cellular networks. A built-in relay output can be configured to indicate the priority of events when notifying or warning engineers in the field. Two digital inputs allow you to connect basic I/O devices, and the OnCell G3110/G3150-HSPA Series comes with redundant power inputs to ensure non-stop operation.

End of Life Product - Replacement Available

Please note that the OnCell G3100-HSPA Series has been phased out and replaced by the OnCell 3120-LTE-1 Series and OnCell G4302-LTE4 Series.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA OnCell G3110-HSPA-T Cellular Advanced IP Gateways through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slot	Yes : 1 slot (3 V)
Ethernet Ports	Yes : 1 x 10/100BaseT(X) Port (RJ45 connector)
USB	No
Digital Input and Output	Yes : 2 inputs
Serial port	Yes : 1 x RS-232 serial port (DB9 female connector)
Alert Output	Yes : 1 Output
Band Options	UMTS/HSPA 2100 MHz / 1900 MHz / AWS / 850 MHz / 900 MHz, Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
Cellular Standards	GSM, GPRS, EDGE, UMTS, HSPA
Cellular Antenna Connectors	1 x SMA female
WLAN Standards	No
WLAN Antenna Connector	No
GPS Antenna Connector	No
3g modem : Radio specifications
Radio Connection type	GuaranLink
Maximum data transfer speed of 2G	EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 85.6Kbps
Maximum data transfer speed of 3G	14.4 Mbps download speed, 5.76 Mbps upload speed
Maximum data transfer speed of 4G	-
WiFi Radio Frequency	No
3g modem : Software Specifications
Routing Redundancy	No
VPN	-
Firewall	NAT, port forwarding, WAN IP filtering
Time Management	SNTP
Management	ARP, DDNS, DHCP Server/Client, BOOTP, DNS Relay, HTTP, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, Web Console, Wireless Search Utility, Serial Console, Telnet Console, Remote SMS Control, OnCell Central Manager, GuaranLink
3g modem : General
LED Indicators	-
MTBF	826,202 hrs
Operating mode	Router, 3G Modem
3g modem : Standards and protocols
Protocols	-
3g modem : Features and capabilities
Send and receive SMS	No
3g modem : Security
Security and Encryption	Security: HTTPS/SSL, SSH
Authentication	No
3g modem : Power Requirements
Power Connector	Terminal block
Power Consumption (Output Adapter)	-
Input Voltage	12 to 48 VDC (Redundant dual power inputs)
POE Support	No
Input Current	0.9 A @ 12 VDC, 0.23 A @ 48 VDC
Reverse Polarity Protection	Supported
3g modem : Buttons
Power button	No
Reset	Yes
3g modem : Physical Characteristics
Installation	DIN-rail mounting
Dimensions	28 x 126 x 93 mm (1.1 x 4.94 x 3.64 in)
Housing	Aluminum
Weight	445 g (0.98 lb)
Operating Temperature	-30 to 70°C (-22 to 158°F)
Storage Humidity	5 to 95% (non-condensing)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Type of Use	Industrial environment
Standards and Certifications	Safety: UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Radio Frequency; Freefall: IEC 60068-2-31; IP30; Telcordia SR332

Datasheet User Guide
