Operating Temperature (-30 to 70°C)
Relative Humidity (5 to 95% non-condensing).png)
IP protection (IP30)

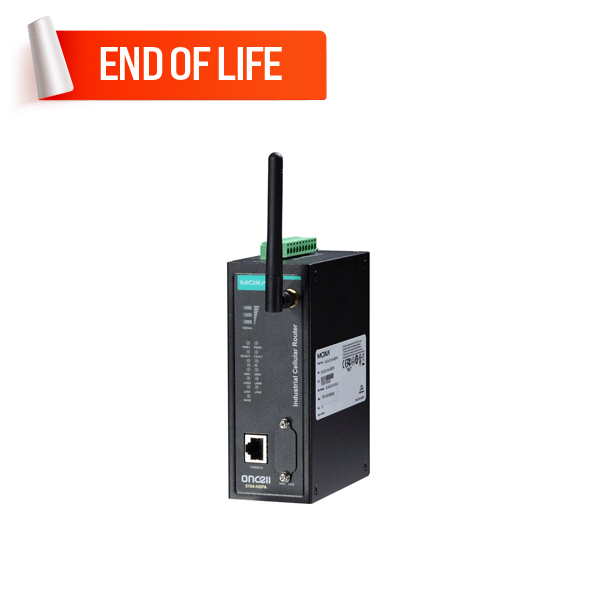

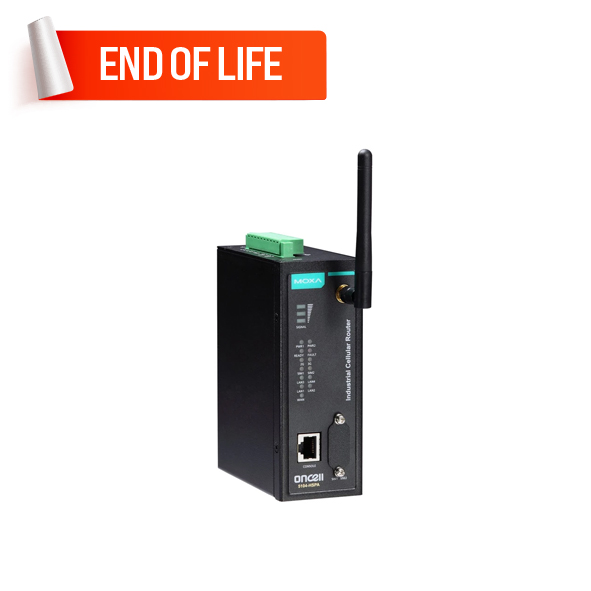

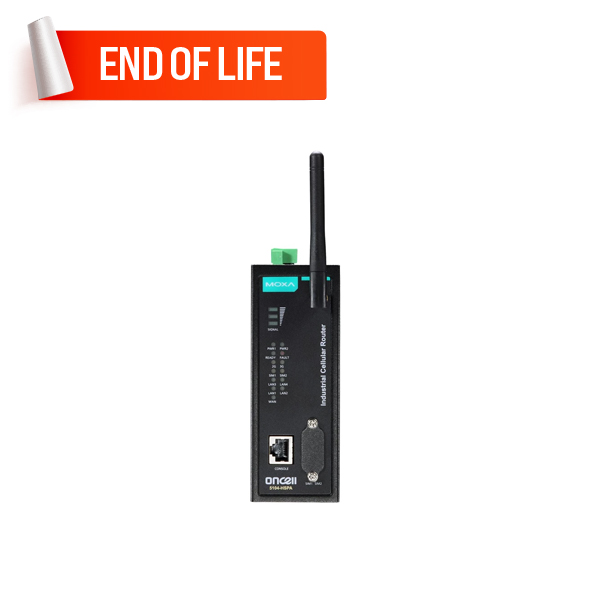

Road TransportationThe OnCell 5104-HSPA high-performance industrial-grade cellular routers allow up to 4 Ethernet-based devices to simultaneously use a single cellular data account for primary or backup network connectivity to remote sites and devices. It provides the functionality of a cellular router, firewall, and switch in one device and is integrated with Moxa’s GuaranLink function to ensure zero data loss and on-demand cellular communication.
The OnCell 5104-HSPA comes with a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field, and the two digital inputs allow you to connect basic I/O devices, such as sensors, to the cellular network. The OnCell 5104HSPA uses 12 to 48 VDC power inputs with a screw-on design for greater reliability, and the Ethernet ports come with 1.5 kV magnetic isolation protection to keep your system safe from unexpected electrical discharges.
End of Life Product - Replacement Available
Please note that the OnCell 5004/5104-HSPA Series has been phased out and replaced by the OnCell G4302-LTE4 Series.
Experience the convenient way to purchase the MOXA OnCell 5104-HSPA-T Dual SIM Industrial Cellular Router in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
| 3g modem : Interface | |
| SIM card slot | Yes : 2 slots (3 V) |
| Ethernet Ports | Yes : 5 x 10/100 Mbps ports (RJ45 connector) |
| USB | No |
| Digital Input and Output | Yes : 2 electrically isolated inputs (+13 to +30 V for state “1” (On), +3 to -30 V for state “0” (Off)) |
| Serial port | Yes : 1 x Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| Alert Output | Yes : 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Band Options | UMTS/HSPA 800 MHz / 850 MHz / AWS MHz / 1900 MHz / 2100 MHz, Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz |
| Cellular Standards | GSM, GPRS, EDGE, UMTS, HSPA |
| Cellular Antenna Connectors | 1 x SMA female |
| WLAN Standards | No |
| WLAN Antenna Connector | No |
| GPS Antenna Connector | No |
| 3g modem : Radio specifications | |
| Radio Connection type | GuaranLink |
| Maximum data transfer speed of 2G | EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 85.6 kbps |
| Maximum data transfer speed of 3G | 14.4 Mbps download speed, 5.76 Mbps upload speed |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | No |
| 3g modem : Software Specifications | |
| Routing Redundancy | No |
| VPN | IPsec VPN |
| Firewall | Filter: ICMP, WAN IP Filtering |
| Time Management | SNTP |
| Management | ARP, BOOTP, DDNS, DHCP Server/Client, DNS, PPPOE, PPP, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, Web Console, Serial Console, Telnet Console, Remote SMS Control, Wireless Search Utility, Auto IP Report, OnCell Central Manager |
| 3g modem : General | |
| LED Indicators | - |
| MTBF | 483,175 hrs |
| Operating mode | Router, 3G Modem |
| 3g modem : Standards and protocols | |
| Protocols | - |
| 3g modem : Features and capabilities | |
| Send and receive SMS | Yes |
| 3g modem : Security | |
| Security and Encryption | HTTPS/SSL, IPsec, SSH |
| Authentication | No |
| 3g modem : Power Requirements | |
| Power Connector | Terminal block |
| Power Consumption (Output Adapter) | - |
| Input Voltage | 12 to 48 VDC (Redundant dual power inputs) |
| POE Support | No |
| Input Current | 0.95 A @ 12 VDC, 0.25 A @ 48 VDC |
| Reverse Polarity Protection | Supported |
| 3g modem : Buttons | |
| Power button | No |
| Reset | Yes |
| 3g modem : Physical Characteristics | |
| Installation | DIN rail and wall mouniting |
| Dimensions | 51 x 135 x 103 mm (2 x 5.32 x 4.16 in) |
| Housing | Aluminum |
| Weight | 650 g (1.43 lb) |
| Operating Temperature | -30 to 70°C (-22 to 158°F) |
| Storage Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | Safety: UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio Frequency: FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511, EN 301 908; IP30; Telcordia SR332 |
