Name: MOXA VPort 36-2L2X Box IP Cameras
Brand: MOXA
Availability: InStock

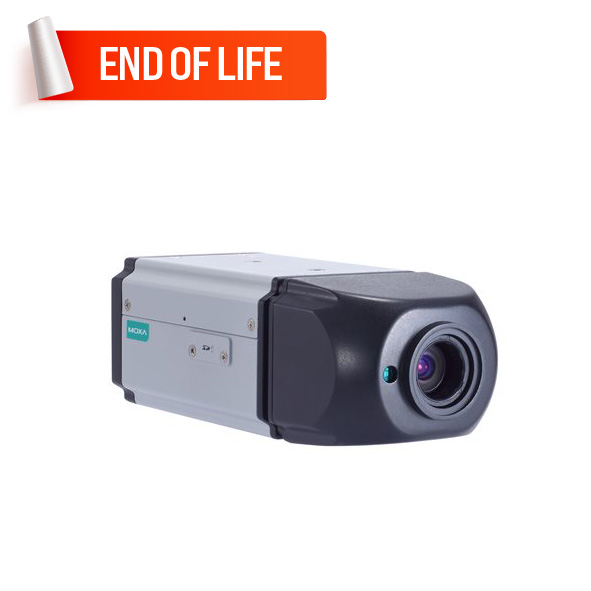

MOXA VPort 36-2L2X Box IP Cameras

Lens: 10 mm (Wide) to 23 mm (Tele)
1 x 10/100BaseT(X) Port (RJ45 connector)
1 x Audio Input (line-in) and 1 x Audio Output (line-out)
12/24 VDC, 24 VAC or PoE (48 VDC) Redundant dual inputs
Metal body design
Corner, Wall, and Pole mount installation design
-25 to 60°C operating temperature range

Brand: MOXA
Model: VPort 36-2L2X

0 reviews • Write a review

Datasheet

Operating Temperature (-25 to 60°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP68)
Freefall (IEC 60068-2-31)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)

IP Surveillance
Factory Automation
Railway Transportation
Road Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA VPort 06-2L25M Onboard IP Camera

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA VPort 06-2L25M-CT Onboard IP Camera

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA VPort 06-2L25M-CT-T Onboard IP Camera

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA VPort 06-2L25M-T Onboard IP Camera

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA VPort 06-2L28M Onboard IP Camera

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA VPort 06-2L28M-T Onboard IP Camera

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA VPort 06-2L36M Onboard IP Camera

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA VPort 06-2L36M-T Onboard IP Camera

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , IP Cameras & Video Servers , IP Cameras , Box IP Cameras , Box Cameras , Railway Transportation Products , Road Transportation Products , Factory Automation Products , Industrial IP Surveillance , IP Surveillance Products , IP Surveillance , Cameras , VPort , MOXA VPort 36-2L Series

The VPort 36-2L rugged 1080P (1920 x 1080) box IP cameras are specially designed for mission-critical applications and extreme weather environments. The cameras have either a 3 to 9 mm or 10 to 23 mm P-iris zoom lens built-in. They support remote zoom and focus control via an IP network, providing convenience and simplicity for camera operation, and can operate in temperatures from -40 to 75°C (-T models) and industrial-grade EMC (EMI/Surge Level 3) protection.

The VPort 36-2L cameras are suitable for the kind of industrial and outdoor environments found with oil and gas, rail, and ITS applications. In addition, the VPort 36-2L supports a light sensor and ICR (IR-cut filter removable) for day and night viewing, advanced WDR (wide dynamic range), and DNR (digital noise reduction), allowing the VPort 36-2L to produce good quality images even in extreme sunlight conditions.

End of Life Product - No Replacement

Please note that the VPort 36-2L Series has been phased out. You can explore the VPort P06HC-1V Series, VPort 06EC-2V Series, and VPort 06-2 Series in the IP Cameras.

Easy World Automation offers the easiest way to buy the MOXA VPort 36-2L2X Box IP Cameras in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

IP Cameras : Camera
Sensor	1/3-in 1080P progressive scan CMOS
Lens	2X zoom: f=10 mm (wide) to 23 mm (tele), F1.2 to F2.3, Diagonal: 13.7° to 31°, Horizontal: 11.4° to 26.9°, Vertical: 6.3° to 14.4°
Camera Angle	-
ICR Control (for day & night)	Auto (light sensor control) or DI control
Synchronization	Internal
White Balance	ATW/AWB
DNR	Built-in 2D/3D DNR
WDR	100 dB
Flickerless Control	Automatic, 50 Hz,60 Hz modes
Image Rotation	Flip, Mirror, 90°, 180°, 270° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
AGC (auto gain control)	2X, 4X, 8X, 16X
Minimum Illumination	Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), B/W: 0.1 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Day & Night	Auto/Color/BW; ICR Control
Electronic Shutter	Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio	Maximum 50 dB (AGC off; DNR on)
IRIS	Auto, P-IRIS
IP Cameras : Interface
10/100BaseT(X) Ports	Yes : 1 x Port (RJ45 connector)
PoE Ports	No
Digital Input/Output Channels	Yes : 1 x Digital Input Channel (Terminal block connector)
Relay Channels	Yes : 1 Channels (max. 24 VDC @ 1 A)
IP Cameras : Audio
Audio Inputs	1 Line-in or MIC-in with 3.5 mm phone jack
Audio Format	Mono, PCM (G.711); AAC
Audio Outputs	1 Line-out, with 3.5 mm phone jack
IP Cameras : Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	4 independent H.264 or MJPEG video streams
Video Viewing	DynaStream™ support for changing the video frame rate automatically, CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, Maximum of 5 simultaneous unicast connections, 50 multicast clients
IP Cameras : Network
Protocols	TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP
IP Cameras : Power Requirements
Input Voltage	12/24 VDC, 24 VAC or PoE (48 VDC), Redundant dual inputs
Input Current	0.91 A @ 12 VDC, 0.38 A @ 24 VDC, 0.24 A @ 48 VDC, 0.8 A @ 24 VAC
Source of Input Power	-
IP Cameras : Alarms
Intelligent Video	Camera tamper
Video Motion Detection	3 independently configurable motion areas
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer	50 MB video buffer for JPEG snapshot images
IP Cameras : Security
Password	User level password protection
Filtering	By IP address
Encryption	HTTPS
Authentication	802.1X
IP Cameras : General
MTBF	630,908 hrs
microSD Slot	SDXC
IP Cameras : Physical Characteristics
Housing	Metal
Dimensions	200 x 90 x 70 mm (7.9 x 3.5 x 2.8 in)
Weight	1.2 kg (2.65 lb)
Installation	Pole mounting (optional), Wall mounting (with optional kit), Corner mounting (with optional kit)
Operating Temperature	-25 to 60°C (-13 to 140°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Standards and Certifications	EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Freefall: IEC 60068-2-31; Safety: UL 60950-1; Shock: IEC 60068-2-27; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Telcordia SR332
Altitude	2000 m
IP Cameras : Minimum Viewing System Requirements
Memory Size	2 GB
Operating System	Windows 7 or above
Browser	Internet Explorer 9.x or above
Multimedia	DirectX 9.0C or above
IP Cameras : Software Development
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers.
Standard	ONVIF Profile S
