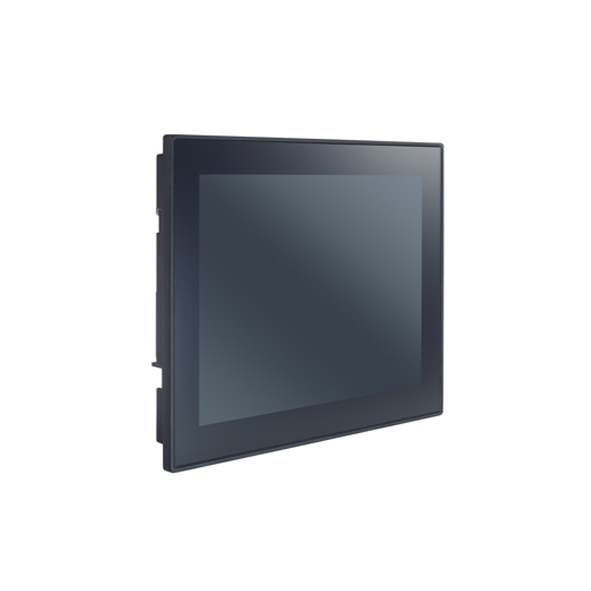

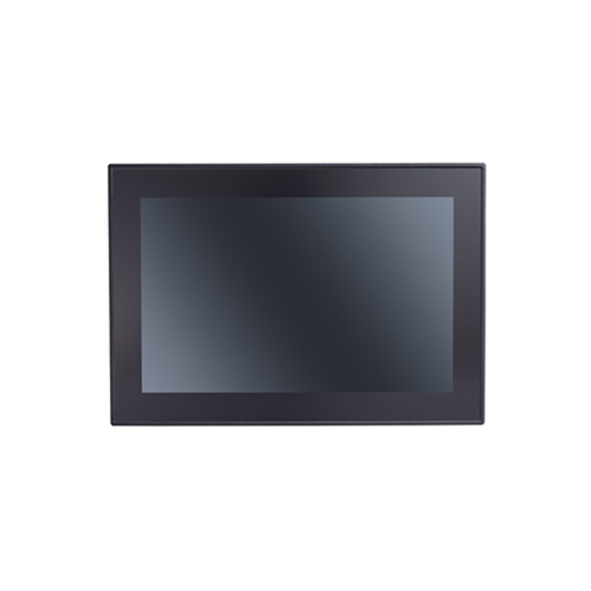

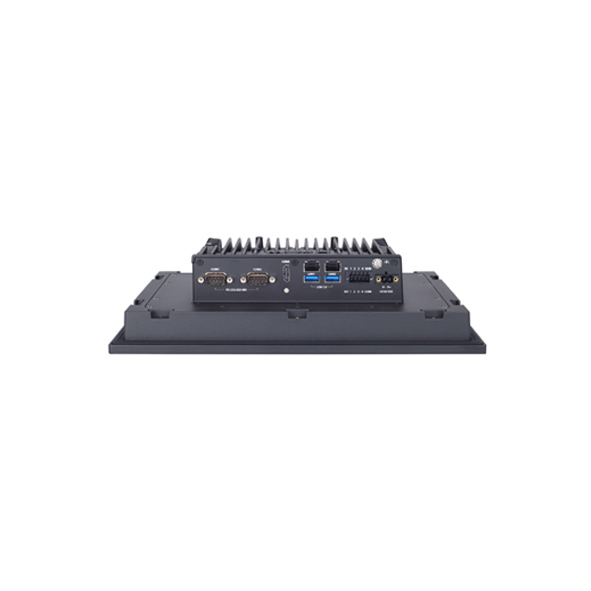

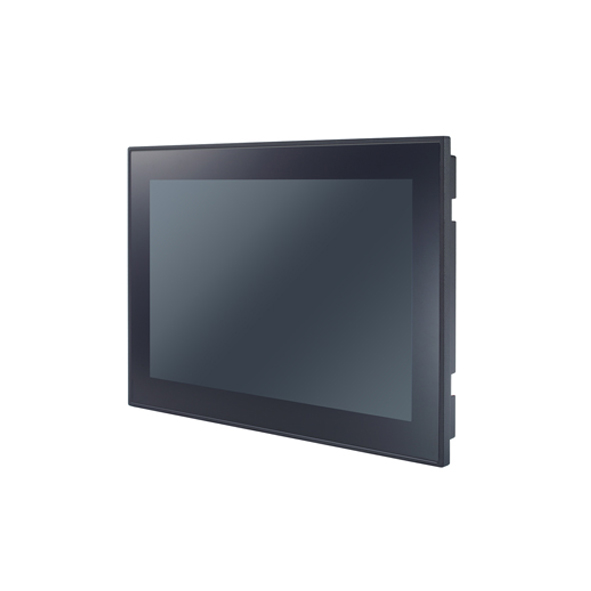

MOXA MPC-3120W-E4-LB-T Panel Computer

MOXA MPC-3120W-E4-LB-T Panel Computer
MOXA MPC-3120W-E4-LB-T Panel Computer
MOXA MPC-3120W-E4-LB-T Panel Computer
MOXA MPC-3120W-E4-LB-T Panel Computer
MOXA MPC-3120W-E4-LB-T Panel Computer
MOXA MPC-3120W-E4-LB-T Panel Computer
MOXA MPC-3120W-E4-LB-T Panel Computer
MOXA MPC-3120W-E4-LB-T Panel Computer
MOXA MPC-3120W-E4-LB-T Panel Computer
  • 12.1-inch panel computer (400 nits)
  • CPU Intel Atom® Elkhart Lake quad-core x6425E
  • 2 x 10/100/1000 Mbps ports (RJ45 connector)
  • 2 x RS-232/422/485 Serial Ports (DB9 male connector)
  • Metal body design (IP66 for front, IP20 for rear)
  • 12/24 VDC input power range
  • -30 to 60°C operating temperature
  • Brand: MOXA
  • Model: MPC-3120W-E4-LB-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-30 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP66)
  • IP protection (IP20)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6, DNV-CG-0339, IEC 60945)
  • Vibration (IEC 60068-2-64, DNV-CG-0339)
  • Hazardous Location (Class 1 Division 2, ATEX/IECEx Zone 2)
  • Oil & Gas
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA EXPC-1519-C1-S1-T Panel Computer
Quickview
MOXA EXPC-1519-C1-S1-T Panel Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EXPC-1519-C1-S2-T Panel Computer
Quickview
MOXA EXPC-1519-C1-S2-T Panel Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EXPC-1519-C1-S3-T Panel Computer
Quickview
MOXA EXPC-1519-C1-S3-T Panel Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EXPC-1519-C7-S1-T Panel Computer
Quickview
MOXA EXPC-1519-C7-S1-T Panel Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EXPC-1519-C7-S2-T Panel Computer
Quickview
MOXA EXPC-1519-C7-S2-T Panel Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EXPC-1519-C7-S3-T Panel Computer
Quickview
MOXA EXPC-1519-C7-S3-T Panel Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EXPC-F2120W-TL1-AC Panel Computer
Quickview
MOXA EXPC-F2120W-TL1-AC Panel Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EXPC-F2120W-TL1-DC Panel Computer
Quickview
MOXA EXPC-F2120W-TL1-DC Panel Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Computing , Industrial Computers , Panel Computers & Displays , Displays and Panel Computers , Panel Computers , Displays , Computers , Industrial Computing Solutions , Oil & Gas Products , Marine Products , MOXA MPC-3120W Series

The MPC-3120W 12.1-inch panel computers with Intel Atom® x6211E dual-core or x6425E quad-core processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-3120W panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-3120W panel computers are designed for the -30 to 60°C temperature range and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the computers a reliable industrial platform for harsh, hot, outdoor environments like oil and gas fields or drilling platforms. The MPC-3120W also features a 400-nit or 1000-nit LCD panel, offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen foran  excellent user experience in outdoor applications.



You can also find the MPC-3120W-E2-T, MPC-3120W-E2-LB-T, and MPC-3120W-E4-T in the Displays and Panel Computers.



Inquire about the MOXA MPC-3120W-E4-LB-T Panel Computer, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Industrial Computer : Computer
CPUIntel Atom® Elkhart Lake quad-core x6425E 2.0 GHz
Supported OSWindows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11 (kernel 5.10), Ubuntu 22.04 LTS (kernel 5.1x), RHEL 9 (kernel 5.14)
OS (pre-installed)-
System Memory8 GB DDR4 2400 MHz (32 GB max)
Graphics ControllerIntel® HD Graphics
Storage SlotCFast slot x 1, SD slots x 1, SD 3.0 interface (SDHC/SDXC)
Industrial Computer : Interface
LAN2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Digital Input/Output Channels4 x Digital inputs, 4 x Digital outputs
Serial Ports2 x RS-232/422/485 port (software-selectable, DB9 male connector)
USB2 x USB 3.0 hosts, type-A connectors
Expansion Slot-
Industrial Computer : Display
Panel Size12.1 in (viewable image)
Aspect Ratio16:10
Response Time27 ms
Contrast Ratio1000:1 (typ.)
Viewing Angles176°/176°
TouchProjective Capacitive touchscreen (PCAP) with Glove Support
Pixels1280 x 800
Pixel Pitch (RGB)0.240 (H) x 0.240 (V) mm
Light Intensity400 nits
Active Display Area261.12 (H) x 163.20 (V) mm
Max. No. of Colors262k, 16.7M (8-bit/color)
Industrial Computer : Serial Communication Parameters
Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow ControlRTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)
Industrial Computer : Serial Signals
RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
Industrial Computer : LED Indicators
SystemPower x 1
LAN2 per port (10/100/1000 Mbps)
Serial-
Industrial Computer : Power Requirements
Input Voltage12/24 VDC
Power Consumption48 W, (max, including full USB loading)
Industrial Computer : Physical Characteristics
Dimensions315 x 220 x 75.7 mm (12.40 x 8.66 x 2.98 in)
HousingMetal
Operating temperature-30 to 60°C (-22 to 140°F)
Storage Temperature-40 to 70°C (-40 to 158°F)
Relative humidity5 to 95% (non-condensing)
Standards and CertificationsEMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV; Environmental Testing: IEC 60068-2-1, DNV-CG-0339, IEC 60068-2-1, IEC 60945, IEC 60068-2-2, DNV-CG-0339, IEC 60068-2-2, IEC 60945, IEC 60068-2-30, DNV-CG-0339; Hazardous Locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2; Maritime: DNV-CG-0339, IEC 60945, IACS E10; Safety: IEC 62368-1, UL 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, DNV-CG-0339, IEC 60945, IEC 60068-2-64, DNV-CG-0339; Green Product: RoHS, CRoHS, WEEE; IP66; IP20
Weight3,000 g (6.61 lb)
MountingPanel mounting
