Operating Temperature (-40 to 80°C)
Relative Humidity (5 to 95% non-condensing).png)

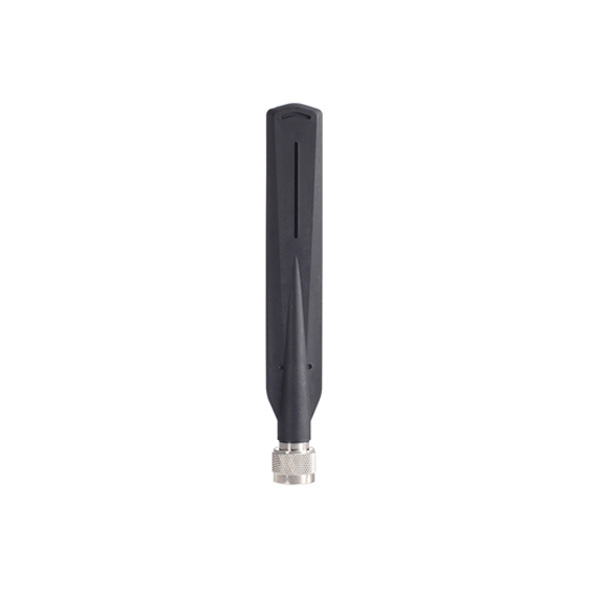

IP protection (IP67)The ANT-WDB-ANM-0502 is an omnidirectional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors. The IP67-rated housing, pole-mounting support, and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.
You can also find the ANT-WDB-ANM-0306 model in the
Antennas.
Easy World Automation offers the easiest way to buy the MOXA ANT-WDB-ANM-0502 WLAN Antenna in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
| Antenna : Antenna Characteristics | |
| Frequency | 2.4 to 2.5, 5.1 to 5.9 GHz |
| Antenna Type | Omni-directional |
| Antenna Gain | 5/2 dBi |
| Connector | N-type (male) |
| Impedance | 50 ohms |
| HPBW/Horizontal | 360° |
| HPBW/Vertical | 65° |
| Polarization | Linear |
| Power Handling | 2 W (max.) |
| V.S.W.R. | 1:2 max. |
| Antenna : Physical Characteristics | |
| Dimensions | 26 mm (1.02 in) |
| Operating Temperature | -40 to 80°C (-40 to 176°F) |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Length | 189.4 mm (7.46 in) |
| Cable Length | - |
| Weight | 72 g (0.16 lb) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| Housing | NY66 |
| Installation | Straight mount |
| IP Rating | IP67 |
