Operating Temperature (-40 to 80°C)
Relative Humidity (5 to 95% non-condensing).png)

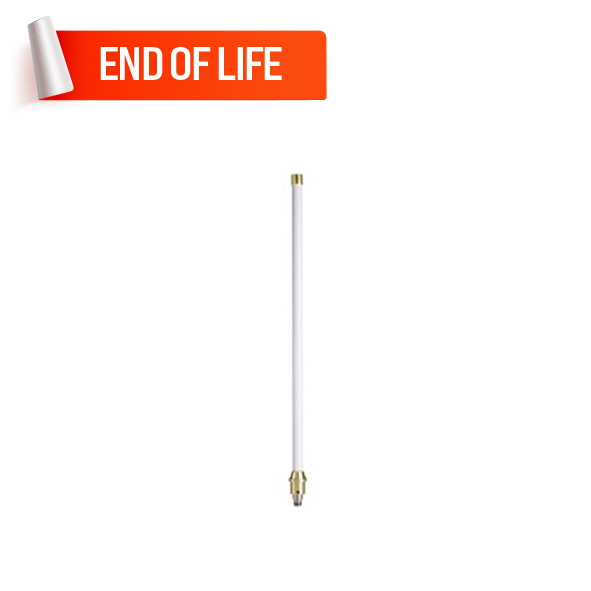

IP protection (IP65)The ANT-WDB-ANF-0609 is an omnidirectional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors. The IP65-rated housing, pole-mounting support, and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.
End of Life Product - Replacement Available
Please note that the ANT-WDB-ANF-0609 Series has been phased
out, and replaced by the ANT-WDB-ONF-0709 Series.
Easy World
Automation offers the easiest way to buy the MOXA ANT-WDB-ANF-0609 WLAN Antenna in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman)
at the lowest price through online inquiring. Our sales experts will get in
touch with you to fulfill all your industrial automation needs.
| Antenna : Antenna Characteristics | |
| Frequency | 2.4 to 2.5 GHz or 5.1 to 5.9 GHz |
| Antenna Type | Omni-directional |
| Antenna Gain | 6/9 dBi |
| Connector | N-type (female) |
| Impedance | 50 ohms |
| HPBW/Horizontal | 360° |
| HPBW/Vertical | 8/10° |
| Polarization | Linear |
| Power Handling | 10 W (max.) |
| V.S.W.R. | 1:1.5 max. |
| Antenna : Physical Characteristics | |
| Dimensions | Diameter: 35 mm (1.38 in), Length: 660 mm (25.98 in) |
| Operating Temperature | -40 to 80°C (-40 to 176°F) |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Length | 660 mm (25.98 in) |
| Cable Length | - |
| Weight | 286 g (0.63 lb) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| Housing | Fiberglass |
| Installation | Pole mount |
| IP Rating | IP65 |
