Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing).png)

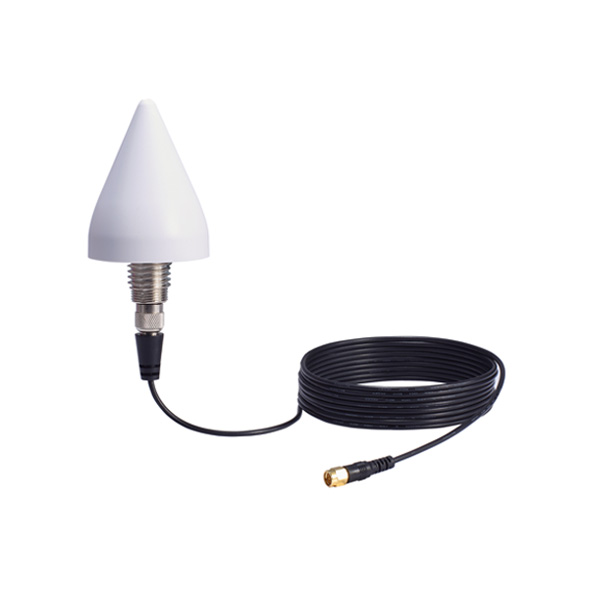

IP protection (IP67)The ANT-GNSS-CSM-02-3m Series is an omnidirectional
cone-shaped antenna suitable for GNSS applications. The antenna provides a gain
of 2 dBic and is designed to operate in temperatures ranging from -40 to 85°C.
You can also find the ANT-WDB-PNF-1011 and the ANT-WSB-PNF-12-02 models in the Antennas.
Enjoy the ease of online inquiries for the MOXA ANT-GNSS-CSM-02-3M GNSS Antenna. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
| Antenna : Antenna Characteristics | |
| Frequency | 1561 to 1606 MHz |
| Antenna Type | Omni-directional |
| Antenna Gain | 2 dBi |
| Connector | SMA (male) |
| Impedance | 50 ohms |
| HPBW/Horizontal | - |
| HPBW/Vertical | - |
| Polarization | Vertical, Linear |
| Power Handling | - |
| V.S.W.R. | < 2.0 (max.) |
| Antenna : Physical Characteristics | |
| Dimensions | φ 60.5 (D) x 79.2 (H) mm |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Length | - |
| Cable Length | 3 m |
| Weight | Without cable and connector: 125 g (0.28 lb) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| Housing | Plastic |
| Installation | Screw mount |
| IP Rating | IP67 |
