Operating Temperature (-40 to 85°C)

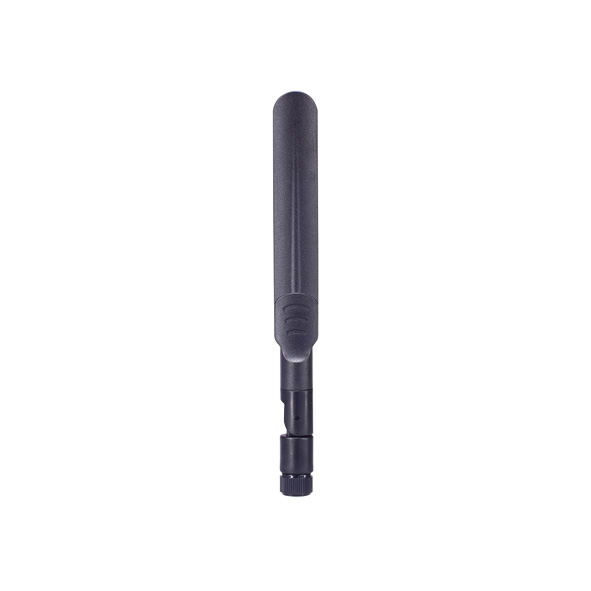

Relative Humidity (5 to 95% non-condensing)The ANT-5G-ASM-03 Series is an omnidirectional lightweight compact antenna suitable for GSM, UMTS, LTE, and 5G NR bands. The antenna provides a gain of 3 dBi and is designed to operate in temperatures ranging from -40 to 85°C.
You can also find the ANT-5G-ASM-02 and ANT-5G-ASM-07 models in the Antennas.
Enjoy the ease of online inquiries for the MOXA ANT-5G-ASM-03 Cellular Antenna. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
| Antenna : Antenna Characteristics | |
| Frequency | 617 to 960 MHz, 1420 to 1561 MHz, 1710 to 2170 MHz, 2300 to 2690 MHz |
| Antenna Type | Omni-directional |
| Antenna Gain | 3.02 dBi @ 617 to 698 MHz (5G NR n71), 0.70 dBi @ 698 to 824 MHz (LTE 700), 0.63 dBi @ 824 to 960 MHz (GSM 850/900), 2.50 dBi @ 1420 to 1561 MHz (LTE Japan B74, 75, 76), 2.83 dBi @ 1710 to 1880 MHz (DCS), 2.91 dBi @ 1850 to 1990 MHz (PCS), 3.65 dBi @ 1920 to 2170 MHz (UMTS1), 3.67 dBi @ 2300 to 2690 MHz (LTE 2600) |
| Connector | SMA (male) |
| Impedance | 50 ohms |
| HPBW/Horizontal | 360° |
| HPBW/Vertical | - |
| Polarization | Vertical, Linear |
| Power Handling | - |
| V.S.W.R. | < 5.85 @ 617 to 960 MHz, < 2 @ 1420 to 1561 MHz, < 3 @ 1710 to 2690 MHz |
| Antenna : Physical Characteristics | |
| Dimensions | - |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Length | 157.5 mm (6.2 in) |
| Cable Length | - |
| Weight | 35.8 g (0.08 lb) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| Housing | Plastic |
| Installation | Straight mount |
| IP Rating | - |
