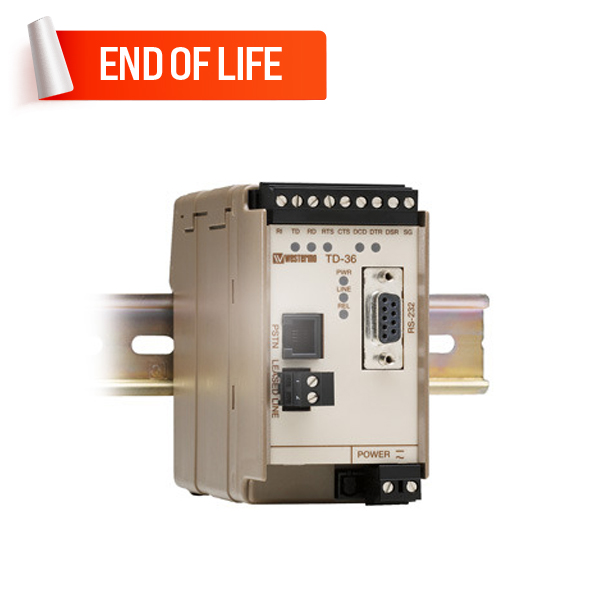

Westermo TD-36 AV Industrial PSTN/Leased Line Modem

Westermo TD-36 AV Industrial PSTN/Leased Line Modem
Westermo TD-36 AV Industrial PSTN/Leased Line Modem
Westermo TD-36 AV Industrial PSTN/Leased Line Modem
Westermo TD-36 AV Industrial PSTN/Leased Line Modem
Westermo TD-36 AV Industrial PSTN/Leased Line Modem

  • Industrial PSTN and Leased Line Modem
  • 1 x RS-232 Port (300 bit/s – 115.2 kbit/s, 9-pin D-sub female)
  • 1 x PSTN / Leased Line (300 bit/s – 33.6 kbit/s, Detachable screw terminal)
  • DIN-rail mount installation design
  • IP20-rated PC / ABS body material
  • 20 to 250 VDC / 24 to 240 VAC input power (Wide Range 18 to 300 VDC / 22 to 264 VAC)
  • -25 to +70ºC operating temperature range

0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-25 to 70°C)
  • Relative Humidity (5% to 95% RH)
  • IP protection (IP20)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SATEL COMPACT-4BT Serial Radio Modem
Quickview
SATEL COMPACT-4BT Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL EASY-PROOF Serial Radio Modem
Quickview
SATEL EASY-PROOF Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL COMPACT-PROOF (869 and 865 MHZ) Serial Radio Modem
Quickview
SATEL COMPACT-PROOF (869 and 865 MHZ) Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL COMPACT-PROOF Serial Radio Modem
Quickview
SATEL COMPACT-PROOF Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo GDW-11 Industrial GSM Modem
Quickview
Westermo GDW-11 Industrial GSM Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo GDW-11-485 Industrial GSM Modem
Quickview
Westermo GDW-11-485 Industrial GSM Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo IDW-90 Industrial ISDN Modem
Quickview
Westermo IDW-90 Industrial ISDN Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo LD-01 AC Industrial Line Sharing Modem
Quickview
Westermo LD-01 AC Industrial Line Sharing Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Modems , PSTN/Leased Line Modems , Leased Line/PSTN Modems , PSTN Modems , Leased Line Modems , Industrial Data Communications , Industrial Modems , Westermo TD-36

The TD-36 is an industrial modem designed to allow cost-effective and simple remote access to legacy serial industrial equipment. The AT command-driven modem is capable of synchronizing with a wide range of traditional modem negotiation standards, providing data rates up to 33.6 kbit/s over both PSTN and 2-wire leased line circuits. Designed with remote unmanned industrial locations in mind, the modem can operate in extremes of temperature and electromagnetic fields. The complete galvanic separation of all interfaces ensures earth loops and transients do not interfere with communication. To keep visits to the site to a minimum, a watchdog monitors the modem, ensuring constant readiness, and remote re-configuration means that changes to settings can be handled without a site visit.

Firewalls are not an issue as data does not use the internet, and with call-back security, it is impossible for either accidental or deliberate access to any equipment attached to the modem. The modem is simple to configure using the Westermo TD-tool software; standard commands can easily be entered, and saved configurations downloaded. RS-232 connections can be made using screw connections as well as the standard D-sub.

The modem is designed to be connected to devices with no ability to control dialing, so special functions like data dialing and DTR dialing are provided to enable these devices to automatically establish a connection.


End of Life Product - No Replacement

Please note that the TD-36 has been phased out. You can explore other types of modems in the Modems.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo TD-36 AV Industrial PSTN/Leased Line Modem through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slotNo
Ethernet PortsNo
USBNo
Digital Input and OutputNo
Serial portYes : 1 x RS-232 Port (300 bit/s – 115.2 kbit/s, 9-pin D-sub female)
Alert OutputNo
Band Options-
Cellular Standards-
Cellular Antenna ConnectorsNo
WLAN StandardsNo
WLAN Antenna ConnectorNo
GPS Antenna ConnectorNo
3g modem : Radio specifications
Radio Connection type-
Maximum data transfer speed of 2G-
Maximum data transfer speed of 3G-
Maximum data transfer speed of 4G-
WiFi Radio Frequency-
3g modem : Software Specifications
Routing Redundancy-
VPN-
Firewall-
Time Management-
Management-
3g modem : General
LED IndicatorsTD, RD, RTS, DCD, DTR, REL, LINE, PWR
MTBF-
Operating modePSTN / Leased Line Modem
3g modem : Standards and protocols
ProtocolsTAP, UCP, B103, B212, V21, V22, V22B, V23C, V23 HDX, V32, V32B, V34, Transparent
3g modem : Features and capabilities
Send and receive SMSYes
3g modem : Security
Security and EncryptionNo
AuthenticationNo
3g modem : Power Requirements
Power ConnectorDetachable screw terminal
Power Consumption (Output Adapter)-
Input Voltage20 to 250 VDC / 24 to 240 VAC (Wide Range 18 to 300 VDC / 22 to 264 VAC)
POE SupportNo
Input Current125 mA @ 18 VDC, 15 mA @ 110 VDC, 8 mA @ 250 VDC, 120 mA @ 22 VAC, 35 mA @ 95 VAC
Reverse Polarity ProtectionSupported
3g modem : Buttons
Power buttonNo
ResetYes
3g modem : Physical Characteristics
InstallationDIN-rail mounting
Dimensions55 x 100 x 132 mm (2.16 x 3.93 x 5.19 in)
HousingPC / ABS
Weight0.36 kg
Operating Temperature–25 to +70°C (–13 to +158°F)
Storage Humidity5 to 95% relative humidity
Storage Temperature–40 to +70°C (–40 to +158°F)
Type of UseIndustrial environment
Standards and CertificationsIngress protection: IP20; MIL-HDBK217F; EMC: EN 55024, Immunity IT equipment EN 55022, Emission IT equipment, EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, FCC part 15 Class A, EN 50121-4, Railway signalling and telecommunications apparatus, IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: UL/IEC/EN 60950-1, IT equipment; PSTN: CS 03 Part 1, issue 9 FCC part 68, TIA-968-A ETSI TS103 021-1, ETSI TS103 021-2, ETSI TS103 021-3 AS/ACIF S002, AS/ACIF S006; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6
