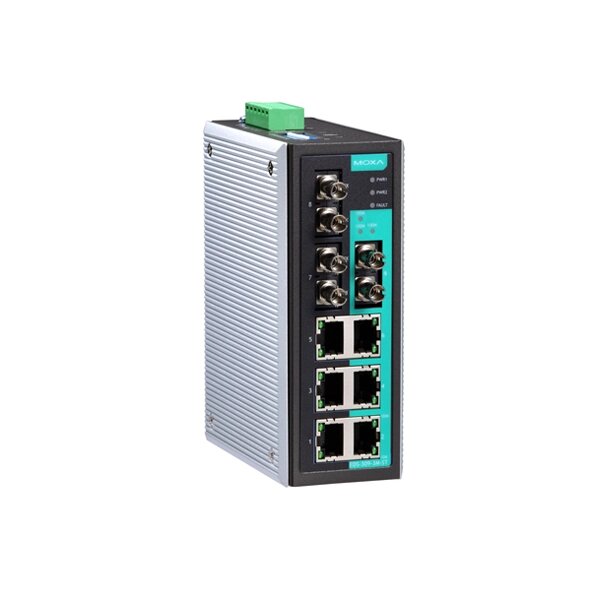

MOXA EDS-309-3M-ST-T Unmanaged Ethernet Switches

MOXA EDS-309-3M-ST-T Unmanaged Ethernet Switches
MOXA EDS-309-3M-ST-T Unmanaged Ethernet Switches
MOXA EDS-309-3M-ST-T Unmanaged Ethernet Switches
MOXA EDS-309-3M-ST-T Unmanaged Ethernet Switches
MOXA EDS-309-3M-ST-T Unmanaged Ethernet Switches
  • 6 x 10/100Mbps T(x) ports (RJ45 connector)
  • 3 x 100BaseFX (multi-mode ST connector)
  • DIN-rail and Wall mounting
  • IP30-rated metal housing
  • 12 to 48 VDC Redundant dual power inputs
  • -40 to 75°C operating temperature
  • Brand: MOXA
  • Model: EDS-309-3M-ST-T
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Hazardous Location (Class 1 Division 2, ATEX Zone 2, IECEx)
  • Oil & Gas
  • Factory Automation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM i800 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM i800 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS940G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS940G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS950G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS950G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
Quickview
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
Quickview
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Industrial Data Communications , Marine Products , Oil & Gas Products , Factory Automation Products , Switches , MOXA EDS-309 Series

The EDS-309 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 9-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.

The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of 0 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-309 switches can be installed easily on a DIN rail or in a distribution box.


You can also find the EDS-309-3M-SC-T, EDS-309-3M-SC, and EDS-309-3M-ST models in the DIN-Rail Ethernet Switches.


Experience the convenient way to purchase the MOXA EDS-309-3M-ST-T Unmanaged Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

switch and hub : Interface
Number of ports9 Ports
10/100Mb RJ45 (Megabit) PortsYes : 6 Ports
10/100/1000Mb RJ45 (Gigabit) PortsNo
100Mb Fiber optic multi mode (Megabit) PortsYes : 3 Ports (ST connectors)
100Mb Fiber optic single mode (Megabit) PortsNo
100Mb SFP Fiber optic (Megabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsNo
10/100Mb (Megabit) POE PortsNo
10/100/1000Mb (Gigabit) POE PortsNo
Other portsYes : 1 x Alarm Contact Channel
switch and hub : Features and capabilities
BackupNo
switch and hub : LED Indicators
LED Per PortYes
switch and hub : Power Requirements
Input Current0.26 A @ 24 VDC
Power Input Plugin ( Redundant )Yes
Input Voltage12/24/48 VDC
Operating Voltage9.6 to 60 VDC
Power Consumption-
switch and hub : General
Fan / FanlessFanless
MTBF2,388,799 hrs
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 1
Switch typeUnManaged
Port AggregationNo
switch and hub : Physical Characteristics
Dimensions53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
HousingMetal
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature-40 to 75°C (-40 to 167°F)
Operation Humidity5 to 95% (non-condensing)
Standards and CertificationsSafety: UL 60950, UL 508, CSA C22.2 No. 60950,, EN 62368-1 (LVD); EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Maritime: DNV; IP30; MIL-HDBK-217F
Storage Temperature-40 to 85°C (-40 to 185°F)
Weight790 g (1.75 lb)
switch and hub : Standards and protocols
Protocols and work standards-
Protocols and management standards-
switch and hub : Package Checklist
Hardware installation guideYes
Power adapterNo
Power cableNo
