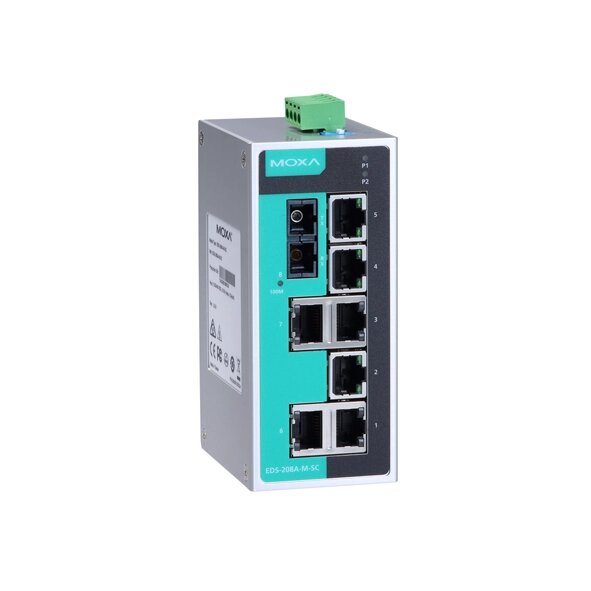

Name: MOXA EDS-208A-S-SC-T Unmanaged Ethernet Switches
Brand: MOXA
Availability: OutOfStock

MOXA EDS-208A-S-SC-T Unmanaged Ethernet Switches

7 x 10/100Mbps T(x) ports
1 x 100BaseFX port (Single-mode SC)
IEEE802.3/802.3u/802.3x support
40 KM Data transmission typical distance on fiber
DIN-rail and Wall mounting
IP30-rated aluminum housing
12 to 48 VDC Redundant dual power inputs
-40 to 75°C operating temperature

Brand: MOXA
Model: EDS-208A-S-SC-T

0 reviews • Write a review

Datasheet User Guide

Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)
IP protection (IP30)
Freefall (IEC 60068-2-31)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Oil & Gas
Factory Automation
Marine
Railway Transportation
Road Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

SIEMENS RUGGEDCOM i800 Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS900 Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS900GP Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS940G Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS950G Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG920P Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Factory Automation Products , Railway Transportation Products , Road Transportation Products , Marine Products , Oil & Gas Products , Switches , MOXA EDS-208A Series

The EDS-208A Series 8-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-208A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.

The EDS-208A switches are available with a standard operating temperature range from -10 to 60°C or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

You can also find the EDS-208A-M-SC , EDS-208A, EDS-208A-M-ST, and EDS-208A-T models in the DIN-Rail Ethernet Switches.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA EDS-208A-S-SC-T Unmanaged Ethernet Switches through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports	8 Ports
10/100Mb RJ45 (Megabit) Ports	Yes : 7 Ports
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	Yes : 1 Port (SC connector)
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	No
switch and hub : Features and capabilities
Backup	No
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	0.11 A @ 24 VDC
Power Input Plugin ( Redundant )	Yes
Input Voltage	12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	2,943,335 hrs
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 1
Switch type	UnManaged
Port Aggregation	No
switch and hub : Physical Characteristics
Dimensions	50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)
Housing	Aluminium
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: UL 508, EN 62368-1 (LVD); EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Maritime: ABS, LR, NK, DNV; IP30;Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	275 g (0.61 lb)
switch and hub : Standards and protocols
Protocols and work standards	-
Protocols and management standards	-
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
