Name: MOXA VPort 26A-1MP Dome IP Camera
Brand: MOXA
Availability: InStock

MOXA VPort 26A-1MP Dome IP Camera

Lens: 3 mm (Wide) to 9 mm (Tele)
1 x 10/100BaseT(X) Port (RJ45 connector)
1 x Audio Input (line-in) and 1 x Audio Output (line-out)
IP66-rated Metal housing with PC dome cover
Panel mount or Wall/Pole mount installation
12 to 24 VDC, 24 VAC input power range
-40 to 50°C operating temperature

Brand: MOXA
Model: VPort 26A-1MP

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 50°C)
Relative Humidity (5 to 95% non-condensing)
Freefall (IEC 60068-2-31)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)
IP protection (IP66)

IP Surveillance
Railway Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , IP Cameras & Video Servers , IP Cameras , Dome IP Cameras , Railway Transportation Products , Industrial IP Surveillance , IP Surveillance Products , IP Surveillance , Cameras , VPort , MOXA VPort 26A-1MP Series

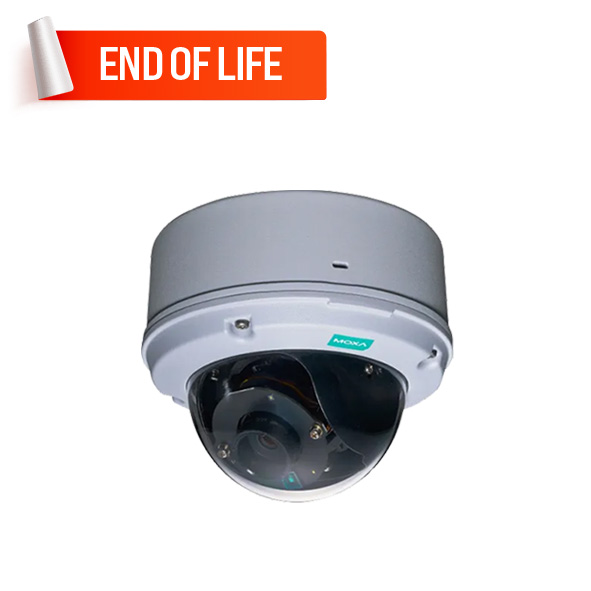

The VPort 26A-1MP is an IK10, IP66-rated, fixed dome HD IP camera with a maximum resolution of 1280 x 800, H.264/MJPEG triple video streams, and a day-and-night camera lens. These robust features make it particularly suitable for harsh, outdoor environments.

End of Life Product - No Replacement

Please note that the VPort 26A-1MP Series has been phased out. You can explore the VPort P06HC-1V Series, VPort 06EC-2V Series, and VPort 06-2 Series in the IP Cameras.

Experience the convenient way to purchase the MOXA VPort 26A-1MP Dome IP Camera in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

IP Cameras : Camera
Sensor	1/2.7-in HD progressive scan CMOS
Lens	3X (controlled manually), f=3 mm (wide) to 9 mm (tele), F1.2 to F2.3, Horizontal angle of view: 112° to 35°, Vertical angle of view: 58° to 20°, Diagonal: 115° to 40°
Camera Angle	Pan: ±175°, Tilt: 0 to 85°, Rotation: Pan: ±180°
ICR Control (for day & night)	Auto (light sensor control) or DI control
Synchronization	Internal
White Balance	ATW/AWB
DNR	Built-in 2D/3D DNR
WDR	Levels 1-8• color: 100 dB, B/W: 110 dB
Flickerless Control	Automatic, 50 Hz, 60 Hz modes
Image Rotation	Flip, Mirror, and 180° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
Black Level Control	High, Medium, Low
AGC (auto gain control)	2X, 4X, 8X, 16X, 32X, 64X
Minimum Illumination	Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Day & Night	Auto/Color/BW; ICR control
Electronic Shutter	Fixed (1/30 to 1/25000 sec)
S/N Ratio	Maximum 50 dB (AGC OFF, DNR ON)
IRIS	Auto, DC drive
IP Cameras : Interface
10/100BaseT(X) Ports	Yes : 1 Port (RJ45 connector)
PoE Ports	No
Digital Input/Output Channels	Yes : 1 x Digital Input Channel (Terminal block connector)
Relay Channels	Yes : 1 Channel (Resistive load: 1 A @ 24 VDC)
IP Cameras : Audio
Audio Inputs	1 line-in with 2-pin terminal block connector
Audio Format	Mono, PCM (G.711)
Audio Outputs	1 line-out with 2-pin terminal block connector
IP Cameras : Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	3, H.264, or MJPEG independent video streams
Video Viewing	DynaStream™ support for changing the video frame rate automatically, CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, Maximum of 5 simultaneous unicast connections, 50 multicast clients
IP Cameras : Network
Protocols	TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP, 802.1X, SSH/HTTPS
IP Cameras : Power Requirements
Input Voltage	12 to 24 VDC or 24 VAC
Input Current	0.5 A @ 12 VDC, 0.23 A @ 24 VAC
Source of Input Power	-
IP Cameras : Alarms
Intelligent Video	Camera tampering detection
Video Motion Detection	3 independently configurable areas
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers and CGI events for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer	24 MB video buffer for JPEG snapshot images
IP Cameras : Security
Password	User level password protection
Filtering	By IP address
Encryption	HTTPS
Authentication	802.1X
IP Cameras : General
MTBF	201,721 hrs
microSD Slot	SDHC
IP Cameras : Physical Characteristics
Housing	IP66 rain and dust protection, IK10 vandal-resistant support, Metal housing, PC dome cover, Transparent PC cover
Dimensions	149 x 120 mm (5.86 x 4.72 in)
Weight	1.39 kg (3.06 lb)
Installation	Panel mounting, Wall mounting (with optional kit), Corner mounting (with optional kit)
Operating Temperature	-40 to 50°C (-40 to 122°F )
Ambient Relative Humidity	5 to 95% (non-condensing)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Standards and Certifications	EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Freefall: IEC 60068-2-31; Safety: UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP66; Telcordia SR332
Altitude	Up to 2000 m
IP Cameras : Minimum Viewing System Requirements
Memory Size	512 MB of memory
Operating System	Windows 7 or above
Browser	Internet Explorer 9.x or above
Multimedia	DirectX 9.0c or above
IP Cameras : Software Development
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers.
Standard	ONVIF Profile S

Datasheet
