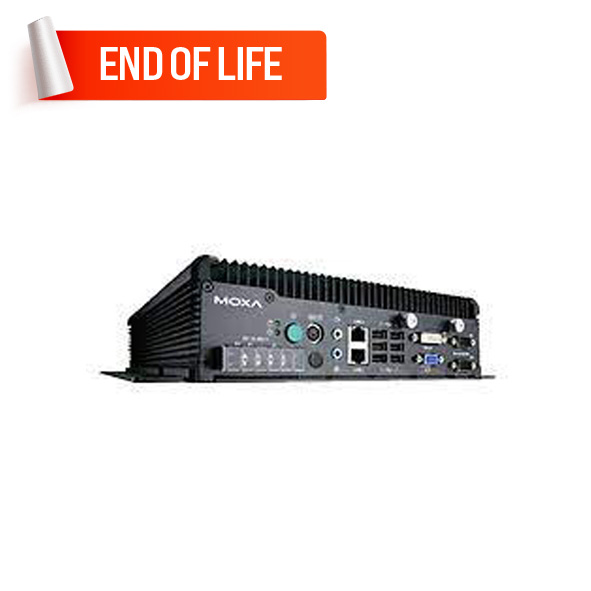

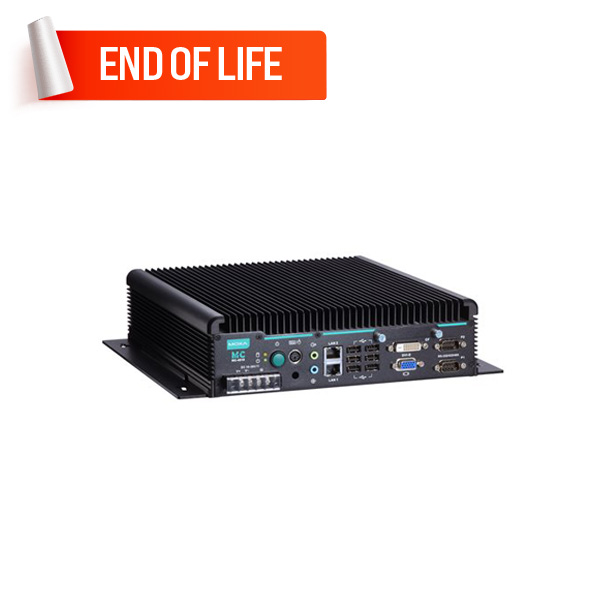

MOXA MC-4510-C23 Industrial Computer

MOXA MC-4510-C23 Industrial Computer
MOXA MC-4510-C23 Industrial Computer
MOXA MC-4510-C23 Industrial Computer
MOXA MC-4510-C23 Industrial Computer
MOXA MC-4510-C23 Industrial Computer

  • CPU Intel Core 2 Duo SP9300
  • 2 x 10/100/1000 Mbps Ethernet ports
  • 2 x RS-232/422/485 Serial ports
  • Aluminum housing, sheet metal
  • 18 to 36 VDC input power range
  • Wallmount installation design
  • -10 to 55°C operating temperature

  • Brand: MOXA
  • Model: MC-4510-C23
0 reviews • Write a review
Datasheet
  • Operating Temperature (-10 to 55°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (50 g @ IEC-68-2-27, half sine wave, 11 ms)
  • Vibration (0.7 g, sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr per axis, 1 grms, random wave, 3-100 Hz, 2.5 hr per axis, 2.1 g, sine wave, 2-50 Hz, 1 Oct./min., 1.5 hr per axis)
  • Factory Automation
  • Railway Transportation
  • Power Utility
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Computing , x86 Computers , Industrial Computing Solutions , Industrial Computers , Compact/Fanless Computers , Computers , Factory Automation Products , Railway Transportation Products , Marine Products , Power Utility Products , MOXA MC-4510-C23 Master Series

The MC-4510-C23 computer is based on the Intel Core 2 Duo mobile processor and comes with 2 RS-232/422/485 serial ports with optical isolation, 2 Gigabit Ethernet ports, 6 USB 2.0 hosts, and a CompactFlash socket. It offers high-performance and versatile peripherals for marine, railway, power, and other industrial applications. The MC-4510-C23’s rugged, fanless design, 1-g anti-vibration, and 15-g anti-shock features make it particularly well-suited for bridge systems in marine applications.

In addition, the compact size and low power consumption features ensure an easy installation and reliable system operation, and the modular design allows easy integration with the panel. Users can easily install Windows 7, Windows XP SP3, or Windows XP Embedded to provide a flexible and friendly environment for system development and application implementation.


End of Life Product - Replacement Available

Please note that the MC-4510-C23 Series has been phased out and replaced by the MC-7400 Series.


Easy World Automation offers the easiest way to buy the MOXA MC-4510-C23 Industrial Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Industrial Computer : Computer
CPUIntel Core 2 Duo SP9300 2.26 GHz, 6 MB for L2 cache
Supported OSWindows 7, Windows XP SP3, Windows XP Embedded (must be installed by the user)
OS (pre-installed)-
System Memory2 GB DDR3 SDRAM onboard (supports DDR3 up to 4 GB)
Graphics ControllerGMA 4500MHD (Intel GS45 built-in)
Storage SlotCompactFlash socket
Industrial Computer : Interface
LAN2 x auto-sensing 10/100/1000 Mbps ports (RJ45)
Magnetic Isolation Protection1.5 KV built-in
Digital Input/Output ChannelsNo
Serial Ports2 x RS-232/422/485 ports, software-selectable (DB9 male)
USBUSB 2.0 host x 6
Expansion SlotMini-PCIe onboard
Industrial Computer : Serial Communication Parameters
Baudrate50 bps to 921.6 Kbps (supports non-standard baudrates; see user’s manual for details)
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow ControlRTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485
Industrial Computer : Serial Signals
RS-232TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422TxD+, TxD-, RxD+, RxD-, GND
RS-485-4wTxD+, TxD-, RxD+, RxD-, GND
RS-485-2wData+, Data-, GND
Industrial Computer : LED Indicators
SystemStorage, Power
LAN10M/Link x 2, 100M/Link x 2 (on connector)
Serial-
Industrial Computer : Power Requirements
Input Voltage18 to 36 VDC (3-pin terminal block)
Input Current-
Power Consumption48.6 W, 1.35 A @ 36 VDC, 1.96 A @ 24 VDC, 2.61 A @ 18 VDC
Industrial Computer : General
Alert Tools-
Automatic Reboot Trigger-
MTBF175,865 hrs
Industrial Computer : Physical Characteristics
Dimensions302 x 70 x 279 mm (11.98 x 2.76 x 10.98 in)
HousingAluminum, sheet metal
Operating temperature-10 to 55°C (14 to 131°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Relative humidity5 to 95% (non-condensing)
Standards and CertificationsSafety: UL 60950-1, IEC 60945 4th. IACS-E10, CCC (GB4943, GB9254, GB17625.1); EMC: EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class B; Marine: IEC 60945 4th. IACS-E10; Green Product: RoHS, cRoHS, WEEE
Weight3.75 kg
MountingWall mounting
