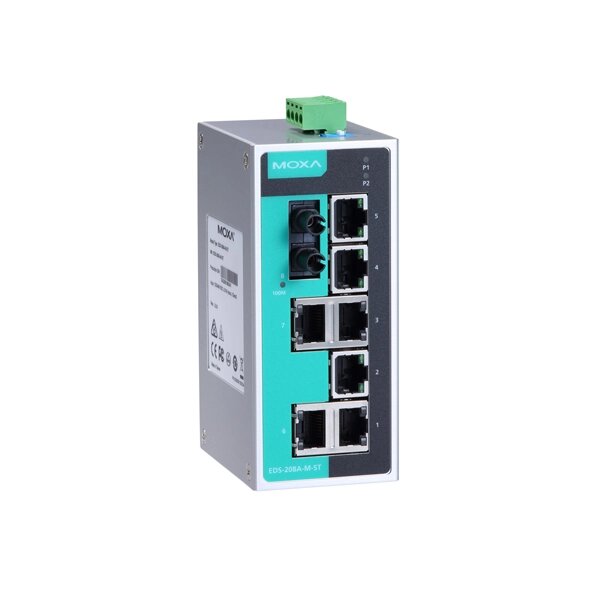

MOXA EDS-208A-M-ST-T Unmanaged Ethernet Switches

MOXA EDS-208A-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-208A-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-208A-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-208A-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-208A-M-ST-T Unmanaged Ethernet Switches
  • 7 x 10/100Mbps T(x) ports
  • 1 x 100BaseFX port (Multi-mode ST)
  • IEEE802.3/802.3u/802.3x support
  • 5 KM Data transmission typical distance on fiber
  • DIN-rail and Wall mounting
  • IP30-rated aluminum housing
  • 12 to 48 VDC Redundant dual power inputs
  • -40 to 75°C operating temperature
  • Brand: MOXA
  • Model: EDS-208A-M-ST-T
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Freefall (IEC 60068-2-31)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Factory Automation
  • Marine
  • Railway Transportation
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO AP-9100 Wireless LAN Access Point
Quickview
Proxim ORiNOCO AP-9100 Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO AP-9100R Wireless LAN Access Point
Quickview
Proxim ORiNOCO AP-9100R Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO QB-9100 Wireless LAN Access Point
Quickview
Proxim ORiNOCO QB-9100 Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL COMPACT-4BT Serial Radio Modem
Quickview
SATEL COMPACT-4BT Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL EASY-PROOF Serial Radio Modem
Quickview
SATEL EASY-PROOF Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Factory Automation Products , Railway Transportation Products , Road Transportation Products , Marine Products , Oil & Gas Products , Switches , MOXA EDS-208A Series

The EDS-208A Series 8-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-208A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.

The EDS-208A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.


You can also find the EDS-208A-M-SC, EDS-208A, EDS-208A-S-SC, and EDS-208A-T models in the DIN-Rail Ethernet Switches.


Easy World Automation offers the easiest way to buy the MOXA EDS-208A-M-ST-T Unmanaged Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports8 Ports
10/100Mb RJ45 (Megabit) PortsYes : 7 Ports
10/100/1000Mb RJ45 (Gigabit) PortsNo
100Mb Fiber optic multi mode (Megabit) PortsYes : 1 Port (ST connector)
100Mb Fiber optic single mode (Megabit) PortsNo
100Mb SFP Fiber optic (Megabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsNo
10/100Mb (Megabit) POE PortsNo
10/100/1000Mb (Gigabit) POE PortsNo
Other portsNo
switch and hub : Features and capabilities
BackupNo
switch and hub : LED Indicators
LED Per PortYes
switch and hub : Power Requirements
Input Current0.11 A @ 24 VDC
Power Input Plugin ( Redundant )Yes
Input Voltage12/24/48 VDC
Operating Voltage9.6 to 60 VDC
Power Consumption-
switch and hub : General
Fan / FanlessFanless
MTBF 2,943,335 hrs
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 1
Switch typeUnManaged
Port AggregationNo
switch and hub : Physical Characteristics
Dimensions50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)
HousingAluminium
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity5 to 95% (non-condensing)
Standards and CertificationsSafety: UL 508, EN 62368-1 (LVD); EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Maritime: ABS, LR, NK, DNV; IP30;Telcordia (Bellcore), GB
Storage Temperature-40 to 85°C (-40 to 185°F)
Weight275 g (0.61 lb)
switch and hub : Standards and protocols
Protocols and work standards-
Protocols and management standards-
switch and hub : Package Checklist
Hardware installation guideYes
Power adapterNo
Power cableNo
