Operating Temperature (0 to 55°C)
Relative Humidity (5 to 95% non-condensing)

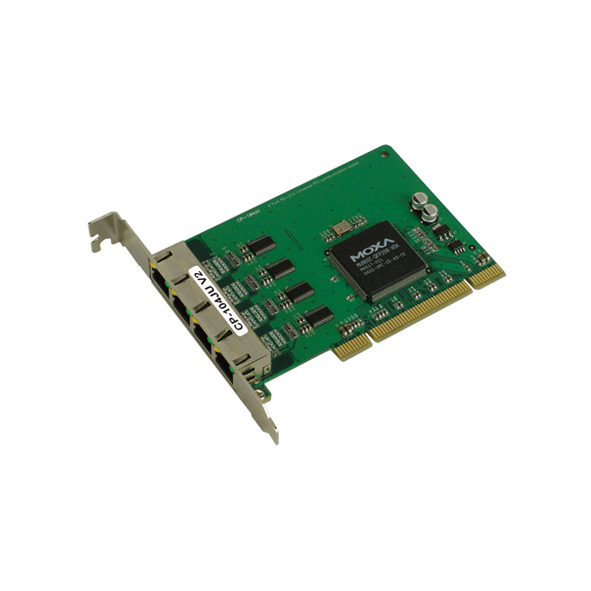

Factory AutomationThe CP-104UL and CP-104JU 4-port universal PCI boards are
designed for POS and ATM applications. They are a top choice of industrial
automation engineers and system integrators, and support many different
operating systems, including Windows, Linux, and even UNIX. In addition, each
of the boards’ RS-232 serial ports supports a fast 921.6 kbps baud rate. The
CP-104UL and CP-104JU provide full modem control signals to ensure
compatibility with a wide range of serial peripherals, and they work with both
3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any
available PC server.
You can also find the CP-104JU-T, CP-104UL-DB9M, and CP-104UL-DB25M models in the Multiport Serial Cards.
Enjoy the ease of online inquiries for the MOXA CP-104JU UPCI Serial Board. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
| MULTIPORT SERIAL BOARDS : SERIAL INTERFACE | |
| Comm. Controller | MU860 (16C550C compatible) |
| Number of Ports | 4 |
| Bus interface | 32-bit Universal PCI |
| Serial Standards | RS-232 |
| Connector | 4 x RJ45 |
| Baudrate | 50 bps to 921.6 kbps |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| Isolation | No |
| MULTIPORT SERIAL BOARDS : SERIAL SIGNALS | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| MULTIPORT SERIAL BOARDS : SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| MULTIPORT SERIAL BOARDS : POWER REQUIREMENTS | |
| Input Current | 135 mA @ 5 VDC |
| Input Voltage | - |
| MULTIPORT SERIAL BOARDS : GENERAL | |
| MTBF | 571,627 hrs |
| LED Indicators | Built-in Tx, Rx LEDs for each port |
| MULTIPORT SERIAL BOARDS : PHYSICAL CHARACTERISTICS | |
| Dimensions | 83 x 120 mm (3.27 x 4.72 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
