Operating Temperature (0 to 55°C)
Relative Humidity (5 to 95% non-condensing)

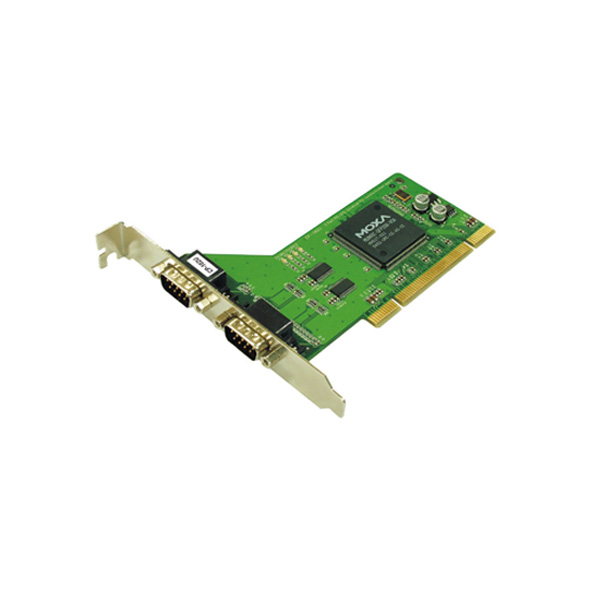

Factory AutomationThe CP-102U and CP-102UL are 2-port universal PCI boards
designed for POS and ATM applications. They are designed especially for
industrial automation engineers and system integrators to support many
different operating systems, including Windows, Linux, and even UNIX. In
addition, each RS-232 serial port supports up to 921.6 kbps baud rate. The
CP-102U and CP-102UL implement full modem control signals to ensure
compatibility with a wide range of serial peripherals, and they work with both
3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any
PC.
Designed for Standard and Compact PCs
The CP-102UL is a low-profile board requiring a 5 VDC power
supply. It is compatible with both a 3.3 V and 5 V PCI bus, allowing the
CP-102UL to be tucked inside compact PCs.
Top Serial Performance
With 30-plus years of experience in serial board design,
Moxa is now concentrating on a new high-performance serial data transmission
chip. The Turbo Serial Engine™ chip provides serial boards with a 128-byte
FIFO, on-chip hardware and software flow control, and burst data mode. With
Turbo Serial Engine™, Moxa is able to offer advanced smart serial boards with
unbeatable transmission performance.
You can also find the CP-102U-T, CP-102UL-DB9M, and CP-102UL-T models in the Multiport Serial Cards.
Explore our extensive range of industrial automation
products such as MOXA CP-102U UPCI Serial Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh),
and Oman). Submit your inquiry to enjoy
the on-time delivery service. Our sales experts will contact you to fulfill all
your industrial automation needs.
| MULTIPORT SERIAL BOARDS : SERIAL INTERFACE | |
| Comm. Controller | MU860 (16C550C compatible) |
| Number of Ports | 2 Ports |
| Bus interface | 32-bit Universal PCI |
| Serial Standards | RS-232 |
| Connector | 2 x DB9 male |
| Baudrate | 50 bps to 921.6 kbps |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| Isolation | No |
| MULTIPORT SERIAL BOARDS : SERIAL SIGNALS | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| MULTIPORT SERIAL BOARDS : SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| MULTIPORT SERIAL BOARDS : POWER REQUIREMENTS | |
| Input Current | 93 mA @ 5 VDC |
| Input Voltage | - |
| MULTIPORT SERIAL BOARDS : GENERAL | |
| MTBF | 574,050 hrs |
| LED Indicators | Built-in Tx, Rx LEDs for each port |
| MULTIPORT SERIAL BOARDS : PHYSICAL CHARACTERISTICS | |
| Dimensions | 80 x 120 mm (3.15 x 4.72 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-4 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/; International Approval: KC; Green Product: RoHS, CRoHS, WEEE; MIL-HDBK-217F |
