Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IPx9K)The MAT-5G-PA-SM-3-06-3m Series is a 3-in-1 panel antenna
suitable for GSM, UMTS, LTE, 5G NR bands, GPS, GLONASS, and BDS systems. The
antenna provides a gain of 6 dBi and is designed to operate in temperatures
ranging from -40 to 85°C.
You can also find the MAT-5G-PA-SM-3-06-3m model in the Antennas.

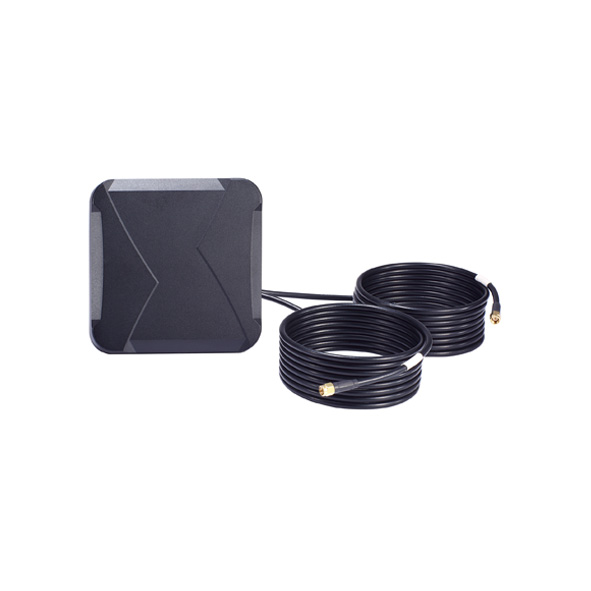

Enjoy the ease of online inquiries for the MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
| Antenna : Antenna Characteristics | |
| Frequency | 617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz |
| Antenna Type | Panel |
| Antenna Gain | 1.55 dBi @ 617 to 698 MHz (5G NR n71), 4.32 dBi @ 698 to 824 MHz (LTE 700), 5.18 dBi @ 824 to 960 MHz (GSM 850/900), 6.69 dBi @ 1427 to 1510 MHz (5G NR n74, 75, 76), 6.80 dBi @ 1710 to 1880 MHz (DCS), 7.10 dBi @ 1850 to 1990 MHz (PCS), 7.10 dBi @ 1920 to 2170 MHz (UMTS1), 5.41 dBi @ 2300 to 2690 MHz (LTE 2600) |
| Connector | SMA (male) |
| Impedance | 50 ohms |
| HPBW/Horizontal | - |
| HPBW/Vertical | - |
| Polarization | Linear, Vertical |
| Power Handling | - |
| V.S.W.R. | - |
| Antenna : Physical Characteristics | |
| Dimensions | 135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Length | - |
| Cable Length | 3 m |
| Weight | - |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| Housing | Plastic |
| Installation | Screw mount |
| IP Rating | IPx9K |
