Operating temperature (0 to 50°C)
Relative Humidity (<85 % non-condensed)
Shock (10G 11ms half sine)
Vibration (0,7G RMS)iX TxX operator panels Ranging from 21-inch industrial PCs to ultra-compact 4-inch panels, all models have high-performance CPUs and the latest screen technology.
Enjoy the ease of online inquiries for

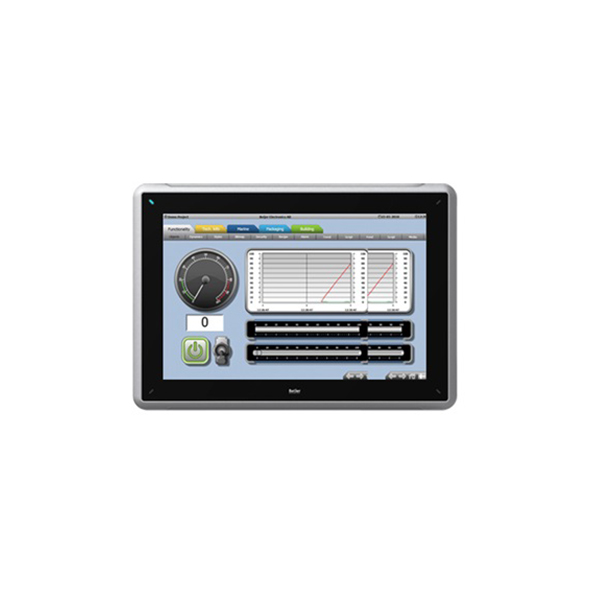

the Beijer iX T15C - C23 graphic touch HMI. You can submit your inquiry on our website and get the most friendly
communication with our experts to choose high-quality industrial automation
products at a reasonable price from our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
| Operator panels : Communication serial | |
| Number of serial ports | 2 Port combined 9pin DSUB with dual pinout |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS 485 |
| Serial port 3 | RS 232 |
| Serial port 4 | RS 485 |
| iX TxX : Ethernet communication | |
| Ethernet port 2 | 1x10/100/1000 Base-T (shielded RJ45) |
| Operator Panels : Ethernet communication | |
| Number of ethernet ports | 2 |
| Ethernet port 1 | 1x10/100/1000 Base-T (shielded RJ45) |
| iX TxX : Physical Characteristics | |
| Operating temperature | 0 to + 50 °C |
| Operator Panels : Power Requirements | |
| Input voltage | +24 VDC (18 - 32 VDC) |
| Power consumption (max) | 120 W |
| Input fuse | Internal DC fuse, 10A slow |
| X2 control : Display | |
| Backlight | LED backlight |
| Operator Panels : Display | |
| Size diagonal | 15.4 inch |
| Resolution | 1280 X 800 pixels |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 450 cd/m2 |
| Backlight dimming | Industrial |
| Display type | TFT LCD |
| Operator Panels : Physical Characteristics | |
| Mechanical size | 410 x 286 x 83 mm |
| Touch type | Resistive type |
| Weight | 5.4 kg |
| Housing | Powder coated aluminum |
| Storage temperature | -20 to + 70 °C |
| Shock | 10G 11ms half sine |
| Vibration | 0,7G RMS |
| Sealing front | IP65 |
| Sealing back | IP20 |
| Humidity | <85 % non-condensed |
