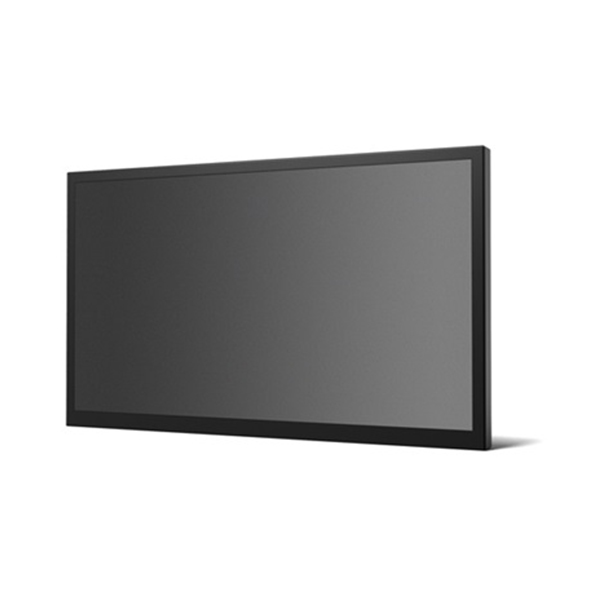

MarineThe Wave II Monitor series includes a range of well-designed, rugged LED monitors with all the required marine approvals. The design is based on extensive feedback from shipowners, shipyards, system integrators, and navigators working on the bridge.
You can explore our wide range of
products and enquire about the Beijer Wave II 27" (16:9) Monitor for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
| X2 extreme : Communication serial | |
| Number of serial ports | 3 Ports |
| Serial port 1 | RS 232 |
| Serial port 2 | RS422/RS485 terminal block |
| Serial port 3 | RS422/RS485 terminal block |
| X2 extreme : Ethernet communication | |
| Number of ethernet ports | |
| Ethernet port 1 | 1 port |
| Ethernet port 2 | No |
| X2 extreme : Expansion interface | |
| SD card | micro SD |
| USB | 2xUSB 2.0 / 1 x USB Type B (touch only) |
| Input fuse | - |
| X2 extreme : Power Requirements | |
| Input voltage | 90-264 VAC (IEC inlet) |
| Power consumption (max) | 40W |
| X2 extreme : Display | |
| Size diagonal | 27" diagonal |
| Resolution | 1920 x 1080 pixels |
| Backlight | LED backlight |
| Backlight life time | 50000 hours |
| Backlight brightness | 300 cd/m2 |
| Backlight dimming | Marine optimized dimming, 0 - 100% |
| Display type | TFT-LCD with LED backlight |
| X2 extreme : Physical Characteristics | |
| Mechanical size | 631 (W) x 377,6 (H) x78 (D) mm |
| Mounting | Flush mount |
| Number of touches | No |
| Touch type | No |
| Cut-out size | Depends on selected mounting option, see datasheets |
| Weightt | 8.5 kg |
| Housing | RAL 9005 fine structure |
| Operating temperaturee | -15°C to +70°C |
| Storage temperature | -15°C to +70°C |
| Shock | - |
| Vibration | 0,7g, according to IEC 60068-2-6, Test Fc |
| Sealing front | IP42 |
| Sealing back | - |
| Humidity | - |
| Standards and Certifications | CE, Marine : DNV GL; IEC 60945; IEC 61174 (ECDIS); IEC 60936 (radar) |
| Marine | DNV GL, IEC 60945, IEC 61174 (ECDIS), IEC 60936 (radar) |
