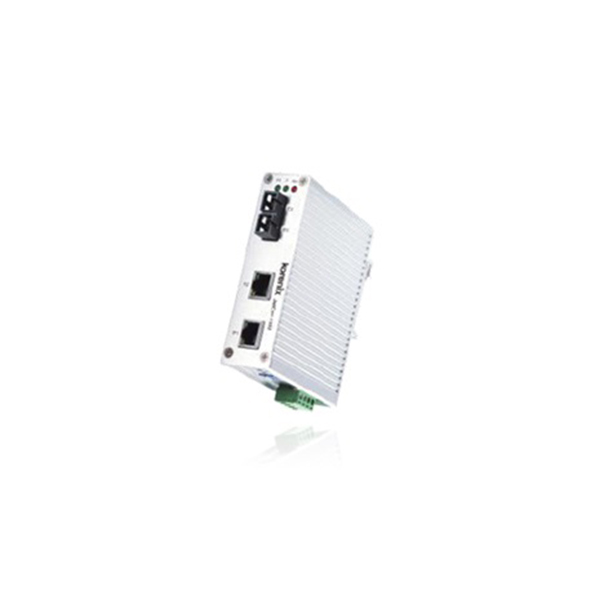

Name: Beijer JetCon 1302-M fiber media converter
Brand: BEIJER
Availability: InStock

Beijer JetCon 1302-M fiber media converter

1 RJ45 to 1 multi-mode SC fiber converter
Link loss forwarding
Low latency for EtherCAT
-10~70 °C operating temperature

Brand: BEIJER
Model: JetCon 1302-M

0 reviews • Write a review

Datasheet

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

JetCon 1302 is not only a compact 2-port RJ45 to fiber media converter but also a slim 3-port switch which is an ideal model that would physically fit in a network environment with limited space. The feature of the fault relay alarm aims to inform you whenever there is any port link down. Just move up the DIP switch, and the fault relay alarm will start functioning! Single-mode and Multimode fiber optic ports meet your needs for long-distance transmission of up to 30.

JetCon 1302 can be easily wall-mounted as well as be mounted directly on the DIN rail. AC 18V~27V or DC 18V~32V is available for different operating environments. With an IP 31 rigid and compact aluminum case, 1.5KV Hi-Pot isolation protection, CE/FCC regulatory approvals, and a 5-year global warranty, the JetCon 1302 series is your reliable choice for hazardous applications.

Inquire about the Beijer JetCon 1302-M fiber media converter, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

eth to fiber : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 2 x 10/100 Base-TX with Auto MDI/MDI-X, Auto-Negotiation functions
10/100/1000Mb RJ45 (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	Yes : 1 x Duplex SC
100Mb Fiber optic single mode (Megabit) Ports	No
1000Mb Fiber optic single mode (Gigabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
M12 port	No
Alert Output	-
eth to fiber : Standards and protocols
Protocols and work standards	IEEE802.3 10Base-T,IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX,IEEE802.3x flow control
eth to fiber : General
Maximum cable length for data transfer	2KM
MTBF	632,171 Hours, MIL-HDBK-217F GB standard
eth to fiber : Power Requirements
Power consumed	4.8Watts @ DC 24V
Type of power input	2 pins terminal block
Protection against reverse voltage	Yes
Protection against overflow	No
eth to fiber : LED Indicators
LNK/ACT	Yes
Power	Yes
eth to fiber : Buttons
DIP Switch	Yes : DIP 1~3: Enable or disable port link down alarm for copper port 1/2; fiber port 3, On: Enable port link down alarm, Off: Disable port link down alarm
eth to fiber : Physical Characteristics
Standards and Certifications	EMI: FCC Class A; CE/EN55022 Class A, EMC Immunity Interface: EN61000-4-2; EN61000-4-3; EN61000-4-4; EN61000-4-5; EN61000-4-6; EN61000-4-8; EN61000-4-11, Shock: IEC60068-2-27, Free Fall: IEC60068-2-32, Vibration: IEC60068-2-6
Housing	IP31 protection, aluminum case
Dimensions	111.8mm(H) x 30mm (W) x 98.2mm (D)
Weight	292g
Operating Temperature	-40 ~ 80OC
Storage Temperature	-40 ~ 80OC
Operation Humidity	0%~ 95% non-condensing
Installation	DIN-Rail mount

Datasheet
