Operating Temperature (-10 to 40°C)
Relative Humidity (max. 95% without condensation)
IP protection (IP55)BFI P2 combines premium control of both standard induction motors and permanent magnet motors with high performance, reliability, and ease of use. Extensive I/O and communications interface capabilities ensure the drive can be integrated quickly and efficiently into a wide variety of control systems and the simple parameter structure with carefully selected factory settings provides fast and easy commissioning.
You can explore our wide range of

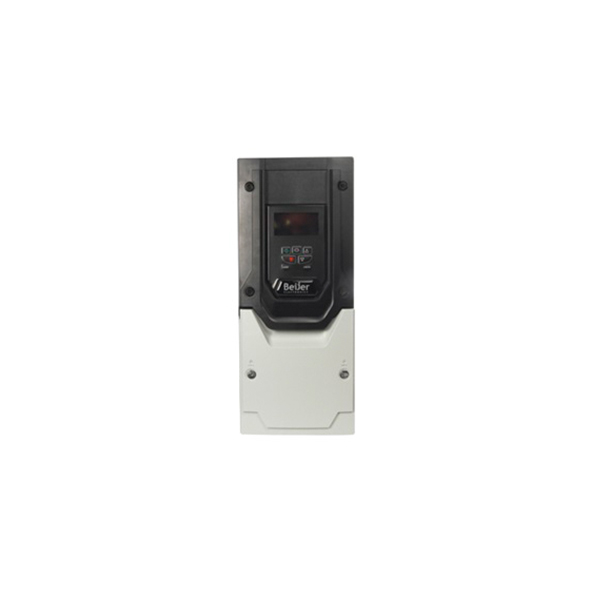

products and enquire about the Beijer BFI-P2-44-0240-3F4N-TN Frequency inverter for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
| frequency inverters : Output ratings | |
| Output voltage | 3 x 400 VAC |
| Rated motor current | 24 A |
| Overload capacity | 150% for 60 seconds, 200% for 4 seconds |
| Output frequency | 0 – 500Hz, 0.1Hz resolution |
| frequency inverters : Input ratings | |
| Supply voltage | 380 – 480VAC ± 10% |
| Supply frequency | 48 – 62Hz |
| Power cycles | 120 per hour maximum, evenly spaced |
| frequency inverters : Communication | |
| Modbus RTU | 9.6 - 115.2 kbps selectable (8N1, 8N2, 8E1, 8O1) |
| BACnet MS/TP | No |
| Modbus TCP | Yes, external option |
| Ethernet IP | Yes, external option |
| EtherCat | Yes, external option |
| Profinet IO | Yes, external option |
| Device Net | Yes, external option |
| CC-Link | Yes, external option |
| CAN open | 125-1000 kbps |
| frequency inverters : Display | |
| Programmable display | Yes |
| Multi language OLED display | Yes |
| External OLED display | Yes |
| LED display | No |
| frequency inverters : HVAC | |
| PID-control | Yes with sleep/wake up functionality |
| Spin start | Yes |
| Pump dry protection | No |
| Stir function | No |
| Motor pre-heat | No |
| Broken impeller and broken belt detection | No |
| Automatic cleaning for pumps | No |
| Bypass control | Yes |
| Fire mode | No |
| frequency inverters : Control terminals | |
| Power supply | 100 mA @ 24 VDC, 20 mA @ 10 VDC |
| Inputs | 5 in total, 3 Digital, 2 Analog or Digital, selectable |
| Digital inputs | 10-30 V DC, PNP, Response time: < 4 msec, Internal or external supply |
| Analog inputs | Resolution:12 bit, Response time: <4 msec; Accuracy: <± 2% of full scale, Adjustable scaling |
| Relay outputs | Maximum Voltage: 250 VAC, 30 VDC Switching Current Capacity: 6A AC, 5A DC |
| Analog outputs | 0 to 10 Volt, 0 to 20mA, 4 to 20mA |
| Outputs | 4 total, 2 relays, 2 analog or digital |
| frequency inverters : Standard compliances | |
| Conformance | CE, UL, cUL |
| Marine approvals | DNV |
| Earth leakage current | EN 61800-5-1: 2007. Test techniques EN 60990:2000. 1x230 VA < 2,5 mA, 3x400VAC < 4,65 during runing |
| Dielectric strength | 61800-5-1: 2007 |
| Surge | EN 61800-3: 2004+A1-2012. Test techniques EN 61000-4-5:2006. |
| frequency inverters : Physical Characteristics | |
| IP class | IP55 |
| Physical size | Size 4 |
| Measurements (H x W x D) | 450 mm x 171 mm x 252 mm |
| Weight | 11.5 kg |
| Built in Main switch, control switch and potentiometer | No |
| Conformal coated PCBs | Yes |
| Operation temperature | -10 to 40 °C |
| Humidity | 95% max, non-condensing |
