Operating Temperature (-10 to 40°C)
Relative Humidity (max. 95% without condensation).png)
IP protection (IP66)BFI H2 includes IP20, IP55, and IP66 inverters for HVAC, maritime, and other industrial applications, and set a new cost-competitive standard for dedicated fan and pump control. Ease-of-use and innovative design combined with robust performance provide powerful flow control and reliability in a compact drive.
You can explore our wide range of

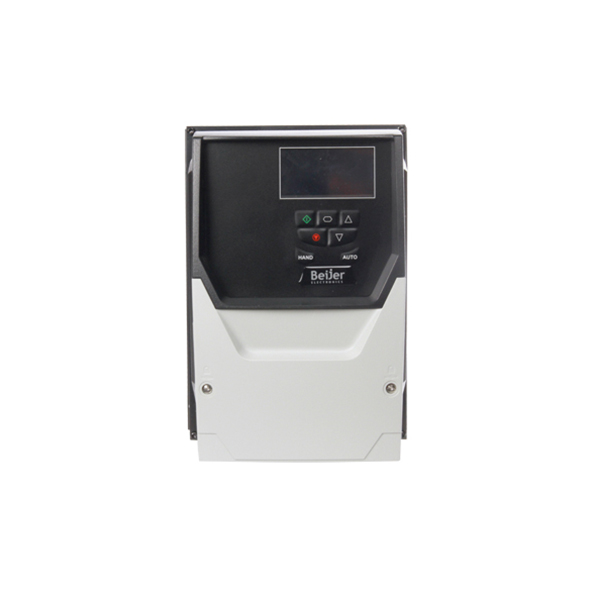

products and enquire about the Beijer BFI-H2-22-0043-1F1X-TN Frequency inverter for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
| frequency inverters : Output ratings | |
| Output voltage | 3 x 230 VAC |
| Rated motor current | 4.3 A |
| Overload capacity | 110% for 60 seconds, 125% for 3 seconds |
| Output frequency | 0 – 120Hz, 0.1Hz resolution |
| frequency inverters : Input ratings | |
| Supply voltage | 200 – 240VAC ± 10% |
| Supply frequency | 48 – 62Hz |
| Power cycles | 120 per hour maximum, evenly spaced |
| frequency inverters : Communication | |
| Modbus RTU | 9.6 - 115.2 kbps selectable (8N1, 8N2, 8E1, 8O1) |
| BACnet MS/TP | Built-in |
| Modbus TCP | Yes, the external option |
| Ethernet IP | Yes, the external option |
| EtherCat | Yes, the external option |
| Profinet IO | Yes, the external option |
| Profibus DP(DPV1) | Yes, the external option |
| Device Net | Yes, the external option |
| CC-Link | Yes, the external option |
| CAN open | No |
| frequency inverters : Display | |
| Programmable display | Yes |
| Multi language OLED display | Yes |
| External OLED display | Yes |
| LED display | No |
| frequency inverters : HVAC | |
| PID-control | Yes with sleep/wake up functionality |
| Spin start | Yes |
| Pump dry protection | Yes |
| Stir function | Yes |
| Motor pre-heat | Yes |
| Broken impeller and broken belt detection | Yes |
| Automatic cleaning for pumps | Yes |
| Bypass control | Yes |
| Fire mode | Yes |
| frequency inverters : Control terminals | |
| Power supply | 100 mA @ 24 VDC, 20 mA @ 10 VDC |
| Inputs | 5 in total, 3 Digital, 2 Analog or Digital, selectable |
| Digital inputs | 10-30 V DC, PNP, Response time: < 4 msec, Internal or external supply |
| Analog inputs | Resolution:12 bit, Response time: <4 msec; Accuracy: <± 2% of full scale, Adjustable scaling |
| Relay outputs | Maximum Voltage: 250 VAC, 30 VDC Switching Current Capacity: 6A AC, 5A DC |
| Analog outputs | 0 to 10 Volt, 0 to 20mA, 4 to 20mA |
| Outputs | 4 total, 2 relays, 2 analog or digital |
| frequency inverters : Standard compliances | |
| Conformance | CE, UL |
| Marine approvals | DNV-GL |
| Earth leakage current | EN 61800-5-1: 2007. Test techniques EN 60990:2000. 1x230 VA < 2,5 mA, 3x400VAC < 4,65 during runing |
| Dielectric strength | 61800-5-1: 2007 |
| Surge | EN 61800-3: 2004+A1-2012. Test techniques EN 61000-4-5:2006. |
| frequency inverters : Physical Characteristics | |
| IP class | IP66 |
| Physical size | Size 2 |
| Measurements (H x W x D) | 257 mm x 188 mm x 260 mm |
| Weight | 5.5 kg |
| Built in Main switch, control switch and potentiometer | No |
| Conformal coated PCBs | No |
| Operation temperature | -10 to 40 °C |
| Humidity | 95% max, non-condensing |
