Name: Beijer ST-1214 Digital input module
Brand: BEIJER
Availability: InStock

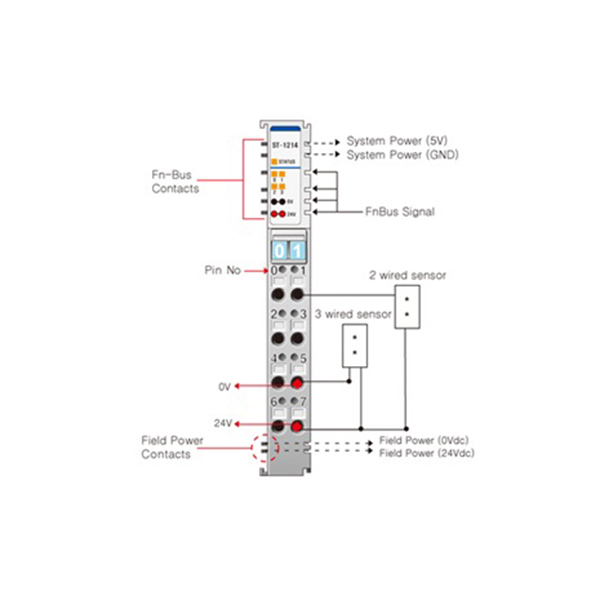

Beijer ST-1214 Digital input module

4 digital inputs
12/24 VDC
Positive logic (PNP)

Brand: BEIJER
Model: ST-1214

0 reviews • Write a review

Datasheet

Operating Temperature (-20 to 55°C)
Relative Humidity (5 to 90% non-condensing)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

The FnIO S series is a micro modular remote IO-system from Crevis, which contains a wide selection of digital and analog modules as well as special modules. Together with a selected bus/ node module, the system is easily combined to make standalone IO-nodes.

The IO-system, which has an IP20 enclosure, is installed on a standard 35 mm DIN rail. Stable communication between the modules in the node is guaranteed via a unique sliding contact system.

A standard IO module is only 12 mm in width, and when using 16 channel IO modules a complete node is made up of 64 IOs of only 90 mm in width.

The FnIO S series supports known bus systems such as Profibus DP/V1, CC-Link, CANopen, Modbus-TCP, Modbus-RS232, and Modbus-RS485.

Easy World Automation offers the easiest way to buy the Beijer ST-1214 Digital input module in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Beijer module : Power Requirements
Current consumption	35 mA @ 5.0V DC
Beijer module : Input specification
Input type	Sink Type (Positive Logic)
Number of inputs	4
ON -state voltage	12/24 V DC (10.2V-28.8V)
OFF-state voltage	Max. 5V DC
ON-state current	Max. 6 mA @28.8VDC
Nominal input impedance	Typical 5.1 kΩ
Input delay	OFF to ON: Max. 3ms / ON to OFF: Max. 3ms
Filtering time	Typical 1.5ms (software filtering)
Beijer module : Output specification
I/O connector	Removable terminal block, cage clamp
Beijer module : Physical Characteristics
Mechanical size	12 mm x 99 mm x 70 mm
Module weight	70 g
Mounting	35mm DIN rail
System indicators	4 green input state, 1 green/red Bus state
Humidity	5-90% non-condensing
Operating temperature	-20° to + 55°C
Storage temperature	-40° to + 85°C
