Relative Humidity (5 to 95% non-condensing)

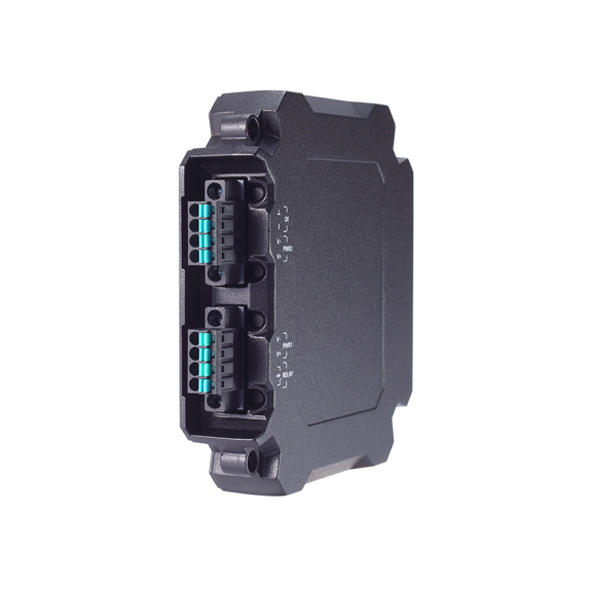

Vibration (ISTA 1A)The PWR-100 Power Module Series is designed for Moxa’s
EDS-4000/G4000 Series switches. The power modules allow supported switches to
use 12/24/48 VDC or 110/220 VDC/VAC.
You can also find the PWR-101-LV-BP-I, PWR-103-LV-VB-I, and PWR-105-HV-I models in the Power supplies.
Enjoy the ease of online inquiries for the MOXA PWR-100-LV Power Module. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
| Power supply : Power Requirements | |
| Input | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Output | - |
| Over-voltage Protection | - |
| Overload Protection | Supported |
| Reverse Polarity Protection | Supported |
| Power supply : Physical Characteristics | |
| Dimensions | 103 x 98 x 26.6 mm (4.06 x 3.86 x 1.02 in) |
| Housing | - |
| Weight | 142 g (0.31 lb) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | The operating temperature is dependent on the EDS-4000/G4000 switch the module is installed in. Please refer to the respective EDS-4000/G4000 Series datasheet for more information. |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Installation | Rotatable design for versatile installation |
| Standards and Certifications | Safety: EN 62368-1 (LVD); EMI: FCC Part 15 Subpart B Class A; EMC: EN 55032/35, EN 61000-6-2/-6-4; EMS: EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 4; Vibration: ISTA 1A |
| MTBF | - |
| Power supply : Supported Series | |
| Supported Series | EDS-4008 Series, EDS-4009 Series, EDS-4012 Series, EDS-4014 Series, EDS-G4008 Series, EDS-G4012 Series, EDS-G4014 Series (Determined for the -LV/-LV-T models) |
