Name: MOXA MGate W5108 Industrial Ethernet Gateways
Brand: MOXA
Availability: InStock

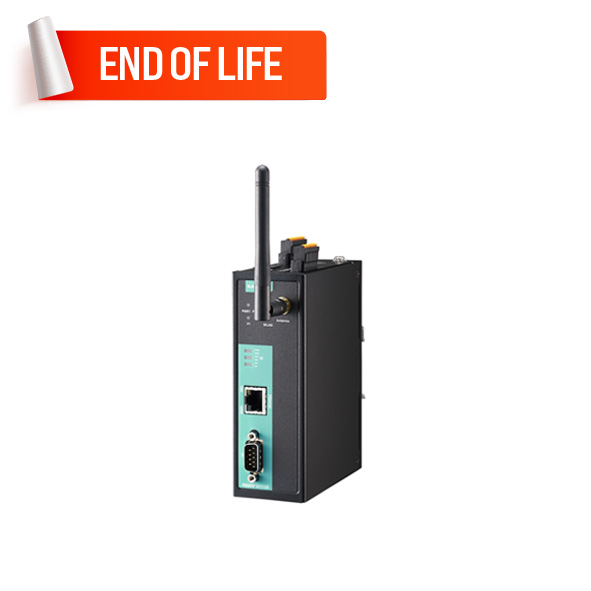

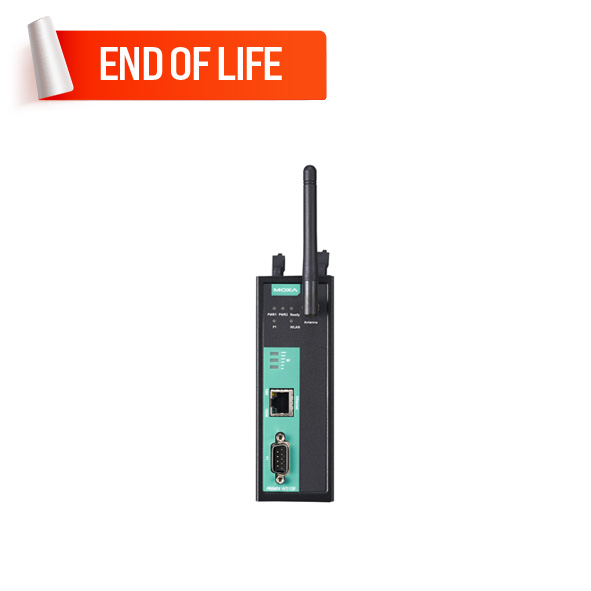

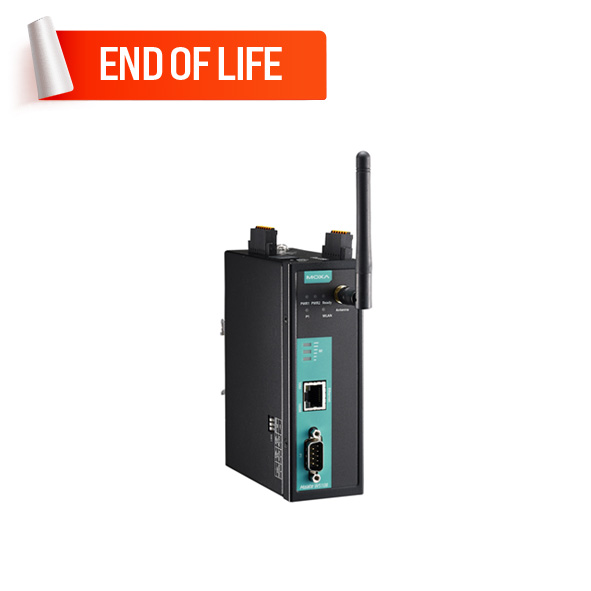

MOXA MGate W5108 Industrial Ethernet Gateways

IEEE 802.11a/b/g/n wireless Modbus/DNP3 gateway
1 x 10/100BaseT(X) Ports (RJ45 connector)
1 x RS-232/422/485 Serial port (DB9 male connector)
2 kV Isolation protection for serial ports
IP30-rated Metal body design
9 to 60 VDC Redundant dual power inputs
0 to 60°C wide operating temperature

Brand: MOXA
Model: MGate W5108

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6, IEC 60068-2-64)
IP protection (IP30)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Oil & Gas
Factory Automation
Power Utility

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Protocol Gateways , Industrial Ethernet Gateways , Ethernet Gateways , Modbus TCP Gateways , TCP Gateways , Industrial Data Communications , Industrial Serial Connectivity , Industrial Gateways , Fieldbus Solutions , Oil & Gas Products , Factory Automation Products , Power Utility Products , Modbus Gateways , Modbus , Gateways , MOXA MGate W5108/W5208 Series

The MGate W5108/W5208 gateways are an ideal choice for connecting Modbus serial devices to a wireless LAN, or DNP3 serial to DNP3 IP through a wireless LAN. With IEEE 802.11a/b/g/n support, you can use fewer cables in difficult wiring environments, and for secure data transmission, the MGate W5108/W5208 gateways support WEP/WPA/WPA2. The gateways’ rugged design makes them suitable for industrial applications, including oil and gas, power, process automation, and factory automation.

Modbus Traffic Monitor

The MGate W5108/W5208 gateways support Modbus Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave ID and register address, or incorrect hardware parameters such as baud rate and interface. With Modbus Protocol Traffic Monitor support, you can check the captured data and easily identify the root cause.

A Variety of Maintenance Functions

The MGate W5108/W5208 Series of gateways support a web console and Telnet console for remote maintenance. Each gateway also supports encryption commutation functions such as HTTPS and SSH to prevent security issues. In addition, log functions are provided in the firmware to record connection events and Modbus for maintenance events. Users can review log data remotely through the web console.

End of Life Product - No Replacement

Please note that the MGate W5108/W5208 Series has been phased out. You can explore the MGate MB3170/MB3270 and MGate MB3660 Series in the Industrial Ethernet Gateways.

Inquire about the MOXA MGate W5108 Industrial Ethernet Gateways, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

industrial gateway : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
Magnetic Isolation Protection	1.5 kV (built-in)
Other ports	No
Protocols	Ethernet: DNP3 TCP Master, DNP3 TCP Outstation, Modbus TCP Client (Master), Modbus TCP Server (Slave); Serial: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, DNP3 Serial Master, DNP3 Serial Outstation
industrial gateway : Serial port specifications
Number of Ports	1 Port
Console Port	No
Connectors	DB9 male
Serial Standards	RS-232/422/485, software selectable
Isolation	Yes : 2 kV (built-in)
industrial gateway : Serial Communication Parameters
Data Bits	7, 8
Stop Bits	1, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS Toggle (RS-232 only), RTS/CTS, XON/XOFF
Baudrate	50 bps to 921.6 kbps
industrial gateway : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
industrial gateway : General
Management	ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MTBF	668,518 hrs
Industrial Gateway : Memory
microSD Slot	Up to 32 GB (SD 2.0 compatible)
industrial gateway : Power Requirements
Input Current	202 mA @ 24 VDC
Input Voltage	9 to 60 VDC (Redundant dual power inputs)
Power Connector	Terminal block
industrial gateway : Security
Security	No
Authentication	WEP encryption ( 64 or 128 bit), WPA / WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
Encryption	128-bit TKIP/AES-CCMP EAP-TLS, PEAP/GTC, PEAP/MD5, PEAP/MSCHAPV2, EAP-TTLS/PAP, EAP-TTLS/CHAP, EAP-TTLS/MSCHAP, EAP-TTLS/MSCHAPV2, EAP-TTLS/EAP-MSCHAPV2, EAP-TTLS/EAP-GTC, EAP-TTLS/EAP-MD5, LEAP
industrial gateway : Physical Characteristics
Dimensions	45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)
Standards and Certifications	Safety: EN 60950-1, UL 508; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2, IECEx; Radio Frequency: EN 300 328, EN 301 489-1/17, EN 301 893; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332
Housing	Metal
Operating Temperature	0 to 60°C (32 to 140°F)
Weight	589 g (1.30 lb)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Installation	-
